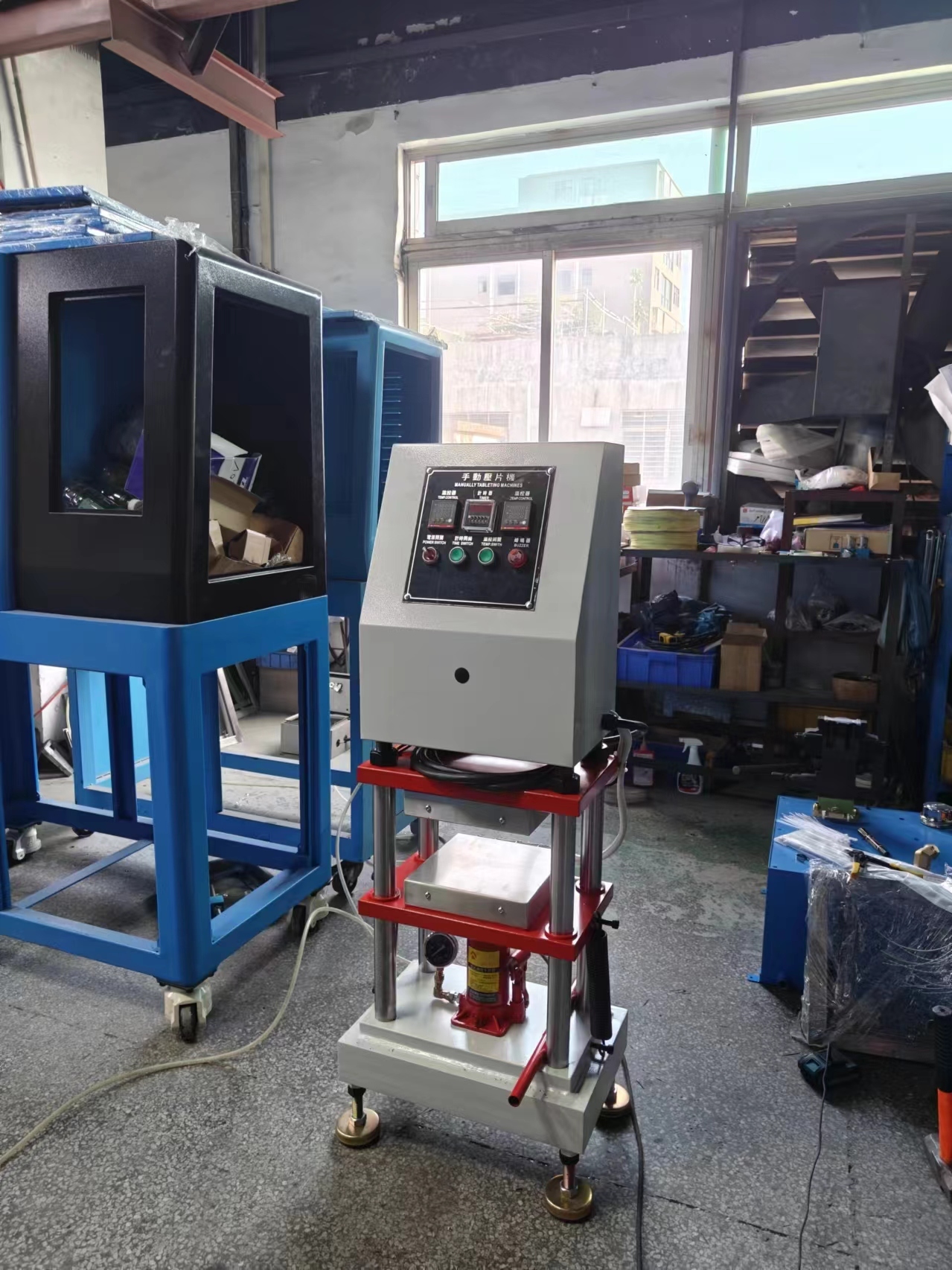

10Ton 25Ton 30Ton Manual Laboratory Hot Hydraulic Rubber Plastic Platen Vulcanizing Press Machine
10Ton 25Ton 30Ton Manual Laboratory Hot Hydraulic Rubber Plastic Platen Vulcanizing Press Machine
10Ton 25Ton 30Ton Manual Laboratory Hot Hydraulic Rubber Plastic Platen Vulcanizing Press Machine
10Ton 25Ton 30Ton Manual Laboratory Hot Hydraulic Rubber Plastic Platen Vulcanizing Press Machine
10Ton 25Ton 30Ton Manual Laboratory Hot Hydraulic Rubber Plastic Platen Vulcanizing Press Machine
10Ton 25Ton 30Ton Manual Laboratory Hot Hydraulic Rubber Plastic Platen Vulcanizing Press Machine
10Ton 25Ton 30Ton Manual Laboratory Hot Hydraulic Rubber Plastic Platen Vulcanizing Press Machine
10Ton 25Ton 30Ton Manual Laboratory Hot Hydraulic Rubber Plastic Platen Vulcanizing Press Machine
Specifications
Model Number :
ZL-3022B
Temperature range :
Normal temperature to 300°C
Brand Name :
ZL
Name :
Manual Laboratory Hot Hydraulic Press Machine
Packaging Details :
wooden case packaging
MOQ :
1 set
Delivery Time :
5-10 work days
Volume :
420×450×1200 mm(W×D×H)
Payment Terms :
L/C,D/A,D/P,T/T
Weight :
About 260kg
Price :
UDS2000-3000
Power Source :
AC380V, 16A
Supply Ability :
50 sets
Certification :
CE,ISO
Cylinder Stroke :
Max 160mm
Place of Origin :
Guangdong, China
Pressure Gauge :
0～200kg/sq.cm
Description
10Ton 25Ton 30Ton Manual Laboratory Hot Hydraulic Rubber Plastic Platen Vulcanizing Press Machine
Product Overview

This manual hot hydraulic vulcanizing press is professional laboratory compression molding and vulcanization equipment specifically developed for rubber, plastic, silicone, polymer materials, and new composite material research. Ideal for material testing laboratories and factory R&D departments, the machine features manual hydraulic pressure boosting structure, high-precision heating platens, and intelligent temperature control system.

It completes material hot pressing, vulcanization, molding, sheet pressing, sample shaping, and performance pre-testing in one process. With optional multi-tonnage models, it fully meets different experimental pressure requirements from small sample molding to high-pressure material compression tests.

Core Performance & Structural Advantages
  • Thickened high-strength steel frame ensures stable structure with no deformation under long-term high-pressure conditions
  • Precision hydraulic manual pressure system provides stable, uniform pressure output
  • High-precision digital temperature controller with real-time monitoring and precise adjustment
  • Heating platen made from high-quality alloy steel with anti-corrosion and high-temperature resistance treatment
  • Simple manual operation mode requires no complex programming
  • Compact design with small floor space, safe and labor-saving operation
Applicable Materials

Widely applicable to natural rubber, synthetic rubber, silicone rubber, foam rubber, TPU, EVA, PVC, PP, PE and other plastic materials, as well as polymer composite materials, new energy insulating materials, adhesive films and thermoplastic materials. Supports vulcanization testing, hot pressing molding, sheet sample making, compression performance testing, formula comparison testing and material process optimization.

Technical Parameters
Parameter Specification
Capacity 10T/20T/30T
Temperature Range Normal temperature to 300°C
Temperature Controller Microcomputer high-precision LED display, key setting input, numerical display
Timer LED display, high precision time range 0.1S～99min～9.9hr
Temperature Control Mode P.I.D mode microcomputer control performance is stable and temperature control is precise
Heater Built-in cylindrical shape, scientifically matched hole position, fast heating, long life, easy maintenance
Heating Time Approximately 15 minutes from room temperature to 170°C
Hot Pressing Plate 220*220mm high temperature resistant SKD imported steel plate, surface carbonization and quenching
Cylinder Stroke Maximum 160mm
Pressure Gauge 0～200kg/sq.cm
Dimensions 420*450*1200 mm (W*D*H)
Power Source AC380V, 16A
Weight Approximately 260kg
