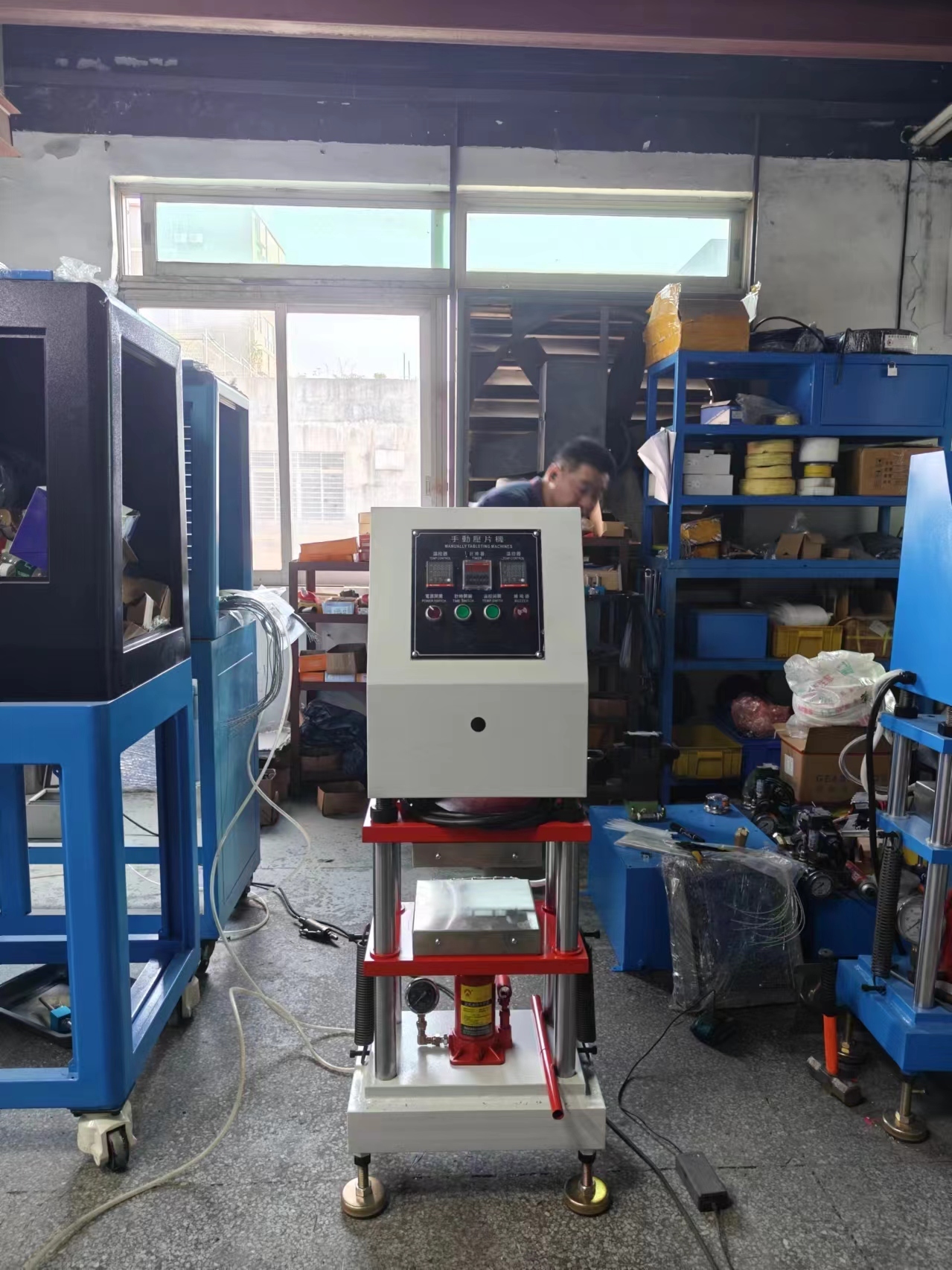

10Ton 25Ton 30Ton Manual Laboratory Hot Hydraulic Platen Vulcanizing Press for Rubber Plastic Sample Compression Molding

The machine provides three mainstream tonnage options: 10Ton, 25Ton and 30Ton, covering low, medium and high pressure test ranges. Users can select the appropriate model according to material hardness, sample thickness and experimental process standards. The equipment supports constant pressure maintenance and constant temperature holding function, which can simulate actual industrial vulcanization and molding environment, providing accurate and reliable experimental data for material formula improvement, performance verification and new product development.

Widely used in rubber and plastic industry, automobile manufacturing, new energy industry, electronic appliances, packaging materials, universities and colleges, scientific research institutions, quality inspection laboratories and testing centers. It is the indispensable basic laboratory equipment for material physical property testing, product process development and quality control.

• Multiple tonnage optional: 10T/25T/30T to meet different test requirements
• Manual hydraulic pressure, stable pressure output, easy operation and high safety
• High-precision constant temperature control, uniform platen heating, high molding consistency
• Thickened steel structure, stable operation, long service life
• Small size and space-saving, specially designed for laboratory use
• Support customized platen size, temperature range and voltage
• Ideal for lab R&D, sample preparation and teaching experiment

• Technical Parameters


  Heater	The heating mold has a built-in cylindrical shape, the hole position is scientifically matched, the temperature is fast, the life is long, and it is easy to maintain
  Heating Time	About 15 minutes from room temperature to 170°C
  Hot Pressing Plate	220×220mm high temperature resistant SKD imported steel plate, surface carbonization and quenching, fast heat conduction, parallel pressure constant type
  Cylinder Stroke	Max 160mm
  Pressure Gauge	0～200kg/sq.cm
  Volume	420×450×1200 mm(W×D×H)
  Power Source	AC380V, 16A
  Weight	About 260kg
