Specifications
Model Number :
ZL-7076
Rubbing distance :
40mm ± 1mm
MOQ :
1 set
Delivery Time :
5-10 work days
Loading method :
Incremental weight stacking
Brand Name :
ZL
Test speed :
144 - 180 cycles/min (2.4 - 3.0 Hz)
Packaging Details :
wooden case packaging
Payment Terms :
T/T,D/P,D/A,L/C
Number of test specimens :
1 piece
Pressure plate load :
5N ± 0.1N / 10N ± 0.2N
Price :
UDS3000-4500
Clamp spacing :
12mm ± 0.3mm
Supply Ability :
60 Sets
Name :
RUBB Flexing Resistance Tester
Certification :
CE,ISO
Pressure plate dimensions :
Length (100 ± 1) mm × Width (10 ± 0.2) mm
Place of Origin :
Guangdong, China
Description

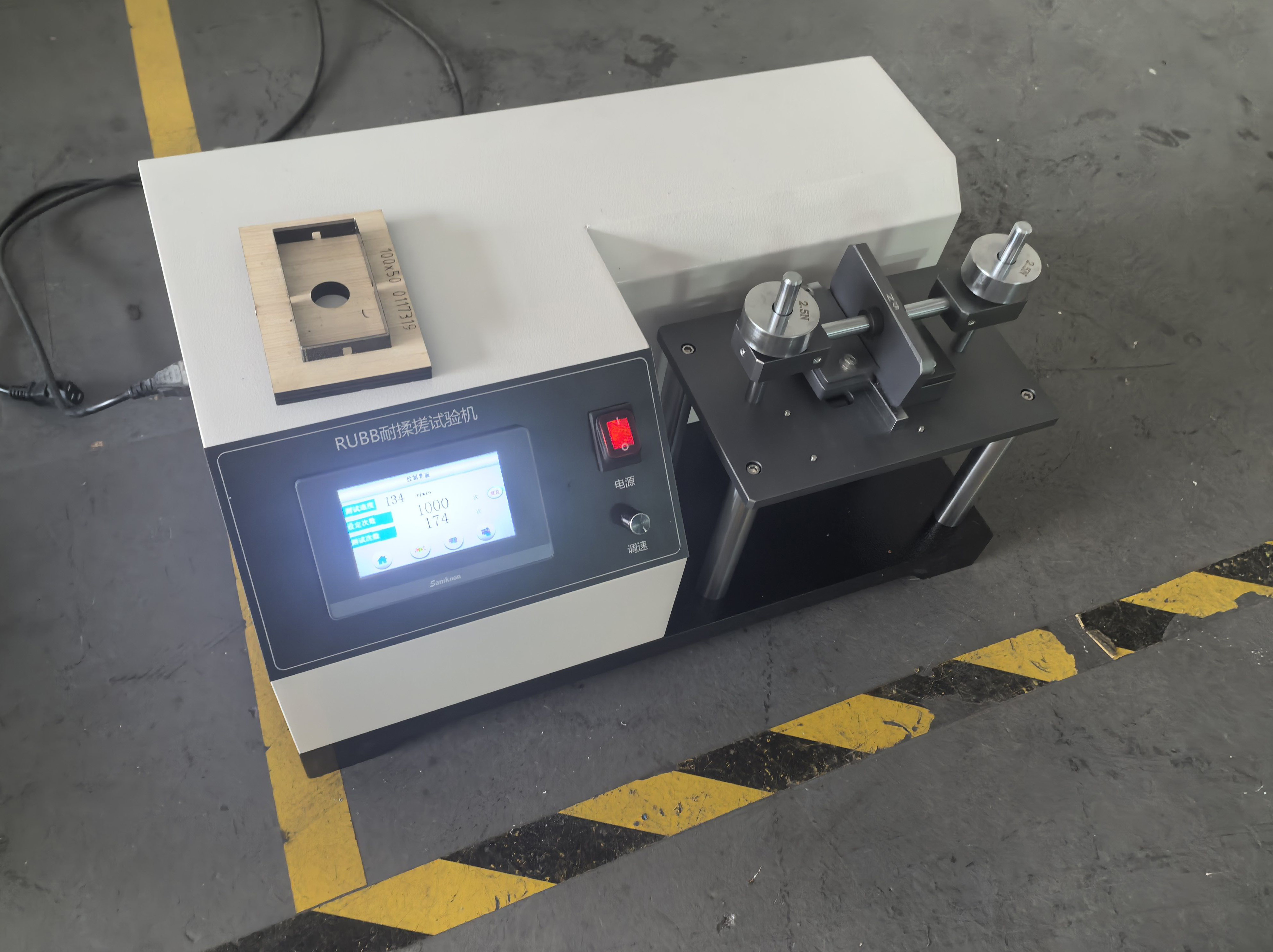

HG/T 3048 ISO 5981 Pressure Method & Non-pressure Method RUBB Flexing Resistance Tester for Polyurethane Coated Materials
This instrument applies force to specimens using pressure plates, testing the shear flexing resistance of coating materials through rubbing action. It is specifically designed for materials with adhesive surfaces or thin polyurethane coatings applied to rough surfaces.
Instrument Functions
Designed for testing the flexing resistance of polyurethane-coated materials, featuring both pressure method and non-pressure method testing capabilities.
Applicable Standards
ISO 5981, HG/T 3048, CITROËN D42 1007
Key Features
  • Surface treatment: American DuPont powder coating with electrostatic spray painting process, cured at 200℃ for long-lasting color retention
  • Mechanical components constructed from non-corrosive aluminum and stainless steel
  • LED-SLD806 integrated display control box with menu-based operation
  • Precision drive motor for smooth operation and low noise
  • Control method: Chinese/English touch screen control
Technical Specifications
Number of test specimens 1 piece
Clamp spacing 12mm ± 0.3mm
Pressure plate dimensions Length (100 ± 1) mm × Width (10 ± 0.2) mm
Pressure plate load 5N ± 0.1N / 10N ± 0.2N
Loading method Incremental weight stacking
Rubbing distance 40mm ± 1mm
Test speed 144 - 180 cycles/min (2.4 - 3.0 Hz)
Standard Configuration
  • Main unit - 1 unit
  • Power cord - 1 piece
  • Instruction manual - 1 copy
  • Delivery note - 1 copy
  • Packing list - 1 copy
