0.05L Mini Desktop Laboratory Banbury Mixer Small Rubber Internal Mixer Lab Rubber Kneading Mixing Machine
0.05L Mini Desktop Laboratory Banbury Mixer Small Rubber Internal Mixer Lab Rubber Kneading Mixing Machine
0.05L Mini Desktop Laboratory Banbury Mixer Small Rubber Internal Mixer Lab Rubber Kneading Mixing Machine
0.05L Mini Desktop Laboratory Banbury Mixer Small Rubber Internal Mixer Lab Rubber Kneading Mixing Machine
0.05L Mini Desktop Laboratory Banbury Mixer Small Rubber Internal Mixer Lab Rubber Kneading Mixing Machine
0.05L Mini Desktop Laboratory Banbury Mixer Small Rubber Internal Mixer Lab Rubber Kneading Mixing Machine
0.05L Mini Desktop Laboratory Banbury Mixer Small Rubber Internal Mixer Lab Rubber Kneading Mixing Machine
0.05L Mini Desktop Laboratory Banbury Mixer Small Rubber Internal Mixer Lab Rubber Kneading Mixing Machine
0.05L Mini Desktop Laboratory Banbury Mixer Small Rubber Internal Mixer Lab Rubber Kneading Mixing Machine
0.05L Mini Desktop Laboratory Banbury Mixer Small Rubber Internal Mixer Lab Rubber Kneading Mixing Machine
Specifications
MOQ :
1 set
Delivery Time :
7-14 work days
Control method :
Manual or semi-automatic operation
Certification :
CE,ISO
Model Number :
ZL-3011F
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Main motor :
AC motor, 1.5 kW power
Feeding hopper :
Manual operation
Rotor speed :
0–36 RPM
Place of Origin :
China
Packaging Details :
wooden case packaging
Supply Ability :
30 Sets
Mixing chamber volume :
0.05L
Brand Name :
ZL
Price :
UDS3500
Speed ratio of front and rear rotors :
1:1.20 or ST synchronous rotor
Description
0.05L Mini Desktop Laboratory Banbury Mixer
Product Overview

Small Rubber Internal Mixer Lab Rubber Kneading Mixing Machine designed for laboratory applications, featuring compact desktop design and precise mixing capabilities.

Technical Specifications
  • Mixing chamber volume: 0.05L
  • Main motor: AC motor, 1.5 kW power
  • Reducer: Base and frame constructed with low-carbon steel welding, equipped with forced lubrication circulation system
  • Rotor:
    • Two-wing synchronous rotor structure
    • Speed ratio of front and rear rotors: 1:1.20 or ST synchronous rotor
    • Material: Quenched and tempered cast steel, hard chrome-plated surface
    • Bearings: Tapered roller bearings with oil bath lubrication
    • Rotor speed: 0–36 RPM (variable frequency speed control)
  • Wall panel: Steel structure, drilling for heating, inner surface hardened and plated with hard chromium treatment
  • Bracket: Steel structure, inner surface hardened and hard chrome-plated
  • Top bolt: Driven by air cylinder, surface plated with hard chromium
  • End face seal: Sealing ring material is high wear-resistant material, self-lubricating bearings, hinge spring pressure top seal
  • Feeding hopper: Manual operation
  • Control method: Manual or semi-automatic operation
  • Discharge device structure: Open-close type (mixing chamber can be fully disassembled)
  • Transmission structure: Main motor: 1.5KW AC
  • Air supply piping: Compressed air accessories (filter-regulator-lubricator combo, solenoid valve) and machine body piping
  • Dimensions & Weight: 580×780×780mm, approximately 120kg

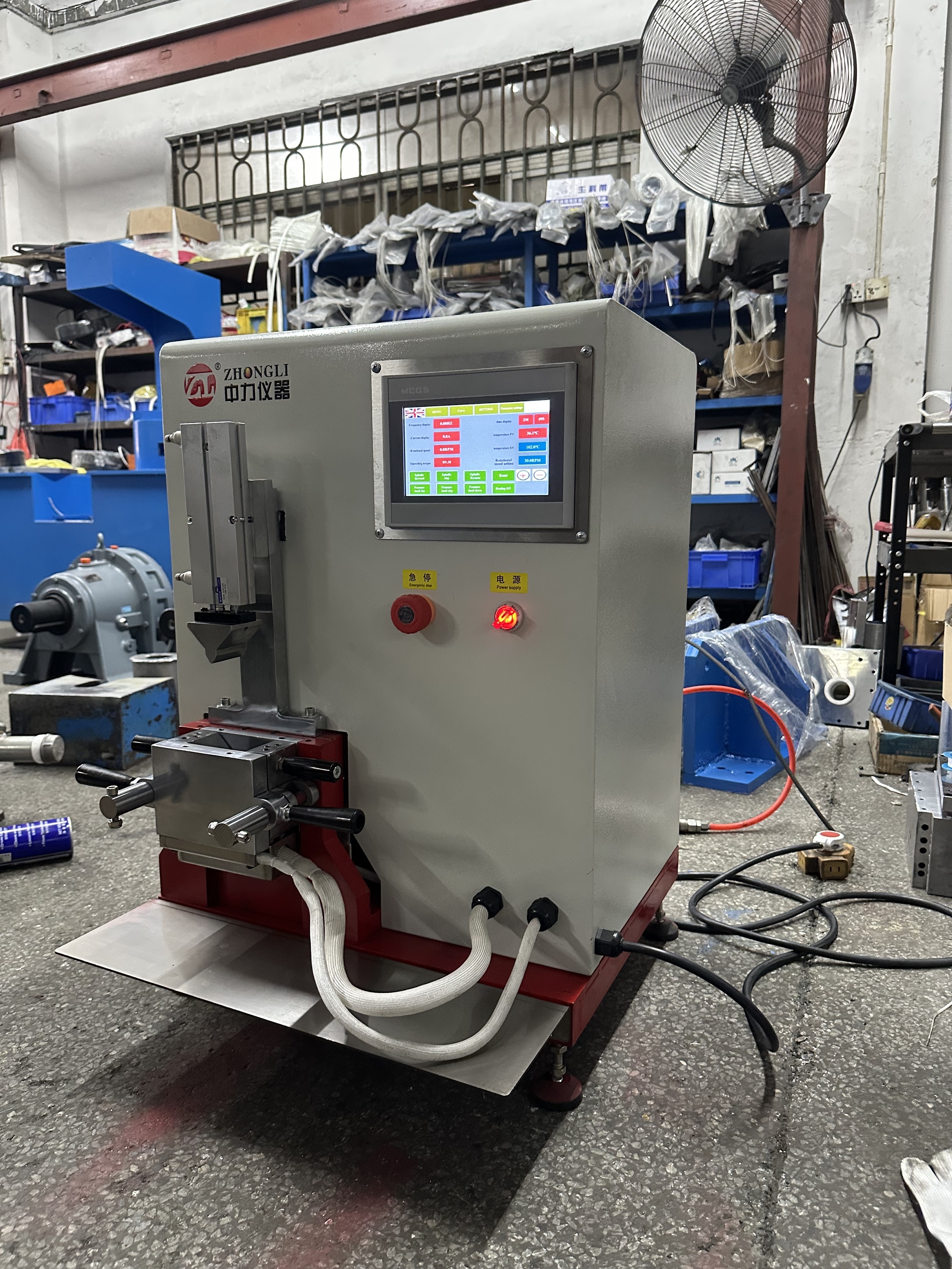

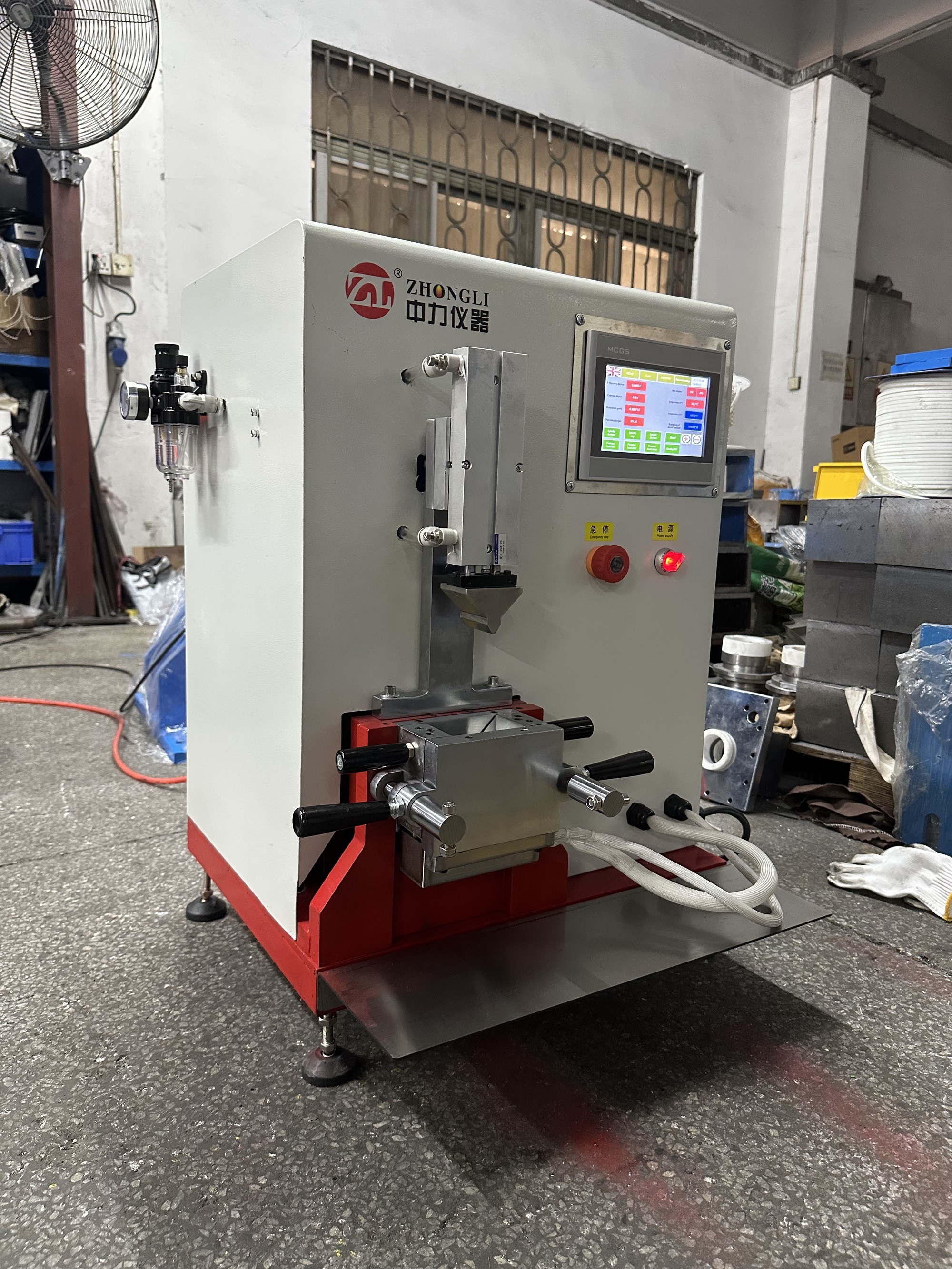

Product Image
