Specifications
MOQ :
1 set
Delivery Time :
7-14 work days
Drive Horsepower :
1-3 HP
Certification :
CE,ISO
Working Width :
maximum 1000 mm
Model Number :
ZL-3104
Conveyor Belt Speed :
adjustable from 0-2 m/s
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
Place of Origin :
China
Lift the Cylinder up and Down to Adjust the Height :
0-500 mm
Packaging Details :
wooden case packaging
Price :
UDS3200
Dimensions (L × W × H) :
2100 × 1260 × 2000 mm
Supply Ability :
30 Sets
Brand Name :
ZL
Name :
Stroller Bumps Wear Testing Instrument
Description
EN 1888 ASTM F833 Standard Suitcase Walking Bump Tester Luggage Wheel Rolling Durability Testing Equipment

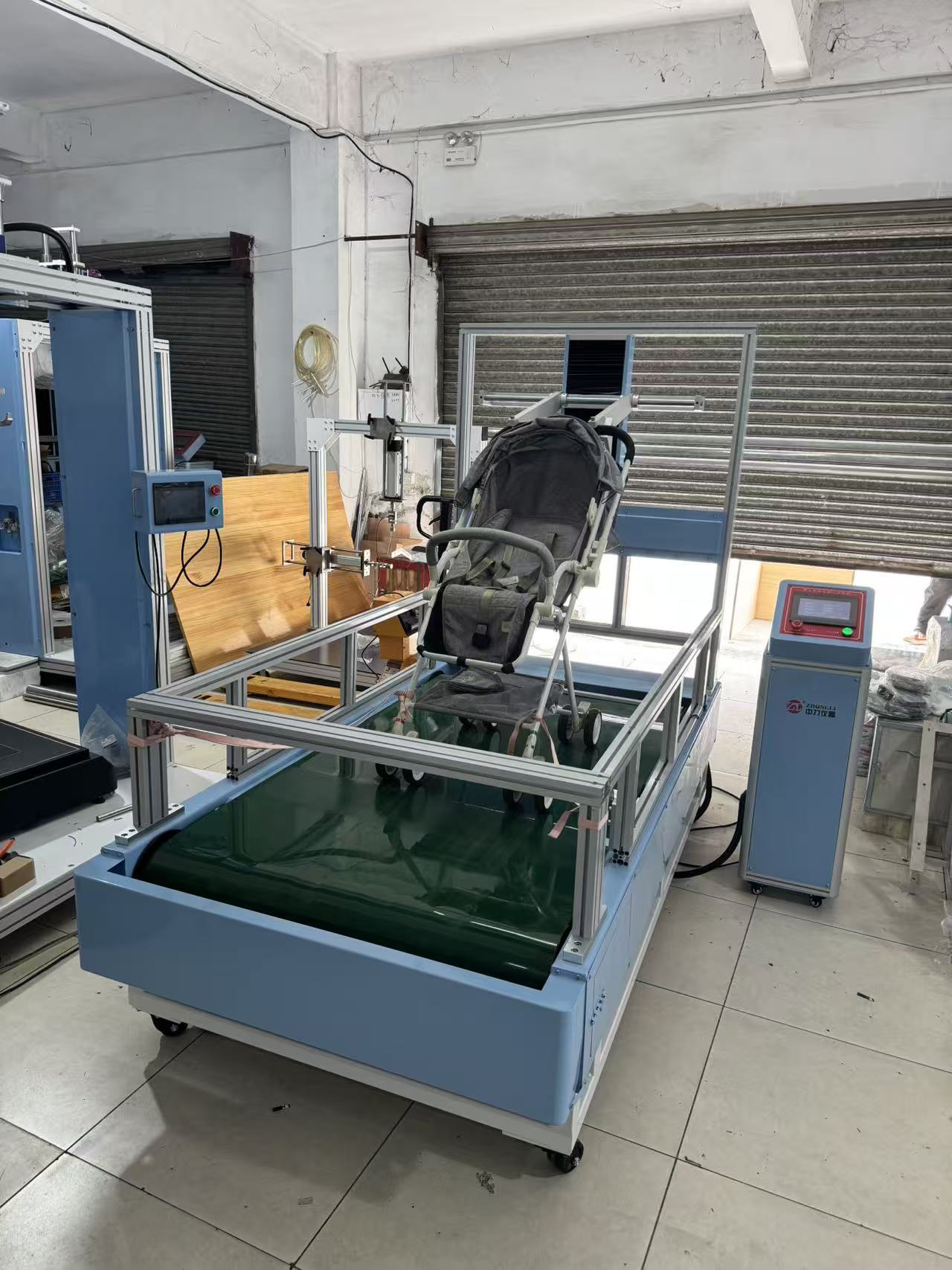

Instrument Overview

This testing equipment simulates irregular road conditions for child strollers, evaluating overall safety performance after specified testing cycles.

Testing Principle

The system places standard test weights on the vehicle platform while aluminum alloy impact blocks on a conveyor belt alternately lift wheels on both sides. Independent connecting handles move vertically and adjust width to accommodate various product types and sizes.

The conveyor system enables vehicle collision with obstacles at 5 km/h, automatically stopping after reaching preset test cycles.

Key Features
  • Touch screen display interface
  • Real-time monitoring of speed, distance, and time
  • PLC program control system
  • Programmable test frequency, cyclic testing, and interval timing
  • Dual closed-loop speed control for precision
  • Specialized structure prevents conveyor belt deviation and jamming
  • Customizable stroller handle fixing methods per standard requirements
  • Multiple grating protection for operator safety
  • Automatic power-off data saving with pre-selectable stop/continue options
Technical Specifications
Parameter Specification
Test Station 1 station (standard), optional 2 stations
Conveyor Belt Speed Adjustable 0-2 m/s
Working Width Maximum 1000 mm
Connecting Rod Adjustment Approximately 300 mm
Height Adjustment Range 0-500 mm
Impact Block Material Aluminum alloy per standard requirements
Drive System Canvas rubber conveyor belt with roller drive, reinforced rollers, special aluminum alloy belt
Drive Power 1-3 HP
Power Supply AC 220V, 50 Hz, 5 KW
Dimensions (L * W * H) 2100 * 1260 * 2000 mm
Total Weight 450 kg
Compliance Standards
EN 1888, ASTM F833-13b, GB 14748, and related standards
