Specifications
MOQ :
1 set
Delivery Time :
5-10 work days
Certification :
CE,ISO
Model Number :
ZL-2837
Test unilateral stroke :
0~150mm (manually adjustable)
Machine size (approx.) :
length 1000 width 250 height 700mm
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
Test times counter :
0~99999999 times
Test station :
1
Place of Origin :
China
Packaging Details :
wooden case packaging
Price :
UDS2000
Supply Ability :
60 Sets
Test stroke display :
pointer indicates scale
Brand Name :
ZL
Working power supply :
AC220V, 50Hz
Test speed :
10~60 times/min (adjustable knob, LCD display)
Description
IEC 60068 IEC 60268 ASTM F2101 Headphone Expansion Life Tester Headset Headband Stretch Fatigue Testing Machine
1. Overview of the machine:

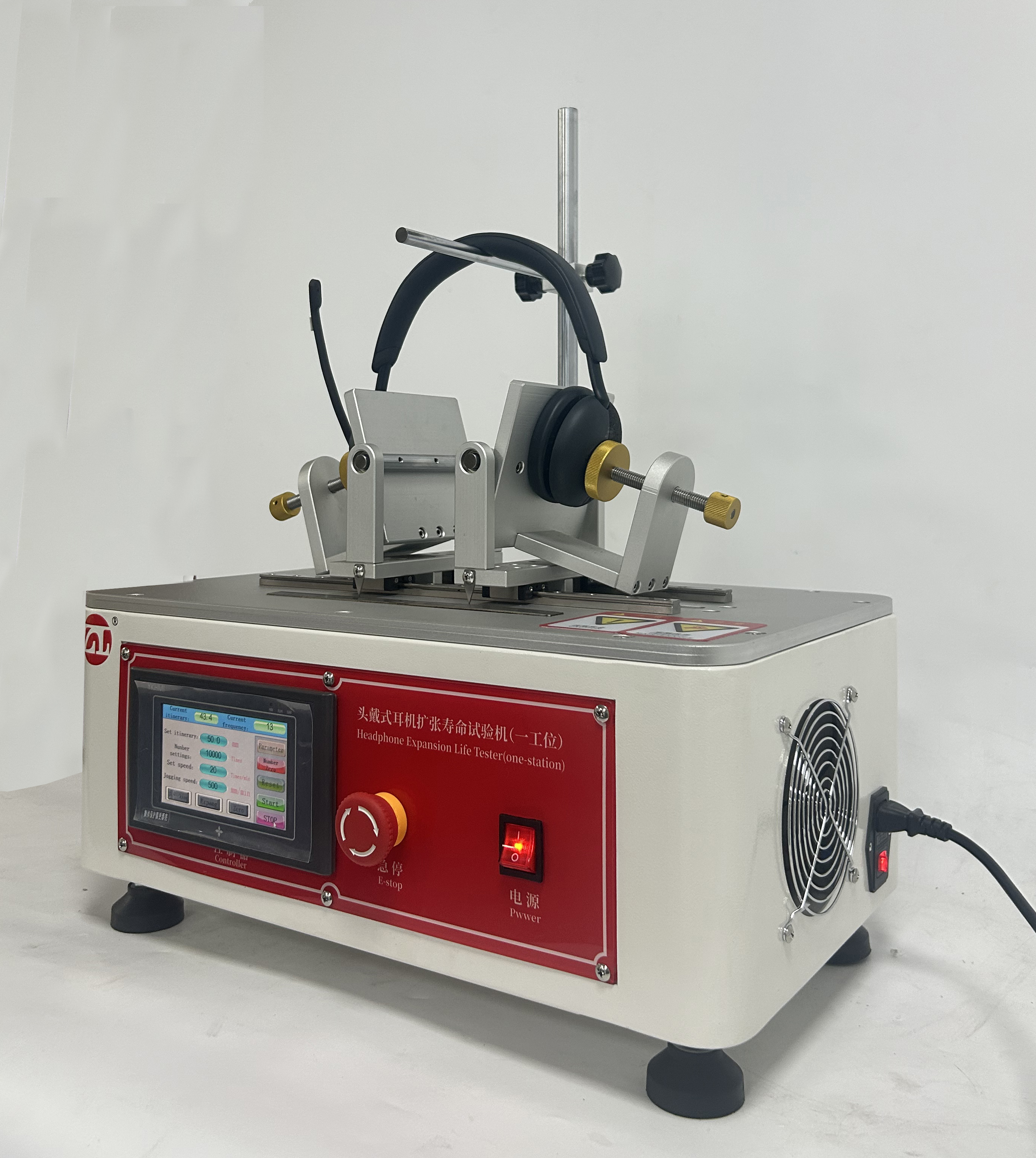

Headphone expansion fatigue testing machine, headphone expansion life testing machine is suitable for stretching fatigue strength test of headphone ear clips. This machine is to place both ends of the product on the clamping device that adjusts the test stroke, and set the number of tests. When the set number of times is reached, the machine stops working to check the damage of the product.

This machine complies with the "General Technical Standard for Headphones GB/T14471-93" headphone telescopic fatigue test.

2.The main technical parameters:
Parameter Value
1. Test station 1
2. Test speed 10~60 times/min (adjustable knob, LCD display)
3. Test times counter 0~99999999 times (can be preset, and automatically stop when the number of times is reached)
4. Test unilateral stroke 0~150mm (manually adjustable)
5. Test stroke display pointer indicates scale
6. Machine size (approx.) length 1000 width 250 height 700mm
7. Working power supply AC220V, 50Hz
3. Product Features:
  1. The box body is treated with electrostatic baking paint, and is designed and manufactured according to various products. The whole machine is reasonably designed, the structure is tight, and the operation is safe, stable and accurate;
  2. The precision rod and linear bearing are used as the main body to avoid the unevenness of vertical inertia during slow speed test;
  3. The test speed, times, stroke and height are adjustable, user-friendly design, customers can set according to requirements.
