Specifications
Model Number :
ZL-2815
The test speed range :
5~40 times/min (can be set)
MOQ :
1 set
Delivery Time :
5-10 work days
Power :
AC 220V/50Hz/5A
Certification :
CE,ISO
Place of Origin :
China
Packaging Details :
PLC Touch Screen Wearing Headphone Torsion Testing Machine With Stepping Motor Servo is packaged within wooden case.
Payment Terms :
L/C,T/T,Western Union
Transmission structure :
Rotating way
Test number set :
1~99999999 (can be set)
Supply Ability :
60 Sets
Product name :
PLC Touch Screen Wearing Headphone Torsion Testing Machine With Stepping Motor Servo
Brand Name :
ZL
Price :
Negotiable
Minimum display angle :
0.1 degree
Description
IEC 60268 EN 60268 Headphone Torsion Life Tester | Headset Rotary Durability Testing Machine
Equipment Application

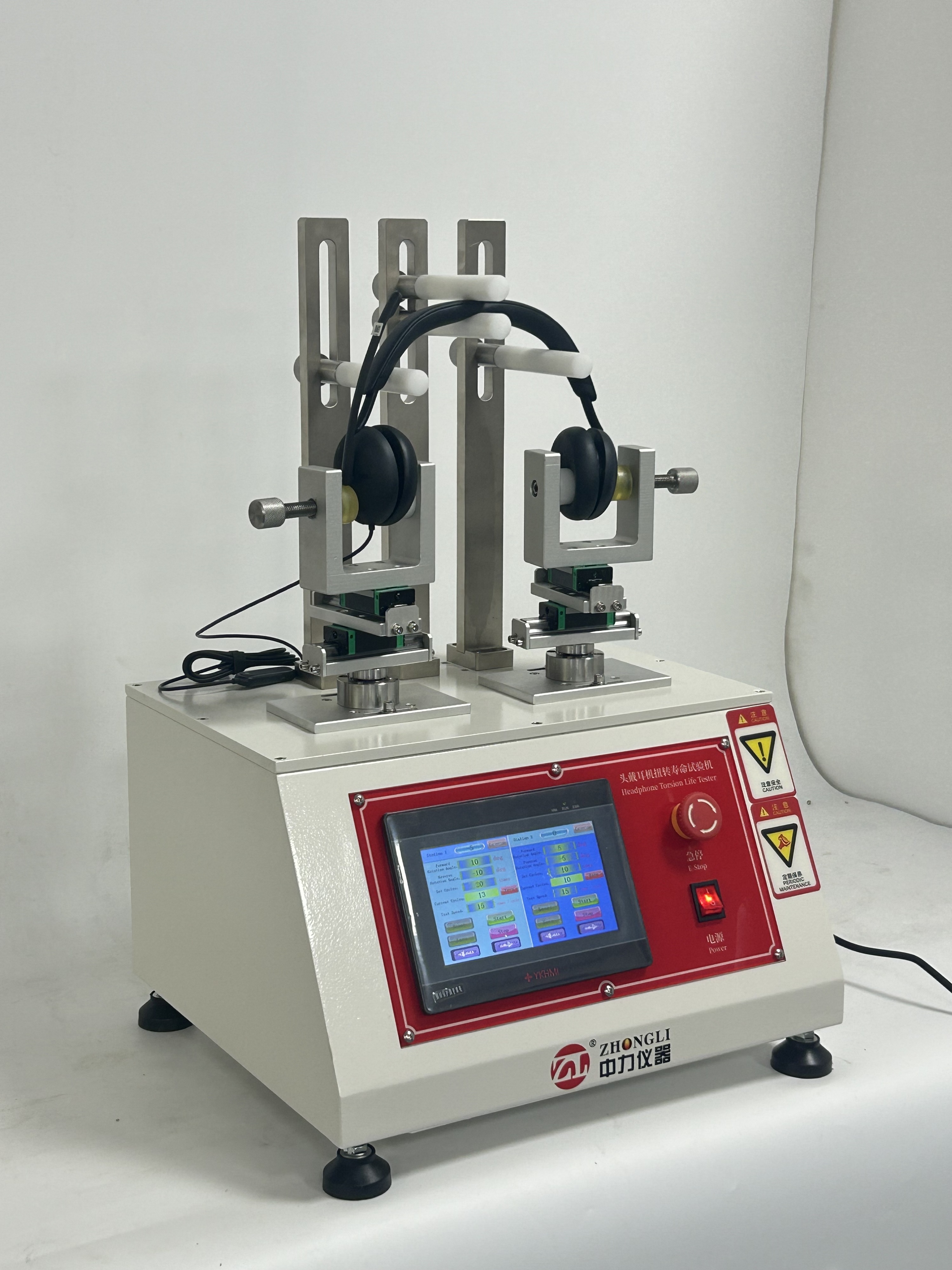

This machine is designed for torsion (twisting) testing of over-ear headphones. The testing process involves securing one earpiece on a fixture while fixing the headband to a support frame. Users can set the desired twist angle and rotation speed, and the machine runs the test for a specified number of cycles. After completion, the headphones are removed to evaluate the performance of the rotating joints.

Key Features
  • Reliable drive system – Utilizes a stepper motor servo system for stable, consistent, and long-lasting performance with precise positioning
  • Automatic centering – Features a dedicated X/Y automatic alignment mechanism that reduces positioning errors, ensuring accurate and reliable test results for rotational performance
  • Adjustable earpiece spacing – The distance between the two earpiece holders can be easily adjusted to accommodate a wide range of headphone models
  • User-friendly controls – Equipped with a 4.3-inch color touchscreen and Mitsubishi programmable controller, allowing direct setting of all test parameters including rotation angle, speed, cycle count, and pause intervals
  • Flexible testing modes – Supports two independent test stations for single-earpiece testing, or can run dual-earpiece tests on one station to meet various testing requirements
Equipment Specifications
Control Mode PLC + Touch Screen
Transmission Structure Rotating Way
Minimum Display Angle 0.1 Degree
Receiver Center Spacing Range 150~220mm Adjustable
Test Speed Range 5~40 Times/Min (Can Be Set)
Test Schedule Plus or Minus 90 Degrees (Can Be Set)
Test Number Set 1~99,999,999 (Can Be Set)
Machine Size 480(W) × 590(D) × 530(H) mm
Machine Weight 40 Kg
Power AC 220V / 50Hz / 5A
