Specifications
Brand Name :
Zhongli
Model Number :
ZL-8002B
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability :
100 sets per month
Delivery Time :
15 days after receiving the deposite
Packaging Details :
Desktop Computer Controlled Universal Testing Machine Price is packaged within wooden case.
Name :
Desktop Computer Controlled Universal Testing Machine Price
Brand Name: :
ZL
Model Number: :
ZL-8002B
Maximum Load :
200,500,1000,2000KG
Effective Force Measuring Range :
0.4%～100％ (0.5 grade)
Test Bench Safety Device :
Electronic limit protection
Fixture Configuration :
One set of tensile jig
Main Machine Size :
1200*530*1800mm(L*W*H)
Power System :
Servo motor + high precision T-screw
Power Supply :
220V/50HZ
Description

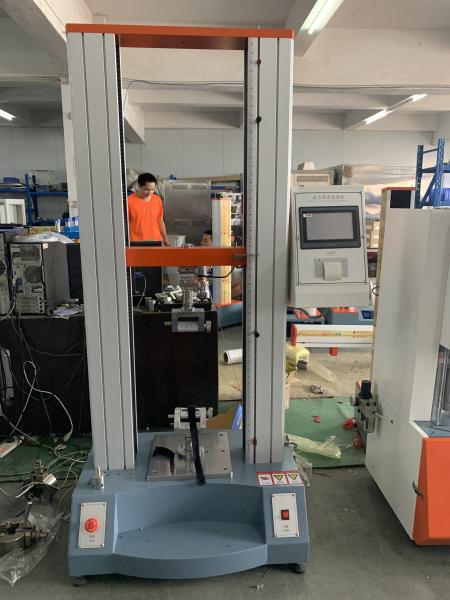

220V/50HZ Universal Testing Machine 1200*530*1800mm Desktop Computer Controlled
Product Overview
High-precision desktop computer controlled universal testing machine designed for comprehensive material testing applications. This compact yet powerful system offers exceptional accuracy and reliability for quality control and research applications.
Download Technical Specifications (PDF)
Compliance Standards
ASTM D638-98, ASTM D790-99, ASTM D695-96, ISO527-93, ISO178-93, ISO14125-1998E, ISO604, DIN53-504, DIN53-452
Technical Specifications
Parameter Specification
Maximum Load Capacity 200, 500, 1000, 2000 KG
Accuracy Class 0.5 level
Effective Force Measuring Range 0.4%～100% (0.5 grade)
Force Measurement Accuracy Within ±0.5% of displayed value
Tester Resolution Maximum load 1/200,000, no grade inside and outside, constant resolution throughout
Load Cell Configuration Basic: pull, pressure sensor (maximum load)
Extended: can be equipped with multiple sensors
Effective Test Width 380mm (customizable according to requirements)
Effective Tensile Space 600mm (height customizable according to requirements)
Test Speed Range 50～300mm/min
Displacement Measurement Accuracy Within ±0.5% of displayed value
Deformation Measurement Accuracy Within ±0.5% of measured value (selectable deformation range)
Test Bench Safety Device Electronic limit protection
Test Bench Lifting Device Fast/slow two-speed automatic control, point-to-point movement
Test Bench Return Function Manual or automatic options, returns to initial position at high speed
Overload Protection Automatic protection when exceeding maximum load by 10%
Fixture Configuration One set of tensile jig included
Main Machine Dimensions 1200*530*1800mm (L*W*H)
Power System Servo motor + high precision T-screw
Power Supply 220V/50HZ
Power Rating 0.75KW (varies according to force value requirements)
Main Machine Weight Approximately 300 KG
Key Features
  • Computer-controlled operation for precise testing
  • High-resolution measurement system
  • Multiple safety protection systems
  • Flexible configuration options
  • Compact desktop design saves space
  • Compliant with international testing standards
220V/50HZ Universal Testing Machine 1200*530*1800mm Desktop Computer Controlled
220V/50HZ Universal Testing Machine 1200*530*1800mm Desktop Computer Controlled
Note: Specifications and configurations can be customized according to specific testing requirements. Contact us for tailored solutions.
