ISO 13431 Tensile Testing Machine GB / T 17637 Geosynthetic Creep
ISO 13431 Tensile Testing Machine GB / T 17637 Geosynthetic Creep
Specifications
Brand Name :
ZL
Model Number :
ZL-2413
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
100 set per month
Delivery Time :
5-7 days
Packaging Details :
Packaged within wooden case
Maximum load :
20KN
Load accuracy :
≤±1%
Fixture width :
50mm and 200mm optional
Effective creep space :
800mm
Effective test width :
350mm
Displacement measurement accuracy :
0.03mm
Time measurement error :
≤±1%
Dimensions :
2300×550×1850 mm
Description

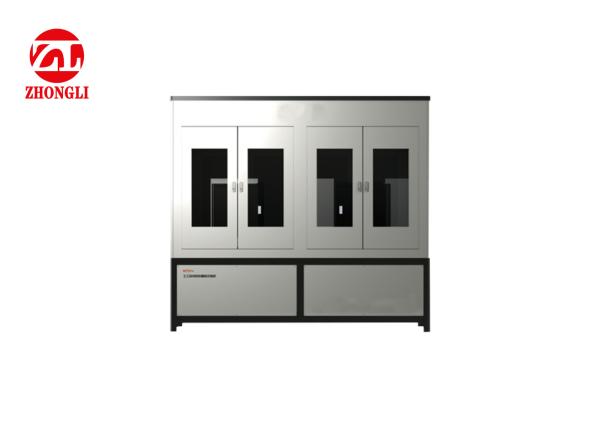

ISO 13431 GB/T 17637 Geosynthetic Creep Tensile Testing Machine
This specialized testing machine evaluates the tensile creep and tensile creep rupture properties of geotextiles and related products. It is designed for products that may experience structural collapse due to premature failure or when creep affects reinforcement integrity. The system comprises three main components: data acquisition and processing unit, lever weight loading mechanism, and the main frame structure. The entire testing process can be controlled via microcomputer, with automatic periodic data collection or manual data acquisition options.
Compliance Standards
  • ISO 13431
  • GB/T 17637
  • JTG E50
  • SL 235
Technical Specifications
Parameter Specification
Maximum Load 20KN
Load Accuracy ≤±1%
Fixture Width 50mm and 200mm optional
Effective Creep Space 800mm
Effective Test Width 350mm
Displacement Measurement Accuracy 0.03mm
Time Measurement Error ≤±1%
Dimensions 2300*550*1850 mm
