Motorbike Helmet Impact Energy Attenuation Tester Electric Control
Motorbike Helmet Impact Energy Attenuation Tester Electric Control
Motorbike Helmet Impact Energy Attenuation Tester Electric Control
Motorbike Helmet Impact Energy Attenuation Tester Electric Control
Motorbike Helmet Impact Energy Attenuation Tester Electric Control
Motorbike Helmet Impact Energy Attenuation Tester Electric Control
Motorbike Helmet Impact Energy Attenuation Tester Electric Control
Motorbike Helmet Impact Energy Attenuation Tester Electric Control
Motorbike Helmet Impact Energy Attenuation Tester Electric Control
Motorbike Helmet Impact Energy Attenuation Tester Electric Control
Specifications
Key words :
Full or Half Helmet
Model :
ZL-1814B
Acceleration sensor :
single-axis or three-axis sensor can be selected
mpact height :
0-2000mm, can be set by yourself.
Impact speed :
0-20m/S
Brand Name :
ZL
Model Number :
ZL-1814B
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
60 Sets
Delivery Time :
5-8 work days
Packaging Details :
Electric Control Motorbike Helmet Impact Energy Attenuation Tester is packaged within wooden case.
head mold :
magnesium aluminum alloy full head mold or half head mold
Product name :
Electric Control Motorbike Helmet Impact Energy Attenuation Tester
road stone anvil :
made of T10A tool steel
Description
\n
\n

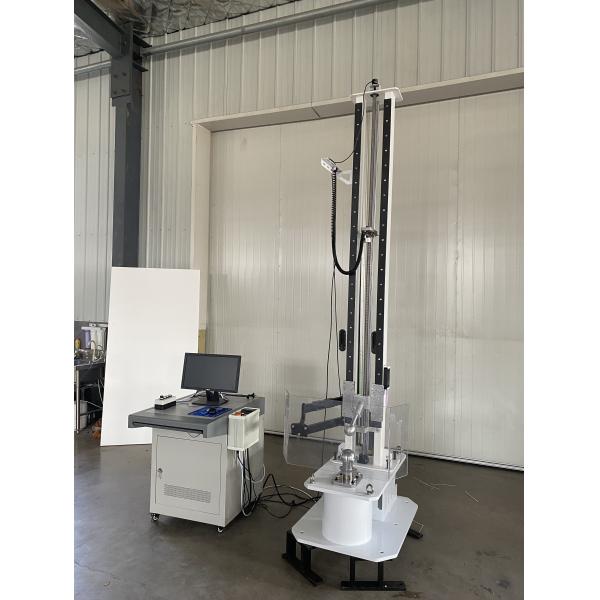

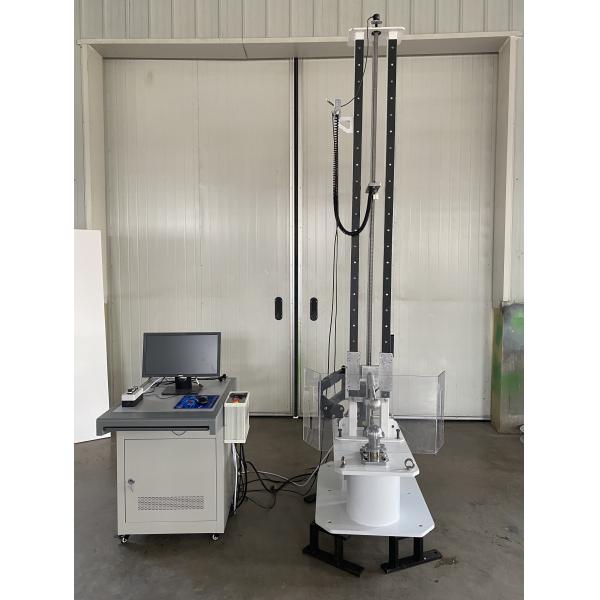

Motorbike Helmet Impact Energy Attenuation Tester Electric Control
\n
\n The Electric Control Motorbike Helmet Impact Energy Attenuation Tester is designed for comprehensive safety testing of various helmet types according to industry standards.\n
\n
Application
\n
\n Primarily used for testing impact energy absorption performance of motorcycle helmets, sports helmets, electric vehicle helmets, fire helmets, rescue helmets, industrial and safety inspection helmets, pilot helmets, and other protective headgear. Widely utilized by helmet manufacturers, research institutions, and quality supervision testing units.\n
\n
Key Features
\n
    \n
  • Programmable impact height with real-time display and automatic stop at set height
    • \n
  • Robust base construction with reinforced impact strength and pre-drilled fixing holes
    • \n
  • Electric control system for head form suction and release operations
    • \n
  • Specialized test tooling for easy switching between full head form and half head form configurations
    • \n
  • 360\u00b0 helmet rotation capability for comprehensive five-point testing (top, back, forehead, both sides)
    • \n
  • Dual rail structure for smooth head form lifting and releasing operations
    • \n
  • Computerized data collection with mechanical-electrical speed measurement and test curve display
    • \n
  • 180\u00b0 rotatable high-strength protective shield in collision area
    • \n
  • Configurable for different standards and helmet types
    • \n
\n\n Download Safety Helmet Testing Machine Catalog\n \n
\nMotorbike Helmet Impact Energy Attenuation Tester Electric Control\nMotorbike Helmet Impact Energy Attenuation Tester Electric Control\n
\n
Technical Parameters
\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n
Head MoldMagnesium aluminum alloy full/half head mold, response frequency <1400Hz, resonance frequency \u22652500Hz, weights: 4kg, 5kg, 6kg (including sensors and connections)
Flat AnvilT10A tool steel, roughness \u2265Ra0.8, hardness \u226550HRC, diameter 130\u00b13mm, thickness \u226515mm cylindrical impact surface
Hemispherical AnvilT10A tool steel, roughness \u2265Ra0.8, hardness \u226550HRC, 48mm radius spherical impact surface
Road Stone AnvilT10A tool steel, roughness \u2265Ra0.8, hardness \u226550HRC, length 125-127mm, height 50-52mm, bevel angle 105\u00b15\u00b0 with rounded edges, diameter 15\u00b10.5mm
Acceleration SensorSingle-axis or three-axis options, range 1-1000g, error 2.5%, frequency 0-1000Hz, frequency band cutoff -4~-3.5dB, decay slope -9~-25dB/oct
Impact Height0-2000mm, programmable setting
Impact Speed0-20m/s real-time detection with digital display
\n
\n
Related Equipment
\nMotorbike Helmet Impact Energy Attenuation Tester Electric Control\n
