Rubber Carpet Track Vulcanizing Press Machine , Plastic Lab Hot Press Machine
Rubber Carpet Track Vulcanizing Press Machine , Plastic Lab Hot Press Machine
Rubber Carpet Track Vulcanizing Press Machine , Plastic Lab Hot Press Machine
Rubber Carpet Track Vulcanizing Press Machine , Plastic Lab Hot Press Machine
Rubber Carpet Track Vulcanizing Press Machine , Plastic Lab Hot Press Machine
Rubber Carpet Track Vulcanizing Press Machine , Plastic Lab Hot Press Machine
Rubber Carpet Track Vulcanizing Press Machine , Plastic Lab Hot Press Machine
Rubber Carpet Track Vulcanizing Press Machine , Plastic Lab Hot Press Machine
Specifications
Brand Name :
ZL
Model Number :
ZL-3022
Certification :
ISO, CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
D/A, D/P, Western Union, MoneyGram, T/T, L/C
Supply Ability :
30 sets per month
Delivery Time :
15- 20 days
Packaging Details :
Lab Rubber Carpet Track Vulcanizing Press Machine , Plastic Lab Hot Press Machine is Packaged in wooden case
Product name :
Rubber Carpet Track Vulcanizing Press Machine , Plastic Lab Hot Press Machine
Platen size :
350*350mm
Press layer :
Two
Power supply :
380V/ 440v 60hz
Heating :
Electrical
Cooling :
water cooling
Capacity :
30T
Key words :
Lab Rubber Carpet Track Vulcanizing Press Machine , Plastic Lab Hot Press Machine
Description
Rubber Carpet Track Vulcanizing Press Machine, Plastic Lab Hot Press Machine
Product Overview

Laboratory Hydraulic Press Tester designed for rubber carpet track vulcanizing and plastic lab hot pressing applications. This machine places materials in casting molds and clamps them between electric-heating flat plates to apply precise pressure and temperature for material shaping, testing, and serving as the basis for mass production ingredient formulation.

Download Technical Brief
Technical Specifications
Product Name Lab Rubber Carpet Track Vulcanizing Press Machine
Capacity 10T/20T/30T/50T (Customizable)
Temperature Range Room temperature ~300℃
Temperature Controller LED Indicator, press key set input, value indicate output
Timer LED display, time range 0.1S~99min~9.9hr
Heating Type Electrical Heating module
Hot Pressure Plate 300×300mm, 350×350mm
Cold Pressure Plate 300×300mm, 350×350mm
Distance of Pressure Plate 100mm
Pressure Material SKD chromium-molybdenum alloy
Pressure Surface Mirror chrome plated
Cooling Temperature Scope Room temperature ~+5℃
Cooling Type Tap water cooling/compressor cooling water (optional)
Oil Pressure System Proportion hydraulic pressure current capacity loop circuit control system, GPY oil pump driver high performance electroencephalographic matching high accuracy non resistance piston of oil cylinder carry out constant speed rate control mode, can pre-select one, two times pressure and time
Oil Cylinder Stroke Max 200mm
Oil Cylinder Speed 11mm/s
Pressure Gauge 0~350kg/sq.cm
Power 10.6HP
Dimension W×D×H 1200×600×1500 mm
Power Supply AC380V, three phase 60hz
Weight About 750 kg
Download Control Type Specifications

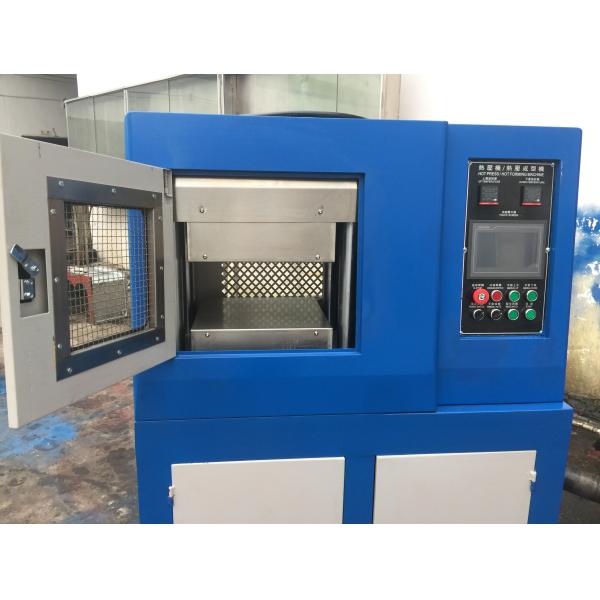

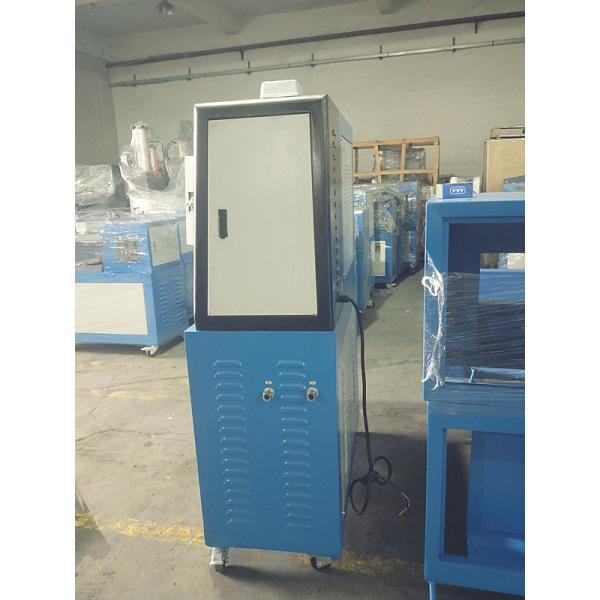

Product Images
Rubber Carpet Track Vulcanizing Press Machine , Plastic Lab Hot Press Machine Rubber Carpet Track Vulcanizing Press Machine , Plastic Lab Hot Press Machine Rubber Carpet Track Vulcanizing Press Machine , Plastic Lab Hot Press Machine
Manufacturer Information

Dongguan Zhongli Instrument Technology Co., Ltd., located in Dongguan, Guangdong, China, is a technology company specializing in the development, research, production, and sales of test equipment.

The company operates with technical support, market orientation, and fundamental human resources. We maintain a highly professional, experienced, and innovative research team along with a dedicated production team. Our commitment includes providing the most advanced technology, stable quality, competitive pricing, and comprehensive after-sales service including installation, commissioning, professional training, and 24-hour technical support.
