Laboratory Rubber Hot Press Platen Vulcanizing Press
Laboratory Rubber Hot Press Platen Vulcanizing Press
Laboratory Rubber Hot Press Platen Vulcanizing Press
Laboratory Rubber Hot Press Platen Vulcanizing Press
Laboratory Rubber Hot Press Platen Vulcanizing Press
Laboratory Rubber Hot Press Platen Vulcanizing Press
Laboratory Rubber Hot Press Platen Vulcanizing Press
Laboratory Rubber Hot Press Platen Vulcanizing Press
Specifications
Brand Name :
ZL
Model Number :
ZL-3022
Certification :
CE,ISO
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
40 sets / month
Delivery Time :
5-8 work days
Packaging Details :
Platen Vulcanizing Press Rubber Machine Plastic Lab Hot Press Machine is packaged within wooden case.
Product name :
Platen Vulcanizing Press Rubber Machine Plastic Lab Hot Press Machine
Pressure surface :
Mirror chrome plated
Dimension W×D×H :
1000×500×1500 mm
Oil cylinder stroke :
Max 200mm
Weight :
About 658kg
Cooling temperature scope :
Room temp. ～＋5℃
Pressure gauge :
0～350kg/sq.cm
power :
10.6HP
Description
Laboratory Rubber Hot Press Platen Vulcanizing Press
Platen Vulcanizing Press Rubber Machine Plastic Lab Hot Press Machine
Rubber Plate Vulcanization Features
  • High pressure water pump with three cylinder plunger pump driven by single-phase machine, featuring compact structure, small volume, reliability, and easy maintenance
  • Sturdy heating plate with hydraulic pressure system ensures temperature uniformity, with high pressure reaching up to 2.0 MPa
  • Heating plate includes air or water cooling options
  • Heat preservation time for vulcanizing can be adjusted according to rubber belt thickness
  • Splicing length of rubber conveyor belt for vulcanizing jointing can be connected using single or multiple pieces as needed
  • Rubber conveyor belt and required tension in kilograms for vulcanizing jointing specified when ordering
ZL-3022 Laboratory Hydraulic Press Tester; Lab Hot Press Machine Documentation
Technical Parameters
Capacity 10~50ton (Option)
Temperature Range Room temperature to 300℃
Temperature Controller PLC touch screen with value indicate output
Timer LED display, time range 0.1S to 99min to 9.9hr
Heating Type Electrical Heating module
Hot Pressure Plate 300×300mm (can be customized)
Cold Pressure Plate 300×300mm (can be customized)
Distance of Pressure Plate 100mm
Pressure Material SKD chromium-molybdenum alloy
Pressure Surface Mirror chrome plated
Cooling Temperature Scope Room temperature to +5℃
Cooling Type Tap water cooling/compressor cooling water (optional)
Oil Pressure System Proportion hydraulic pressure current capacity loop circuit control system, GPY oil pump driver high performance electroencephalographic matching high accuracy non resistance piston of oil cylinder carrying out constant speed rate control mode, can pre-select one, two times pressure and time
Oil Cylinder Stroke Max 200mm
Oil Cylinder Speed 11mm/s
Pressure Gauge 0 to 350kg/sq.cm
Power 10.6HP
Dimension W×D×H 1000×500×1500 mm
Power Supply 3∮, AC380V, 20A
Weight About 658kg

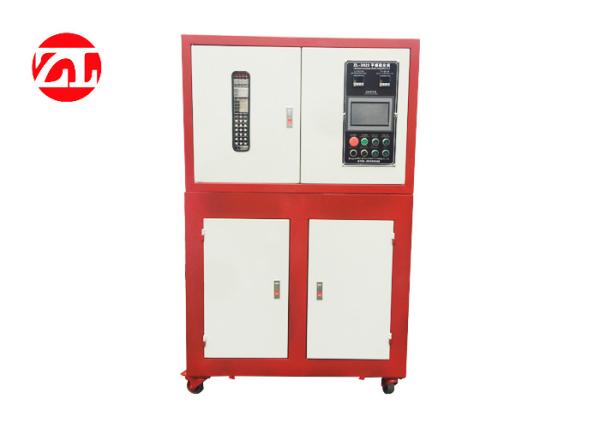

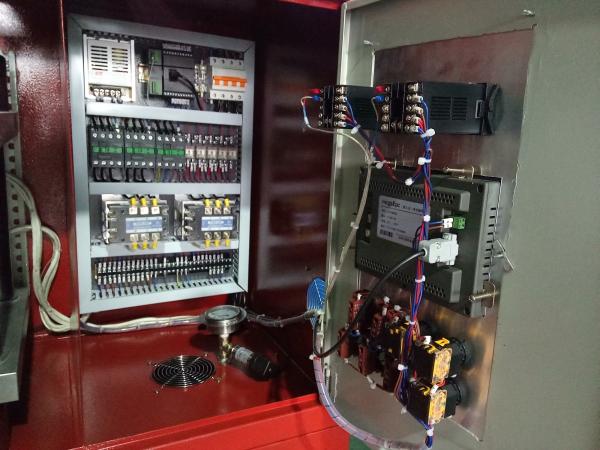

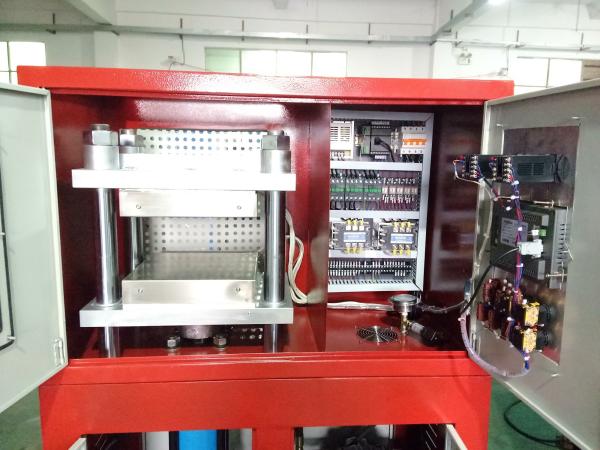

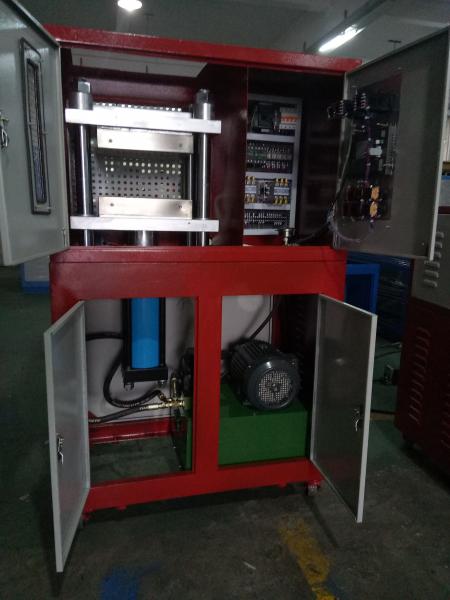

Product Images
Laboratory Rubber Hot Press Platen Vulcanizing Press Laboratory Rubber Hot Press Platen Vulcanizing Press
