LCD Digital Display Hydraulic Universal Testing Machine（ 100 , 300 , 600 ,1000KN ）
LCD Digital Display Hydraulic Universal Testing Machine（ 100 , 300 , 600 ,1000KN ）
LCD Digital Display Hydraulic Universal Testing Machine（ 100 , 300 , 600 ,1000KN ）
LCD Digital Display Hydraulic Universal Testing Machine（ 100 , 300 , 600 ,1000KN ）
LCD Digital Display Hydraulic Universal Testing Machine（ 100 , 300 , 600 ,1000KN ）
LCD Digital Display Hydraulic Universal Testing Machine（ 100 , 300 , 600 ,1000KN ）
LCD Digital Display Hydraulic Universal Testing Machine（ 100 , 300 , 600 ,1000KN ）
LCD Digital Display Hydraulic Universal Testing Machine（ 100 , 300 , 600 ,1000KN ）
Specifications
Brand Name :
ZL
Model Number :
ZL-8010
Certification :
CE,ISO
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50 sets / month
Delivery Time :
5-8 work days
Packaging Details :
LCD Digital Display Hydraulic Universal Testing Machine is packaged within wooden case.
Product name :
LCD Digital Display Hydraulic Universal Testing Machine
Range :
whole journey didn't sub-file ,equivalent 3 grade
Test force measuring range :
4%-100%FS KN
Test Force Resolution :
0.01kN
Displacement measurement resolution :
0.01mm
Shear specimen diameter :
10mm
Pump motor power :
1.1kw
Beam moves up and down motor fixed rate :
0.75kw
Description
LCD Digital Display Hydraulic Universal Testing Machine (100, 300, 600, 1000KN)
Product Overview

The ZL-8010 LCD Digital Display Hydraulic Universal Testing Machine is designed for comprehensive material testing applications across multiple industries and material types.

Applications: Testing of various metal materials including tensile, compression, bending, and shearing tests. Also suitable for plastic, concrete, cement, and other non-metallic materials compression tests. With simple accessories, can perform chain tape, wire, welding rod, tile, and various component performance tests.

Key Features
  • Host Design: Oil cylinder under mounted type host with stretching space at the top and compression test space between work table and crossbar
  • Transmission System: Down beam movement via motor reducer, chain drive mechanism, and vice screw drive for adjustable tensile and compression spaces

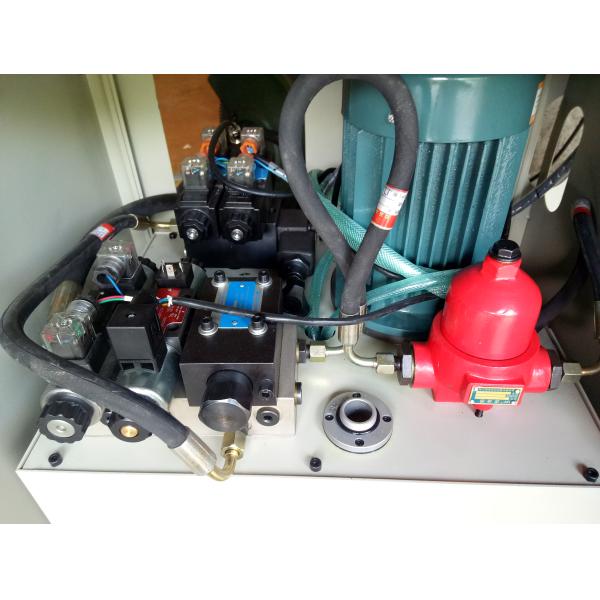

  • Hydraulic System: Efficient oil circulation system with filter screen protection and precise flow control

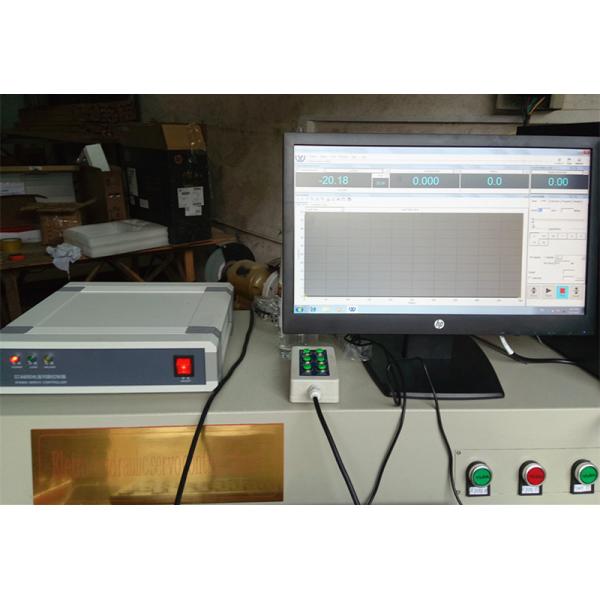

  • Control System: Electronic force measurement with LCD display showing test force-time curves, peak test power, and material yield strength characteristics
  • Safety Protection: Overload protection (3% of maximum test force) and stroke protection with automatic pump motor shutdown
  • Fixture Options: Custom fixtures available according to customer requirements
Technical Specifications
Parameter 100KN 300KN 600KN 1000KN
Max Load (KN) 100 300 600 1000
Range Whole journey didn't sub-file, equivalent 3 grade
Test Force Measuring Range 4%-100% FS
Test Force Resolution 0.01kN
Displacement Measurement Resolution (mm) 0.01
Max Tensile Test Space (mm) 550 650 750 -
Max Compression Space (mm) 380 460 - -
Diameter of Round Specimen Clamp Jaw (mm) Φ6-Φ26 Φ13-Φ40 - -
Pump Motor Power (KW) 1.1
Beam Moves Up/Down Motor Fixed Rate (KW) 0.75
Net Weight (Kg) 1600 1800 2000 2600
Product Images
LCD Digital Display Hydraulic Universal Testing Machine（ 100 , 300 , 600 ,1000KN ） LCD Digital Display Hydraulic Universal Testing Machine（ 100 , 300 , 600 ,1000KN ） LCD Digital Display Hydraulic Universal Testing Machine（ 100 , 300 , 600 ,1000KN ）
