Professional Rubber Testing Machine , 2.5 Grade Limiting Oxygen Index Tester For Plastics Rubber Foam
Professional Rubber Testing Machine , 2.5 Grade Limiting Oxygen Index Tester For Plastics Rubber Foam
Professional Rubber Testing Machine , 2.5 Grade Limiting Oxygen Index Tester For Plastics Rubber Foam
Professional Rubber Testing Machine , 2.5 Grade Limiting Oxygen Index Tester For Plastics Rubber Foam
Professional Rubber Testing Machine , 2.5 Grade Limiting Oxygen Index Tester For Plastics Rubber Foam
Professional Rubber Testing Machine , 2.5 Grade Limiting Oxygen Index Tester For Plastics Rubber Foam
Specifications
Brand Name :
ZL
Model Number :
ZL-3009
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
100 set per month
Delivery Time :
3-7 Days
Packaging Details :
Packaged in wooden case （fumigation free）
Combustion tube inner diameter :
AC220V 50Hz
Test items :
100mm
High combustion tube :
450mm
Flowmeter accuracy :
2.5 grade
Pressure gauge accuracy :
2.5 grade
Test environment :
Temperature:10—35℃ , Humidity:45%—75%
Input pressure :
0.2—0.3Mpa
Description
Professional Rubber Testing Machine, 2.5 Grade Limiting Oxygen Index Tester For Plastics Rubber Foam
Product Overview

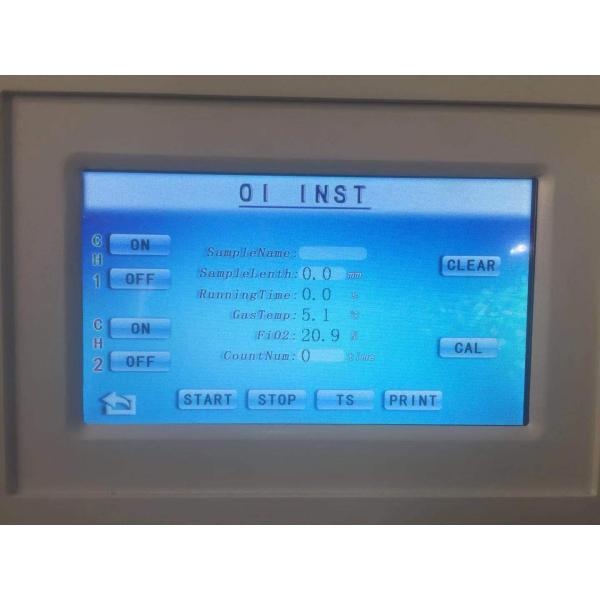

Professional Rubber Testing Machine, Limiting Oxygen Index Tester used to determine the minimum oxygen concentration required for polymer combustion. The instrument features simple operation with sensor measurement and digital display results, eliminating manual calculations.

Standards Compliance

Limiting Oxygen Index Tester meets the manufacturing conditions stipulated by national standard GB2406.

Applications

This equipment is essential for testing the burning performance of plastics, rubber, foam, and other materials. It provides accurate results with excellent reproducibility, making it indispensable for flame retardant material research and production.

Oxygen Index Definition

The Limiting Oxygen Index represents the minimum oxygen concentration (volume percentage) required for material combustion in an oxygen-nitrogen mixed gas stream:

  • Oxygen Index < 22: Flammable material
  • Oxygen Index 22-27: Combustible material
  • Oxygen Index > 27: Flame retardant material

Higher oxygen index values indicate better flame resistance.

Technical Specifications
Parameter Specification
Model Limiting Oxygen Index Tester
Combustion Tube Inner Diameter 100mm
Combustion Tube Height 450mm
Flowmeter Accuracy 2.5 Grade
Pressure Gauge Accuracy 2.5 Grade
Gas Source GB3863 Oxygen, GB3864 Nitrogen
Test Environment Temperature: 10-35℃, Humidity: 45-75%
Input Pressure 0.2-0.3Mpa
Working Pressure 0.05-0.15Mpa
Sample Type Self-supporting and non-self-supporting materials
Display Digital
Product Images
Professional Rubber Testing Machine , 2.5 Grade Limiting Oxygen Index Tester For Plastics Rubber Foam
Professional Rubber Testing Machine , 2.5 Grade Limiting Oxygen Index Tester For Plastics Rubber Foam
