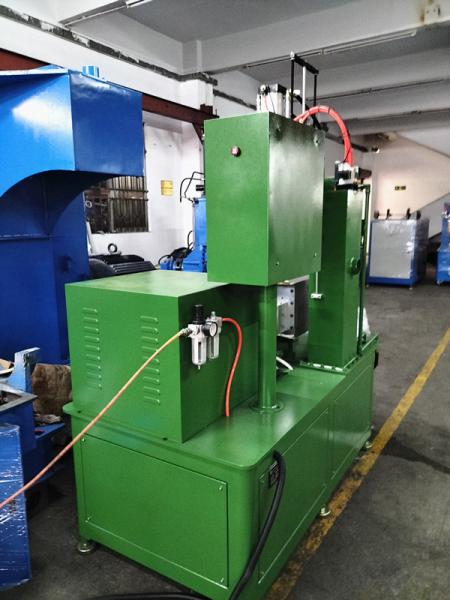

Rubber Testing Machine 0.5L 2L 5L 10L Laboratory Open - Close Banbury Mixer
Rubber Testing Machine 0.5L 2L 5L 10L Laboratory Open - Close Banbury Mixer
Rubber Testing Machine 0.5L 2L 5L 10L Laboratory Open - Close Banbury Mixer
Rubber Testing Machine 0.5L 2L 5L 10L Laboratory Open - Close Banbury Mixer
Rubber Testing Machine 0.5L 2L 5L 10L Laboratory Open - Close Banbury Mixer
Rubber Testing Machine 0.5L 2L 5L 10L Laboratory Open - Close Banbury Mixer
Rubber Testing Machine 0.5L 2L 5L 10L Laboratory Open - Close Banbury Mixer
Rubber Testing Machine 0.5L 2L 5L 10L Laboratory Open - Close Banbury Mixer
Specifications
Brand Name :
ZL
Model Number :
ZL-3011
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, D/P, D/A
Supply Ability :
30 sets per month
Delivery Time :
15-20 Days
Packaging Details :
Packaged in wooden case （fumigation free）
Product name :
Laboratory Open-close Banbury Mixer
Mixing volume :
0.5~10L
Main engine power :
3.7~15kw
Heating power :
4~10KW
Heating method :
Electric heating
Cooling method :
Water cooling
Speed ​control power :
5.5~18.5KW
Warranty :
24 month
Description
Rubber Testing Machine 0.5L 2L 5L 10L Laboratory Open-Close Banbury Mixer
Product Overview
The Laboratory Open-Close Banbury Mixer is a high-performance rubber testing machine available in 0.5L, 2L, 5L, and 10L capacities. Designed for research and development applications, this mixer features advanced coaxial separation technology and efficient mixing capabilities for various materials including zirconia, alumina, ceramic powder, magnetic powder, stainless steel powder, and metal powders.
Key Features
  • Twice the speed of traditional internal mixers, significantly improving efficiency and production capacity
  • Advanced coaxial separation technology with one-sided rotor shaft separation
  • High-end wear-resistant inner cavity material prevents material contamination
  • Suspended rotor design with open-closing mixing chamber for easy cleaning and color refilling
  • No blind corner design allows complete access for thorough cleaning
  • Wide process adaptability with compact structure and 80-100 rpm stepless speed regulation
  • Open mixing chamber design with three removable sides and drawer-type discharge
  • Zero residue discharge system, ideal for expensive anti-pollution materials
  • Uniform mixing with convenient color refueling and stable, noiseless transmission system
  • Electric heating with water cooling, featuring imported heating tubes (6KW maximum, 300°C)
  • Self-lubricating mechanical squeezing shaft seal with hydraulic compression method
Technical Specifications
Model 0.5L 1L 5L 10L
Mixing Volume 0.5L 1L 5L 10L
Main Engine Power 3.7KW 5.5KW 7.5KW 15KW
Heating Power 4KW 4.8KW 6KW 10KW
Heating Method Electric Heating
Cooling Method Water Cooling
Speed Control Power 5.5KW 7.5KW 11KW 18.5KW
Opening & Closing Device Cylinder Control Hydraulic Control
Documentation
Download the complete product brief for detailed specifications and technical information:
Download Product Brief (PDF)
Product Images
Rubber Testing Machine 0.5L 2L 5L 10L Laboratory Open - Close Banbury Mixer Rubber Testing Machine 0.5L 2L 5L 10L Laboratory Open - Close Banbury Mixer Rubber Testing Machine 0.5L 2L 5L 10L Laboratory Open - Close Banbury Mixer
