ISO 180 Digital Charpy Impact Tester with 3.5m/s Impact Velocity and 335mm Center-to-Center Distance
ISO 180 Digital Charpy Impact Tester with 3.5m/s Impact Velocity and 335mm Center-to-Center Distance
ISO 180 Digital Charpy Impact Tester with 3.5m/s Impact Velocity and 335mm Center-to-Center Distance
ISO 180 Digital Charpy Impact Tester with 3.5m/s Impact Velocity and 335mm Center-to-Center Distance
ISO 180 Digital Charpy Impact Tester with 3.5m/s Impact Velocity and 335mm Center-to-Center Distance
ISO 180 Digital Charpy Impact Tester with 3.5m/s Impact Velocity and 335mm Center-to-Center Distance
ISO 180 Digital Charpy Impact Tester with 3.5m/s Impact Velocity and 335mm Center-to-Center Distance
ISO 180 Digital Charpy Impact Tester with 3.5m/s Impact Velocity and 335mm Center-to-Center Distance
Specifications
Brand Name :
ZL
Model Number :
ZL-3016B
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
100 set per month
Delivery Time :
3-7 days
Packaging Details :
Packaged in wooden case （fumigation free）
Power :
220v 50hz
Impact velocity :
3.5m/s
Center-to-center distance :
335mm
Standards :
IS0 180
Color :
Blue or customized
Warranty :
12 month
Description

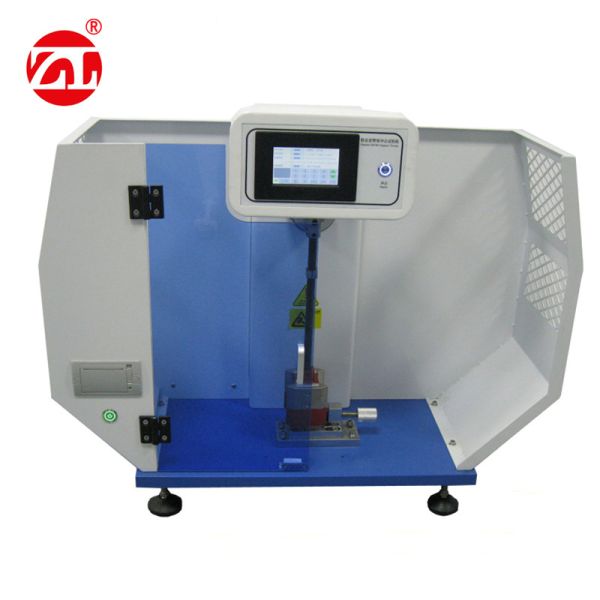

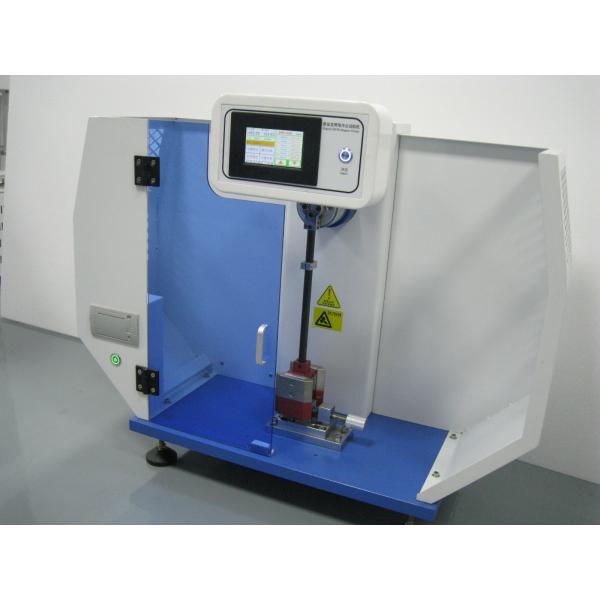

ISO 180 Electronic Charpy Impact Mechanical Testing Machine For Rubber Plastic
Product Overview

Digital Charpy Impact Tester designed for testing plastic pipes, plates, profiles, engineering plastics, fiberglass, ceramics, cast stone, insulation materials and other non-metallic materials for impact toughness resistance.

Key Features
  • Clamp jaws wedge from mouth design for free and fast clamping
  • Latest development with advanced clamping technology
  • Digital display for precise measurement
Compliance Standards

ISO 180, GB/T 1843, GB/T 2611, JB/T 8761

Technical Specifications
Model Digital type Charpy Impact Tester
Charpy Energy 1, 2.75, 5.5 J | 11, 22 J
Impact Velocity 3.5 m/s
Pendulum Elevation 150°
Center-to-Center Distance 335 mm
Pendulum Torque PL1=0.53590 Nm, PL2.75=1.47372 Nm, PL5.5=2.94744 Nm | PL11=5.8949 Nm, PL22=11.7898 Nm
Impact Blade Radius R=22±0.2 mm
Sample Size Types 80×10×4 mm, 63.5×12.7×3.2 mm, 63.5×12.7×6.4 mm, 63.5×12.7×12.7 mm
Documentation
Download Technical Brief
Product Images
ISO 180 Digital Charpy Impact Tester with 3.5m/s Impact Velocity and 335mm Center-to-Center Distance ISO 180 Digital Charpy Impact Tester with 3.5m/s Impact Velocity and 335mm Center-to-Center Distance
