150° Pendulum Elevation Digital Charpy IZOD Impact Tester with 3.8 m/s Impact Velocity
150° Pendulum Elevation Digital Charpy IZOD Impact Tester with 3.8 m/s Impact Velocity
150° Pendulum Elevation Digital Charpy IZOD Impact Tester with 3.8 m/s Impact Velocity
150° Pendulum Elevation Digital Charpy IZOD Impact Tester with 3.8 m/s Impact Velocity
150° Pendulum Elevation Digital Charpy IZOD Impact Tester with 3.8 m/s Impact Velocity
150° Pendulum Elevation Digital Charpy IZOD Impact Tester with 3.8 m/s Impact Velocity
150° Pendulum Elevation Digital Charpy IZOD Impact Tester with 3.8 m/s Impact Velocity
150° Pendulum Elevation Digital Charpy IZOD Impact Tester with 3.8 m/s Impact Velocity
Specifications
Brand Name :
ZL
Model Number :
ZL-3016D
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Supply Ability :
100 set per month
Delivery Time :
5-7 days
Packaging Details :
Packaged in wooden case （fumigation free）
Power :
Electronic
Charpy energy :
7.5J,15J,25J,50J
Impact velocity :
3.8 m/ s
Pendulum elevation :
160°
Center-to-center distance :
380mm
Pendulum torque :
Pd2=1.0311N.m
Product name :
150° Pendulum Elevation Charpy IZOD Impact Rubber Plastic Testing Machine
Key words :
Charpy IZOD Impact
Description
150° Pendulum Elevation Charpy IZOD Impact Rubber Plastic Testing Machine
Product Overview

The 150° Pendulum Elevation Charpy IZOD Impact Testing Machine is a precision instrument designed for evaluating the impact toughness of various materials including plastics, rubber, and other non-metallic substances.

Technical Documentation
Download Technical Brief: ZL-3016E Digital IZOD and Charpy Impact Testing Machine
Machine Performance Features
  • Izod clamp jaws wedge from mouth design for optimal clamping
  • Free and fast clamping mechanism
  • Latest development featuring advanced engineering
Application Scope

Digital type Charpy Impact Tester suitable for plastic pipes, plates, profiles, engineering plastics, fiberglass, ceramics, cast stone, insulation materials and other non-metallic materials requiring impact toughness evaluation.

Compliance Standards

ISO 180, GB/T 1843, GB/T 2611, JB/T 8761

Technical Specifications
Parameter Specification
Charpy Energy 1, 2.75, 5.5 J | 11, 22 J
Impact Velocity 3.5 m/s
Pendulum Elevation 150°
Center-to-Center Distance 335 mm
Pendulum Torque PL1=0.53590 Nm, PL2.75=1.47372 Nm, PL5.5=2.94744 Nm | PL11=5.8949 Nm, PL22=11.7898 Nm
Impact Blade Radius R=22±0.2 mm
Sample Size Types 80×10×4 mm, 63.5×12.7×3.2 mm, 63.5×12.7×6.4 mm, 63.5×12.7×12.7 mm

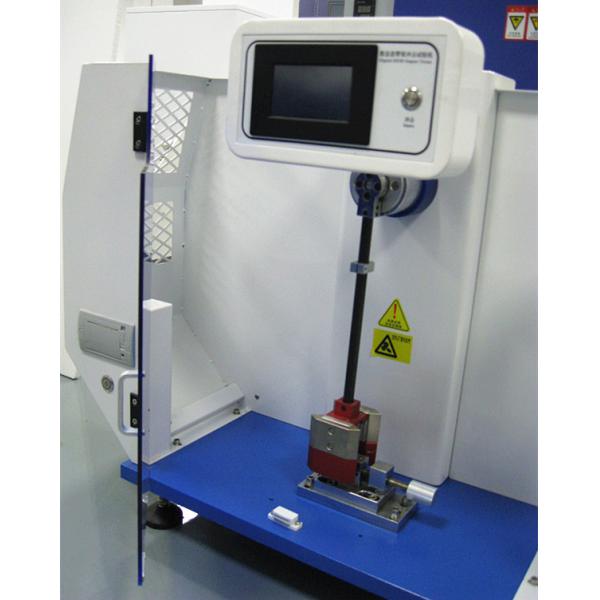

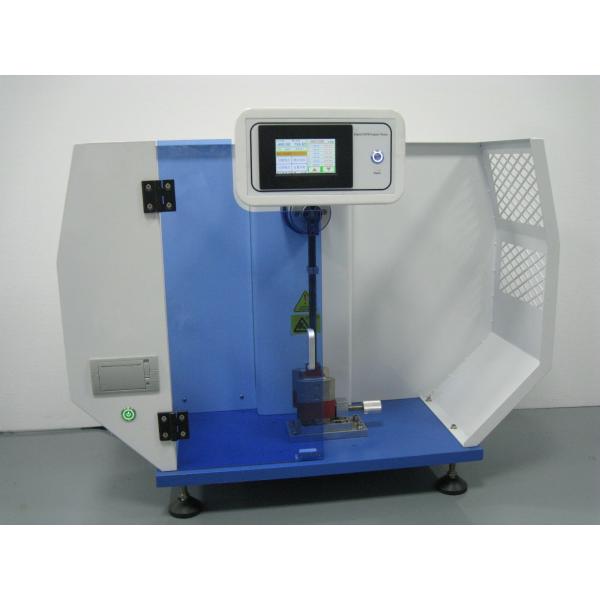

Product Images
150° Pendulum Elevation Digital Charpy IZOD Impact Tester with 3.8 m/s Impact Velocity 150° Pendulum Elevation Digital Charpy IZOD Impact Tester with 3.8 m/s Impact Velocity
