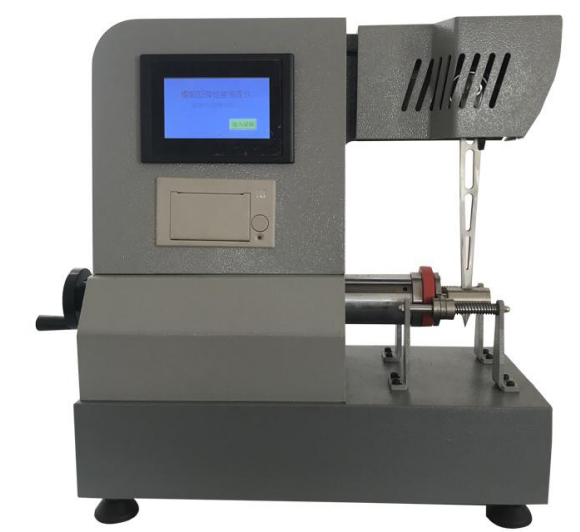

Touch Screen Rubber Rebound Tester ISO4662-1986 For Hardness Values 30IRHD-85IRHD
Touch Screen Rubber Rebound Tester ISO4662-1986 For Hardness Values 30IRHD-85IRHD
Specifications
Brand Name :
ZL
Model Number :
ZL-3007D
Certification :
ISO
Place of Origin :
China
MOQ :
set
Price :
Negotiable
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
200 set per month
Delivery Time :
5-7 days
Packaging Details :
Touch Screen Rubber Rebound Tester ISO4662-1986 for Rubber Hardness Values in 30IRHD-85IRHD will be Packaged in wooden case （fumigation free）
Name :
Touch Screen Rubber Rebound Tester ISO4662-1986 for Rubber Hardness Values in 30IRHD-85IRHD
Model :
ZL-3007D
Probe diameter :
φ12.5mm (standard size, non-standard can be customized)
Fixture :
inner diameter 20mm, outer diameter 35mm
Impact mass :
350g
Impact speed :
1.4m/s
Resolution :
0.18°
Maximum clamping thickness :
60mm
Impact angle :
90°±0.18°
Voltage :
220V
Description
Touch Screen Rubber Rebound Tester ISO4662-1986
Professional testing equipment for rubber hardness values in the range of 30IRHD-85IRHD
Product Overview
This intelligent rubber rebound tester is designed and manufactured according to national standard GB/T1681-2009 "Determination of the resilience of vulcanized rubber" and international standard ISO4662-1986 "Rubber-Determination of the resilience of vulcanized rubber".
Application Scope
Suitable for rubber and other products with international hardness values in the range of 30IRHD-85IRHD
Key Features
  • Independent research and development of touch operating system with accurate data collection
  • Built-in micro-printer supporting output of 5 test results in a single test
  • Simple and atmospheric interface with convenient operation
  • Supports standard samples and outputs non-standard samples separately
Technical Parameters
  • Probe diameter: φ12.5mm (standard size, non-standard can be customized)
  • Fixture: inner diameter 20mm, outer diameter 35mm
  • Impact mass: 350g
  • Impact speed: 1.4m/s
  • Resolution: 0.18°
  • Maximum clamping thickness: 60mm
  • Impact angle: 90°±0.18°
  • Voltage: 220V
Optional Punch and Fixture Combinations
Basic Features Size I Size II Size III Size IV Size V
Sample thickness d/mm 2±0.1 4±0.2 6.3±0.3 12.5±0.5 25±1
Punch diameter D/mm 2±0.05 4±0.1 6.3±0.1 12.5±0.1 25±0.2
Minimum diameter of sample/mm 9 15 20 25 50
Maximum diameter of sample/mm 25 45 53 53 70
Clamping ring inner diameter/mm 5 8 12 20 36
Clamping ring outer diameter/mm 10 16 22 35 55
* The green mark indicates the default configuration standard punch
Touch Screen Rubber Rebound Tester ISO4662-1986 For Hardness Values 30IRHD-85IRHD
Thanks for your support to Zhongli!
