Specifications
Brand Name :
ZL
Model Number :
ZL-3007A
Certification :
CE,ISO
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
50 set / month
Delivery Time :
4-7 work days
Packaging Details :
Lab Rubber Impact Flexible and Elasticity Testing Machine Rubber Rebound Tester is Packaged within wooden case.
Instruction Range :
0-100%
Marking scale :
1%
Adjustable range of specimen thickness :
0~60mm
Scale mark :
1mm
Dimension :
62*12*33cm
Weight :
38KG
Description

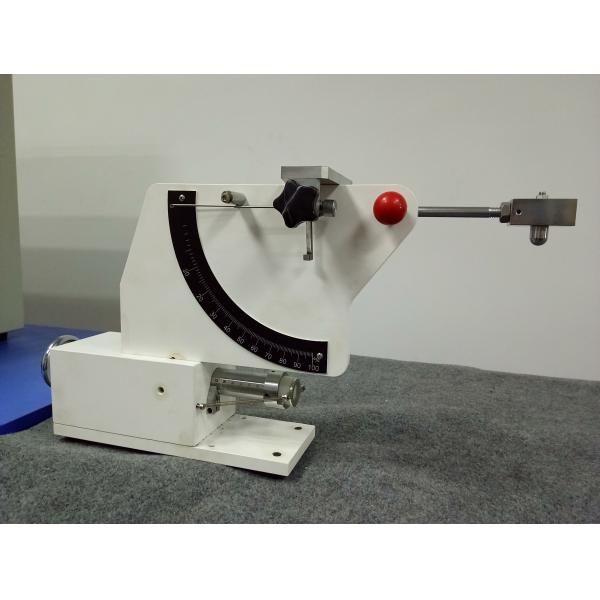

Lab Rubber Impact Flexible and Elasticity Testing Machine
This pendulum-type impact testing machine measures the rebound elasticity of vulcanized rubber with nominal hardness between 30-85 IRHD. Designed for precision laboratory testing, it delivers accurate results for rubber flexibility and elasticity analysis.
Equipment Overview
The 0.5J energy pendulum-type impact testing machine is specifically designed to measure rebound values for vulcanized rubber within the nominal hardness range of 30-85 IRHD, providing reliable flexibility testing data.
Key Features
  • Automatic display and storage of test results with direct printing capability
  • Comprehensive data display including angle energy measurements
  • Integrated safety protection devices with emergency stop button for secure testing operations
Compliance Standards
Meets GB/T 1681 "Determination of vulcanized rubber elasticity" requirements and conforms to ISO 4662 standards for reliable, standardized testing.
Industry Application
Specifically designed for rubber manufacturing and quality control applications.
Technical Specifications
Parameter Specification
Instruction Range 0~100%
Marking Scale 1%
Adjustable Specimen Thickness Range 0~60mm
Scale Mark 1mm
Measuring Elastic Feeding Device Flexible test material measuring device (compliant with DIN53512 and ISO4662 specifications)
Dimensions 62*12*33cm
Weight 38kg
