Specifications
Product Name :
51 KG Digital Packing Board Ring Crush Strength Testing Equipment
Power :
220V 50HZ
Weight :
Approx. 51 kg
Test Speed :
12.7 mm/min
Edge Crush Sample :
25×100 mm
Ring Crush Sample :
152×12.7 mm
Compressed Space :
500mm
Display Mode :
LED
Brand Name :
ZL
Model Number :
ZL-9003B
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
1500 USD / SET
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
100 set / month
Delivery Time :
5-7 days
Packaging Details :
51 KG Digital Packing Board Ring Crush Strength Testing Equipment is packaged within woodencase
Description
51 KG Digital Packing Board Ring Crush Strength Testing Equipment
51 KG Digital Packing Board Ring Crush Strength Testing Equipment
Product Description
This machine is used to test the compression resistance degree of corrugated paper and kraft paper in upright direction under specific conditions. It can also perform flat crush strength tests, compression resistance tests, sticky degrees tests, and other compression tests. Equipped with advanced high-precision load devices and load display, test load values can be displayed and read directly.
ZL-9003B Digital type ring crush strength testing machine documentation
Applications
The Crushing Strength Testing Instrument is applied to test anti-rupture strength for raw paper, corrugated cardboard, leather, cloth, and synthetic leather. It records force values, automatically keeps the maximum fracture strength value, and offers 100 times better resolution than needle display types. This equipment is essential for quality control.
Standards Compliance
ISO2759, GB/T1539, QB/T1057, ASTMD3786, GB/T6564, GB/T465
Industry Applications
Used for testing anti-breaking strength of packaging boxes in electronics, electrical appliances, wires, hardware, bicycles, handbags, food, footwear, clothing, furniture, and more.
Available Accessories
  • Side Pressure Strength Test: Ring Crush Tester + Parallel Cutting Knife + Side Pressure Counselling Piece
  • Ring Crush Strength Test: Ring Crush Tester + Ring Crush Sampler + Ring Crush Fixture
  • Bonding Strength Test: Ring Crush Tester + Hood Strength Stripping Frame
  • Flat Crush Strength Test: Ring Crush Tester + Flat Crush Sampler
Technical Specifications
Capacity (Optional) 10, 20, 50, 100, 200 kg
Resolution 1/250,000
Precision < 0.25%
Display Mode LED
Platen 100×100 mm or depending on flat crush sample diameter
Compressed Space 500mm
Platen Parallelism ± 0.05 mm
Ring Crush Sample 152×12.7 mm
Edge Crush Sample 25×100 mm
Test Speed 12.7 mm/min
Dimension (L×W×H) 790×510×1060 mm
Weight Approx. 51 kg
Power 1ø, AC220V, 1.5A
Standards TAPPI-T472; T808, T810, T811, T818; JIS-P8126; GBT2679.6, GBT2679.8, GBT2679.17

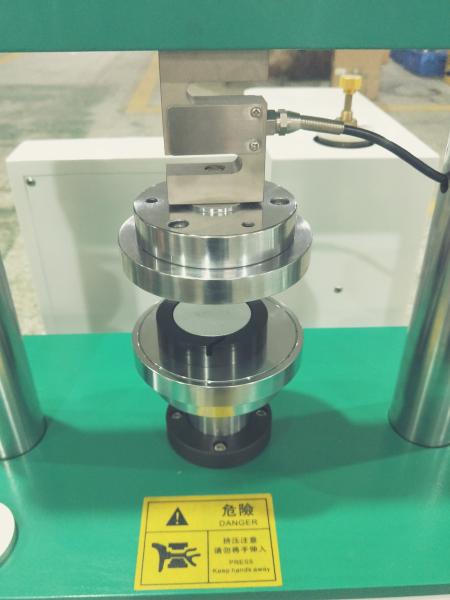

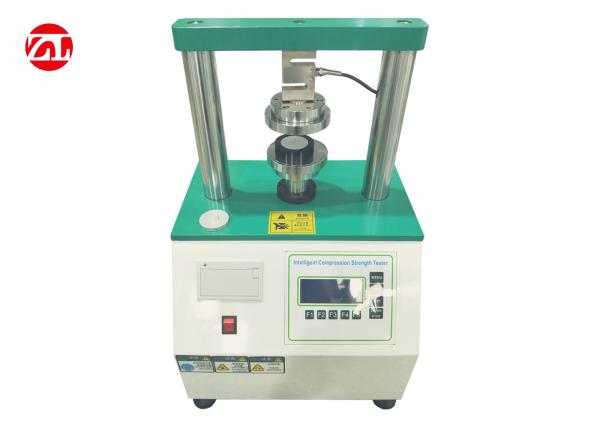

Product Images
51 KG Digital Packing Board Ring Crush Strength Testing Equipment 51 KG Digital Packing Board Ring Crush Strength Testing Equipment 51 KG Digital Packing Board Ring Crush Strength Testing Equipment
Manufacturer Information
Dongguan Zhongli Instrument Technology Co., Ltd. is located in Dongguan, Guangdong, China. We are a technology company specializing in the development, research, production, and sales of test equipment.
Our company operates with technical support, market orientation, and fundamental human resources. We maintain a highly professional, experienced, and innovative research team along with a dedicated production team. We provide the most advanced technology, stable quality, competitive pricing, and excellent after-sales service including installation, commissioning, professional training, and 24-hour technical support.
We offer comprehensive laboratory solutions including laboratory design, planning, renovation, equipment selection, installation, training, maintenance, comparative testing management systems, and one-stop certification technology services.
51 KG Digital Packing Board Ring Crush Strength Testing Equipment
