Specifications
Product name :
Ring Crushing Strength Testing Machine （PLC control）
Resolution :
1/250,000
Precision :
< 0.25%
Display Mode :
LED
Compressed Space :
500mm
Test Speed :
12.7 mm/min
Weight :
Approx. 51 kg
Power :
1ø, AC220V, 1.5A
Brand Name :
ZL
Model Number :
ZL-9003
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
60 Sets
Delivery Time :
5-8 work days
Packaging Details :
Ring Crushing Strength Testing Machine（PLC control) is packaged within wooden case.
Description
IS02759 ASTMD3786 Ring Crushing Strength Testing Machine PLC Control
Product Overview

The IS02759, ASTMD3786 Ring Crushing Strength Testing Machine with PLC control is designed for comprehensive compression testing of packaging materials including corrugated paper and kraft paper.

Applications

This testing machine is widely used to measure anti-breaking strength of packaging boxes across multiple industries:

  • Electronics and electrical appliances
  • Wires, hardware, and bicycles
  • Handbags, footwear, and clothing
  • Food packaging and furniture
Machine Description

This advanced testing instrument evaluates compression resistance of corrugated paper and kraft paper in upright direction under specific conditions. The equipment features:

  • Multiple testing capabilities including flat crush strength, compression resistance, and sticky degrees testing
  • High-precision load measurement system with direct digital display
  • Automatic maximum value recording for fracture strength analysis
  • Enhanced resolution with 100x improvement over needle display types
Compliance Standards

This testing machine meets the following international standards:

  • IS02759
  • GB/T1539, QB/T1057
  • ASTMD3786
  • GB/T6564, GB/T465
  • TAPPI-T472; T808, T810, T811, T818
  • JIS-P8126
  • GBT2679.6, GBT2679.8, GBT2679.17
Technical Specifications
Parameter Specification
Capacity (Optional) 10, 20, 50, 100, 200 kg
Resolution 1/250,000
Precision < 0.25%
Display Mode LED
Platen 100×100 mm or depending on sample diameter
Compressed Space 500mm
Platen Parallelism ± 0.05 mm
Ring Crush Sample 152×12.7 mm
Edge Crush Sample 25×100 mm
Test Speed 12.7 mm/min
Dimension (L×W×H) 790×510×1060 mm
Weight Approx. 51 kg
Power 1ø, AC220V, 1.5A
Available Test Configurations
  • Side Pressure Strength Test: Ring Crush Tester + Parallel cutting knife + Side pressure counselling piece
  • Ring Crush Strength Test: Ring Crush Tester + Ring crush sampler + Ring crush fixture
  • Bonding Strength Test: Ring Crush Tester + Hood strength stripping frame
  • Flat Crush Strength Test: Ring Crush Tester + Flat crush sampler
Product Images

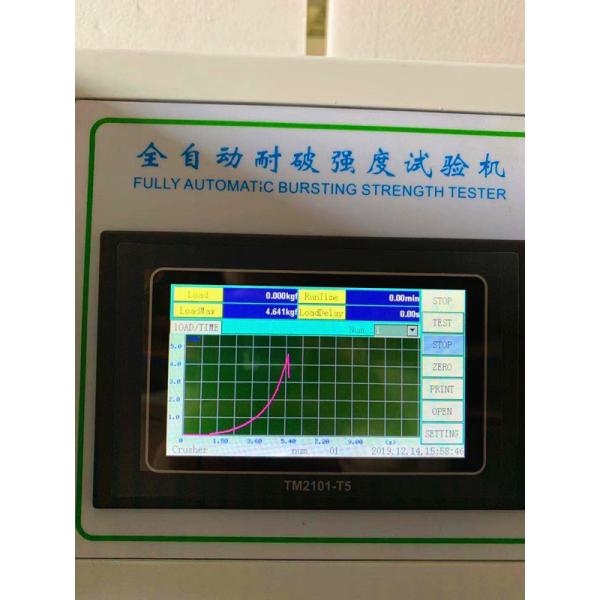

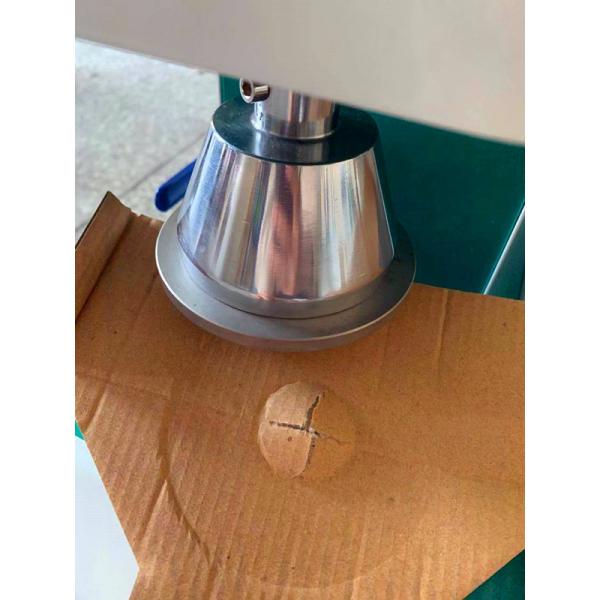

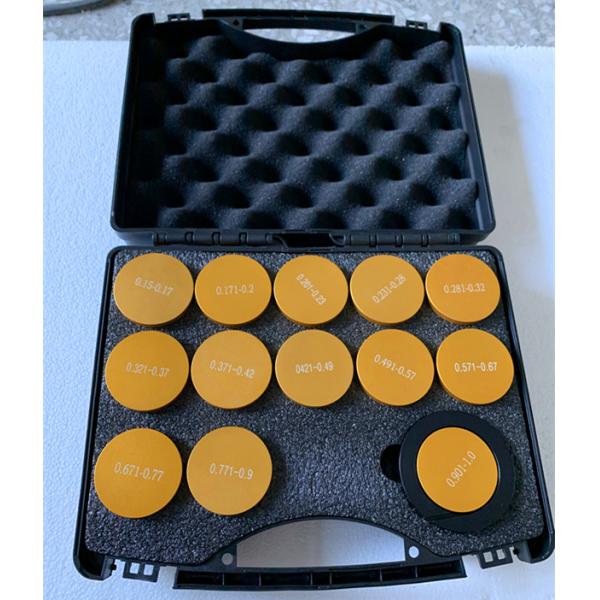

IS02759 ASTMD3786 Ring Crushing Strength Testing Machine PLC Control IS02759 ASTMD3786 Ring Crushing Strength Testing Machine PLC Control IS02759 ASTMD3786 Ring Crushing Strength Testing Machine PLC Control
