Adhesive Tape Peel Roller Test Machine For Initial Tack Test
Adhesive Tape Peel Roller Test Machine For Initial Tack Test
Adhesive Tape Peel Roller Test Machine For Initial Tack Test
Adhesive Tape Peel Roller Test Machine For Initial Tack Test
Adhesive Tape Peel Roller Test Machine For Initial Tack Test
Adhesive Tape Peel Roller Test Machine For Initial Tack Test
Specifications
Product name :
Adhesive Tape Peel Roller Test Machine Used to Initial Tack Test
Angles :
20-60°(adjustable)
Plate Material :
5mm thick glass
Ball Material :
Stainless Steel
Ball Size :
1/32”-1”
Run Distance :
100mm
Weight :
6 kg
Brand Name :
ZL
Model Number :
ZL-2601
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
60 Sets
Delivery Time :
5-8 work days
Packaging Details :
Adhesive Tape Peel Roller Test Machine Used to Initial Tack Test is packaged within wooden case.
Description
Adhesive Tape Peel Roller Test Machine For Initial Tack Test
Product Overview

Adhesive Tape Peel Roller Test Machine Used to Initial Tack Test

The tape initial tack tester is suitable for pressure sensitive adhesive tape, medical patch, self-adhesive label, protective film and other production industries to conduct the initial tack test of related products.

Standards Compliance

This instrument is designed according to the standard GB4852.

Test Principle

Adopting the oblique rolling method. The initial adhesion of the sample is tested by the short-term contact between the steel ball and the adhesive surface of the pressure-sensitive tape sample with a slight pressure, measuring the adhesion of the adhesive tape to the steel ball.

Operating Instructions

Place the sticking surface of the test piece upward and position it on the test board inclined at 30 degrees. Take the steel ball from the largest number and roll it down in sequence. Record the number of the ball that can stick to the test piece for more than 5 seconds.

Technical Specifications
Parameter Specification
Ball Material Stainless Steel
Angles 20-60° (adjustable)
Ball Size 1/32" - 1"
Plate Material 5mm thick glass
Run Distance 100mm
Dimensions (L×W×H) 400×190×280 mm
Weight 6 kg

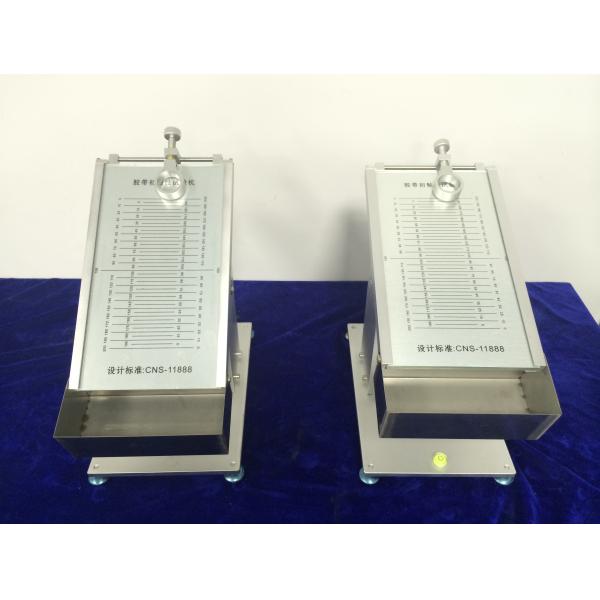

Product Image
Adhesive Tape Peel Roller Test Machine For Initial Tack Test
