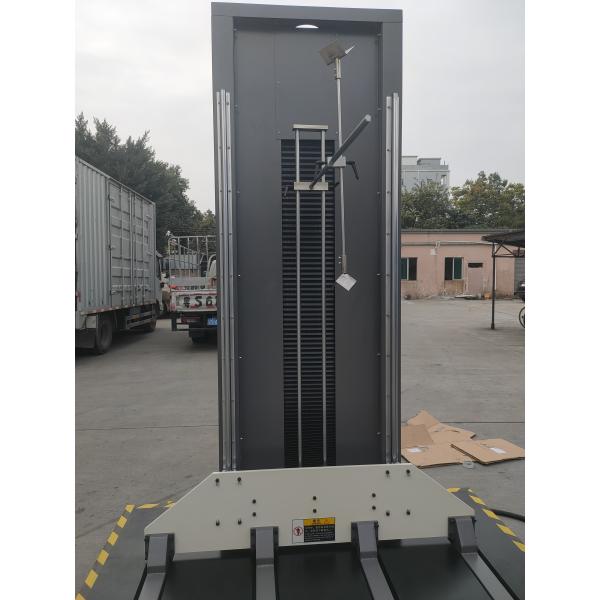

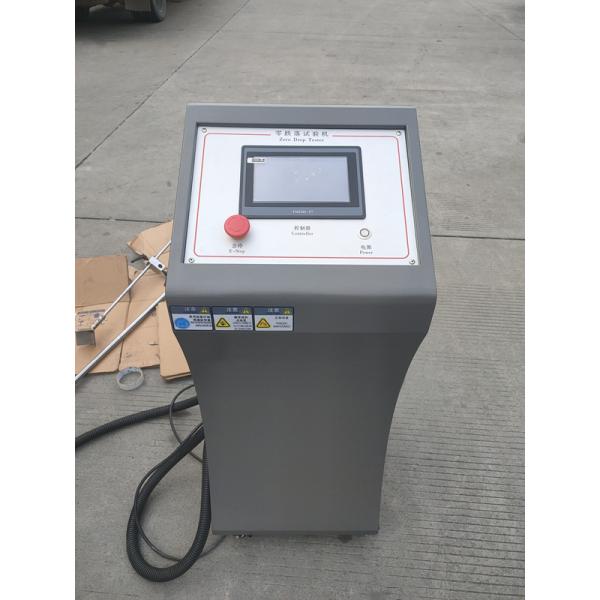

Max Load 300kg Zero Drop Anti Impact Strength Tester For Packaging
Max Load 300kg Zero Drop Anti Impact Strength Tester For Packaging
Max Load 300kg Zero Drop Anti Impact Strength Tester For Packaging
Max Load 300kg Zero Drop Anti Impact Strength Tester For Packaging
Max Load 300kg Zero Drop Anti Impact Strength Tester For Packaging
Max Load 300kg Zero Drop Anti Impact Strength Tester For Packaging
Max Load 300kg Zero Drop Anti Impact Strength Tester For Packaging
Max Load 300kg Zero Drop Anti Impact Strength Tester For Packaging
Specifications
Product name :
Max Load 300kg Precision Zero Drop Anti - impact Strength Tester for Packaging
Dropping height range :
0～1400mm
Testing way :
Edge, side, corner
Machine weight :
3400kg
Power consumption :
2.5 KVA
Power supply :
AC 380V ,15Aor specified by user
Working condition :
25°± 3°，55~85% RH
Key words :
Zero Drop
Brand Name :
ZL
Model Number :
ZL-1615
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
60 Sets
Delivery Time :
5-8 work days
Packaging Details :
Precision Zero Drop Anti - impact Strength Tester for Packaging is packaged within wooden case.
Description
Max Load 300kg Zero Drop Anti Impact Strength Tester For Packaging
Precision Zero Drop Anti-Impact Strength Tester for Packaging

This machine is designed to evaluate the anti-impact strength of packaging materials during shipping and handling processes.

Application

Evaluates the anti-impact strength in the process of shipping and carrying packaging materials.

Download Technical Specifications (PDF)
Key Features
  • Testing support table adopts double track with oil-pressure ascending system; height displayed digitally
  • Suitable for drop testing of larger size packages; easy and fast loading/unloading of testing samples
  • Can test package edges, sides, and corners at very low testing heights, starting from zero
  • Base board features high stiffness and flatness; deformation ≤ 0.1mm on any 100mm² area under 10kg static load
  • Digital display shows dropping height with accuracy within ±2% of actual height
Technical Specifications
Model RS-DP-P-10 RS-DP-P-12 RS-DP-P-14
Max Load (kg) 200kg 200kg 300kg
Dropping Height Range (mm) 0-1000mm 0-1200mm 0-1400mm
Max Sample Size L×W×H (mm) 1000×1000×1000 1200×1200×1200 1200×1200×1200
Base Size L×W×H (mm) 1900×1600×60 1900×1800×60 2300×2200×60
Testing Method Edge, Side, Corner
Support Table Size L×W×H (mm) 1900×1800×2800 1900×1800×3100 2300×2200×3400
Machine Weight (kg) 2400 2800 3400
Power Consumption (KVA) 2.5
Power Supply AC 380V, 15A or specified by user
Working Conditions 25°±3°C, 55-85% RH
Max Load 300kg Zero Drop Anti Impact Strength Tester For Packaging
Max Load 300kg Zero Drop Anti Impact Strength Tester For Packaging
