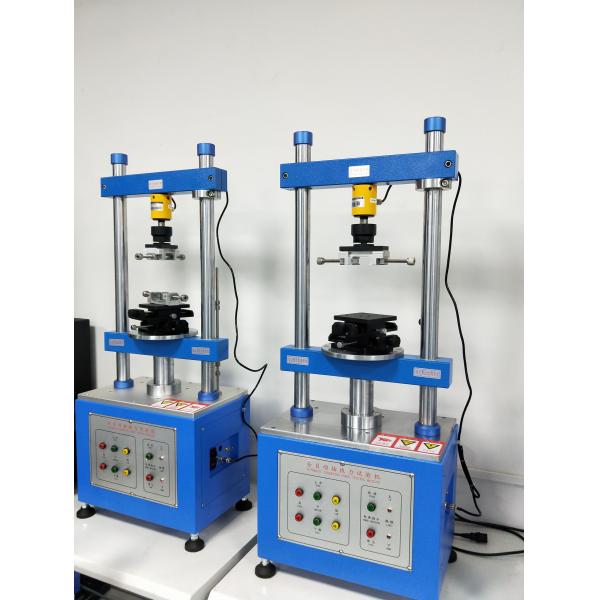

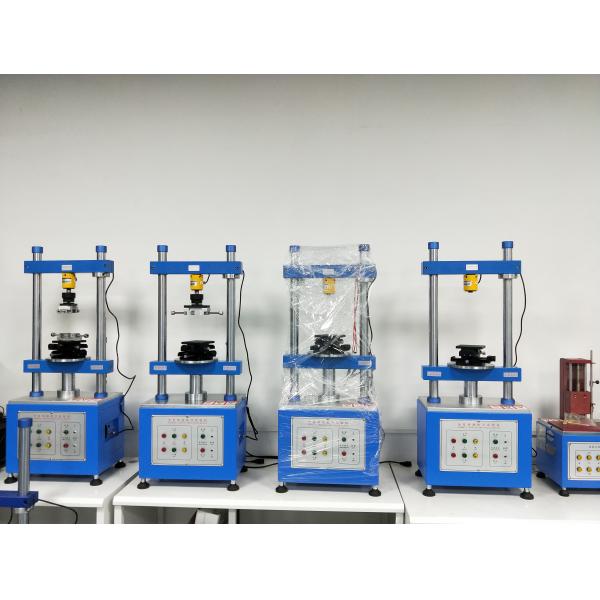

Push Pull Force Mobile Phone Test Equipment
Push Pull Force Mobile Phone Test Equipment
Push Pull Force Mobile Phone Test Equipment
Push Pull Force Mobile Phone Test Equipment
Push Pull Force Mobile Phone Test Equipment
Push Pull Force Mobile Phone Test Equipment
Push Pull Force Mobile Phone Test Equipment
Push Pull Force Mobile Phone Test Equipment
Specifications
Brand Name :
ZL
Model Number :
ZL-2809
Certification :
ISO
Place of Origin :
China
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
30 SET PER MONTH
Delivery Time :
7-10 Days
Packaging Details :
Packaged within safety wooden case (fumigation free)
Material :
Sheet metal + spray paint
Power :
220V 50HZ
Usage :
Push Pull Strength test
Color :
Blue or customized
Load capacity :
2 KG,5Kg,20KG,50KG
Resolution :
0.001kg
Load precisoin :
±0.2%
Maximum travel :
150mm
Test speed :
0~200mm/min(0~600mm/min
Speed precsion :
0.5%
Dynamical System :
servo motor
Warranty :
12 month
Description
\n
\n
Push Pull Force Mobile Phone Test Equipment
\n
\n

Connector Push Pull Strength Test Equipment is designed for comprehensive testing of various connectors, featuring precise force measurement and advanced data analysis capabilities.

\n
\n
\n
Applications
\n
    \n
  • Connector push/pull strength testing for plug insertion and extraction force measurement
    • \n
  • Automatic center adjustment device with specialized grips for precise insertion force measurement
    • \n
  • Chinese Windows-based software for easy operation and comprehensive data storage
    • \n
  • Compatible with motional impedance test system for combined insertion force and impedance testing
    • \n
  • High-precision loading components with servo motor drive system
    • \n
\n
Test Capabilities
\n
    \n
  • Test hole plug connector
    • \n
  • Test row of the connector plug
    • \n
  • Life test plug connector
    • \n
  • Single-pin connector and plastic retention test
    • \n
  • Connector test
    • \n
  • Impedance measurements (optional)
    • \n
  • Various compression, tensile breaking strength tests
    • \n
\n
\n
\n
Technical Specifications
\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n
ParameterSpecification
Load Capacity2kg, 5kg, 20kg, 50kg
Unit Conversiongf, kgf, lbf, N
Resolution0.001kg
Load Precision\u00b10.2%
Maximum Travel150mm
Test Speed0~200mm/min (0~600mm/min)
Speed Precision0.5%
X,Y Axis Movement Range0~75mm
Displacement Resolution0.01mm
Dynamic Systemhigh-performance Servo Motor
Dimensions360\u00d7260\u00d7940mm
Weight70kg
Power Supply220V, 50Hz / Customized
\n
\n
\nPush Pull Force Mobile Phone Test Equipment\nPush Pull Force Mobile Phone Test Equipment\n
\n
\n
Optional Dynamic Impedance Test System (Model 101R)
\n
    \n
  • Simultaneous testing of insertion force/tension/pressure and contact resistance values
    • \n
  • Dynamic resistance curve generation with load-stroke curves
    • \n
  • High-speed testing capability: 100 tests/second for accurate impedance change detection
    • \n
  • Suitable for mobile phones and PDA battery connector testing
    • \n
  • Pressure, stroke, and impedance curve analysis
    • \n
  • Multi-functional impedance value acquisition based on power or travel itinerary
    • \n
  • Maximum impedance region detection with multi-point function
    • \n
  • Single test and life test capabilities
    • \n
  • Load-stroke-impedance life curve generation
    • \n
\n
\n
