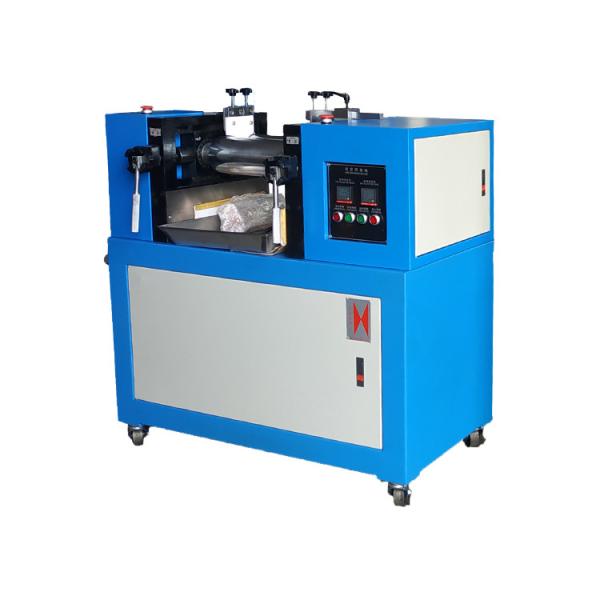

120mm Rubber Lab Two Roll Mixing Mill With Electrical Heating
120mm Rubber Lab Two Roll Mixing Mill With Electrical Heating
120mm Rubber Lab Two Roll Mixing Mill With Electrical Heating
120mm Rubber Lab Two Roll Mixing Mill With Electrical Heating
120mm Rubber Lab Two Roll Mixing Mill With Electrical Heating
120mm Rubber Lab Two Roll Mixing Mill With Electrical Heating
120mm Rubber Lab Two Roll Mixing Mill With Electrical Heating
120mm Rubber Lab Two Roll Mixing Mill With Electrical Heating
Specifications
Brand Name :
ZL
Model Number :
ZL-3018
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
60 Sets
Delivery Time :
5-8 work days
Packaging Details :
120mm Rubber Lab Two Roll Mixing Mill With Electrical Heating is packaged within wooden case.
Product name :
120mm Rubber Lab Two Roll Mixing Mill With Electrical Heating
Diameter of roll :
120mm
Length of roller face :
350mm
Mixing Capacity :
0.002-2.8kg
Front roll surface speed :
19 rpm
Friction ratio :
1:1.35
Roll gap range :
0-6mm
Driving Power :
2.2Kw
Description
120mm Rubber Lab Two Roll Mixing Mill With Electrical Heating
This precision-engineered two roll mixing mill delivers exceptional performance for masticating and kneading natural rubber, synthetic rubber, EVA, or PVC pellets with various chemical materials. Designed primarily for plasticizing, hot milling, and mixing of natural and synthetic rubber in rubber product manufacturing facilities.
Applications
This rubber plastic open two roll mixing mill is extensively utilized in the rubber and plastics industry for polymer mixing applications including PVC, color master batch production, and carbon powder processing. The system comprises rolls, bearings, gap adjusting mechanisms, electric control systems, and comprehensive safety features.
Key Features
  • Multiple roll construction options: drilled roll, bored roll, grooved roll
  • Customizable speed ratios tailored to specific formulas and processing requirements
  • Anneal-treated frame, frame cap, and base for stress relief and durability
  • Chilled cast alloy iron rolls with hardness reaching 70HB
  • Integrated brake and emergency stop systems for personnel and equipment safety
  • Automatic oil or grease lubrication for easy maintenance and machine protection
  • Ergonomically designed control system ensuring operator safety
  • Flexible roll nip adjustment: manual or electric operation
Intelligent Control System
Advanced PLC control system with real-time data recording and export capabilities for kneading time, temperature (mixing chamber and rotors), ram pressure, current, torque, and recipe codes. The system supports up to 20 mixing steps and 20 recipe storage spaces, with remote process recipe import and data monitoring via Ethernet communication interface compatible with MES systems.
Technical Specifications
Model ZL-3018-76 ZL-3018-120 ZL-3018-160 ZL-3018-200 ZL-3018-230 ZL-3018-300 ZL-3018-400
Diameter of roll (mm) 76 120 160 200 230 300 400
Length of roller face (mm) 300 350 350 500 650 650 900
Mixing Capacity (kg) 0.002-0.6 0.002-2 0.002-2.8 0.002-5 0.005-10 1-15 5-30
Front roll surface speed (rpm) 19 19 19 19 19 19 19
Friction ratio 1:1.30 1:1.35 1:1.35 1:1.35 1:1.27 1:1.27 1:1.27
Roll gap range (mm) 0-3 0-6 0-6 0-8 0-12 0-12 0-15
Driving Power (KW) 1 1.5 2.2 7.5 11 30 37
Machine weight (kg) 160 460 660 860 1960 2960 3800
Overall dimension (mm) 1100x400x1180 1100x550x1380 1200x650x1380 2200x750x1380 2200x950x1580 2600x950x1580 5295x1789x170
Additional Specifications:
Heating Mode: Electricity heating, Oil Heating (optional)
Cooling Mode: Water Cooling (optional)
Roll Temperature Range: Room temperature - 300℃
Roll Hardness: HRC 50-60
Temperature Accuracy: ±2℃ (high accuracy PID micro computer controller)
Safety Features: 6 safety buttons with optional safety guard
Power Requirements: 380V 3 phase 50-60Hz
Product Images

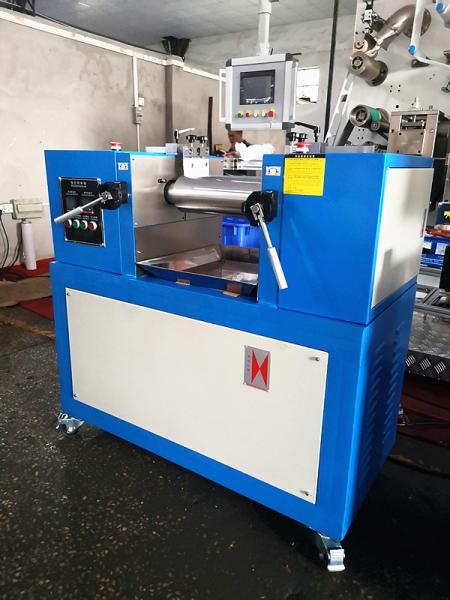

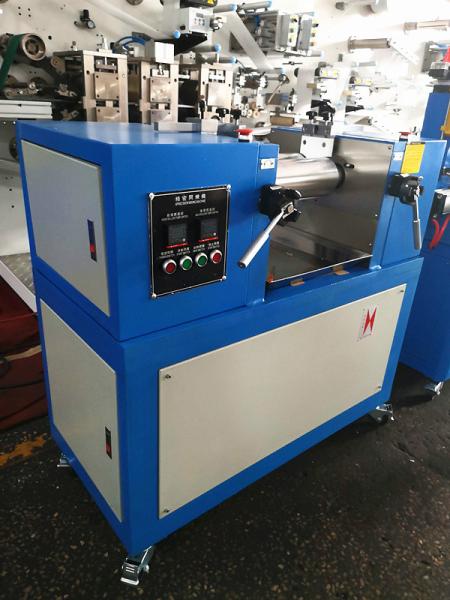

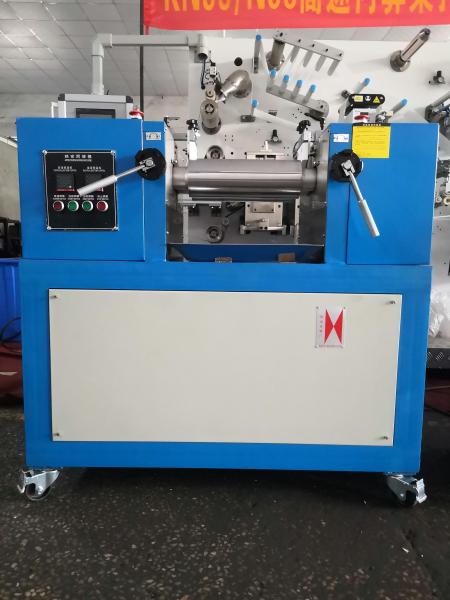

120mm Rubber Lab Two Roll Mixing Mill With Electrical Heating 120mm Rubber Lab Two Roll Mixing Mill With Electrical Heating 120mm Rubber Lab Two Roll Mixing Mill With Electrical Heating
