XK-400 Laboratory PVC Mixer Plastic Two Roll Rubber Mixing Mill Machine
XK-400 Laboratory PVC Mixer Plastic Two Roll Rubber Mixing Mill Machine
XK-400 Laboratory PVC Mixer Plastic Two Roll Rubber Mixing Mill Machine
XK-400 Laboratory PVC Mixer Plastic Two Roll Rubber Mixing Mill Machine
XK-400 Laboratory PVC Mixer Plastic Two Roll Rubber Mixing Mill Machine
XK-400 Laboratory PVC Mixer Plastic Two Roll Rubber Mixing Mill Machine
XK-400 Laboratory PVC Mixer Plastic Two Roll Rubber Mixing Mill Machine
XK-400 Laboratory PVC Mixer Plastic Two Roll Rubber Mixing Mill Machine
XK-400 Laboratory PVC Mixer Plastic Two Roll Rubber Mixing Mill Machine
XK-400 Laboratory PVC Mixer Plastic Two Roll Rubber Mixing Mill Machine
XK-400 Laboratory PVC Mixer Plastic Two Roll Rubber Mixing Mill Machine
XK-400 Laboratory PVC Mixer Plastic Two Roll Rubber Mixing Mill Machine
Specifications
Temperature Accuracy :
± 2 ℃ (we adopt the high accuracy PID micro computer controller)
Length of roller face :
350mm
Power :
380V 3 phase 50-60hz
Color :
Red (can be customized）
Brand Name :
ZL
Model Number :
ZL-3018
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
60 Sets
Delivery Time :
5-8 work days
Packaging Details :
Small Rubber Two Roll Open Mixing Mill Silicone Mixing Mill Lab Rubber Mixing Mill is packaged within wooden case.
Safety device :
It have 6 safety buttons and safety guard is option
Roll Hardness :
HRC 50 ~ 60
Mixing Capacity :
0.002-2.8kg
Driving Power :
1kw
Description
\n
\n
\n
XK-400 Laboratory PVC Mixer Plastic Two Roll Rubber Mixing Mill Machine
\n
Professional laboratory mixing equipment designed for polymer processing in rubber and plastics industries.
\n
\n
\n
Applications
\n
Widely used in rubber and plastics industry for polymer mixing applications including PVC and color master batch processing.
\n
\n
\n
Technical Documentation
\nDownload Technical Specifications (PDF)\n
\n
\n
Mixing Process
\n
For continuous operation, rubber material is added from one end of the roller and passes through multiple times according to mixing process specifications, with finished rubber strips continuously cut from the opposite end.
\n
\n
\n
Technical Specifications
\n
General Parameters
\n
\nRoll Hardness: HRC 50 ~ 60
\nTemperature Accuracy: \u00b12\u2103 (High accuracy PID micro computer controller)
\nPower Requirements: 380V 3 phase 50-60Hz
\nHeating Mode: Electricity heating, Oil Heating (optional)
\nCooling Mode: Water Cooling (optional)
\nRoll Temperature Range: Room temperature - 300\u2103

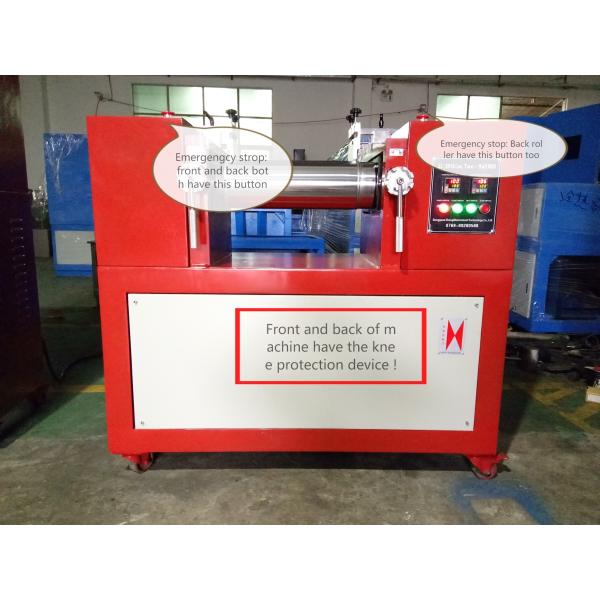

\nSafety Features: 6 safety buttons with optional safety guard\n
\n
Model Specifications
\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n
ParameterZL-3018-76ZL-3018-120ZL-3018-160ZL-3018-200ZL-3018-230ZL-3018-300ZL-3018-400
Diameter of roll (mm)76120160200230300400
Length of roller face (mm)300350350500650650900
Mixing Capacity (kg)0.002-0.60.002-20.002-2.80.002-50.005-101-155-30
Front roll surface speed (rpm)19191919191919
Friction ratio1:1.301:1.351:1.351:1.351:1.271:1.271:1.27
Roll gap range (mm)0-30-60-60-80-120-120-15
Driving Power (KW)11.52.27.5113037
Machine weight (kg)160460660860196029603800
Overall dimension (mm)1100x400x11801100x550x13801200x650x13802200x750x13802200x950x15802600x950x15805295x1789x170
\n
\n
\n
Product Image
\nXK-400 Laboratory PVC Mixer Plastic Two Roll Rubber Mixing Mill Machine\n
\n
\n
Advantage Services
\n
    \n
  • R&D and design department for standard and custom machine solutions
    • \n
  • Over 50 years of manufacturing experience with advanced machinery
    • \n
  • Two specialized laboratories: Environmental and Physical testing facilities
    • \n
  • Adequate monthly stock to meet urgent customer requirements
    • \n
  • Annual sales exceeding ,000,000 USD with 30,000\u33a1 manufacturing base
    • \n
  • 120 technical staff capable of handling large budget projects
    • \n
\n
\n
\n
Technical Support & Quality Assurance
\n
    \n
  • SUS Stainless plate cut by advanced laser machines for precision
    • \n
  • Anti-rust electrostatic painting on all machine exteriors
    • \n
  • Premium imported electronic components: ABB, industrial automation, high-performance, Saginomiya, Danfoss, Emkarate, Omron
    • \n
  • High-quality imported compressors: BOEK, TECUMSEH
    • \n
  • Designed for service life exceeding 10 years
    • \n
\n
\n
