Compliant with standards: According to GB/T2812-2006, it also meets the requirements of the European standard EN397 test standard.

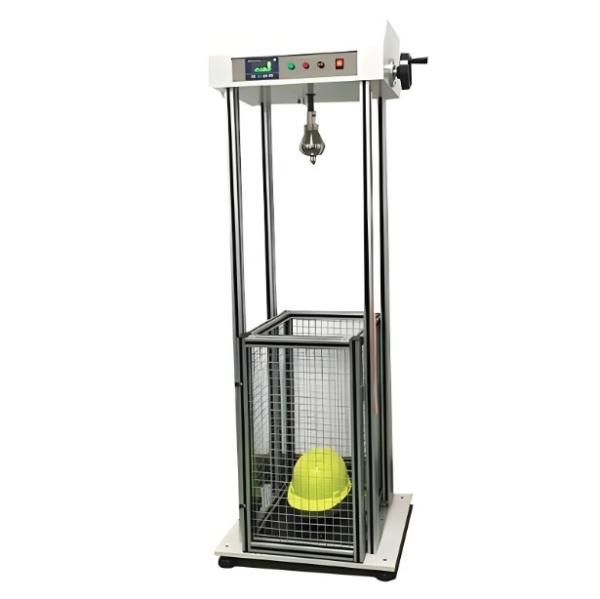

Scope of application: Specialized in testing the impact resistance and penetration resistance of safety helmets. The aluminum headform wearing the safety helmet is mounted on a highly sensitive force sensor, and then impacted from a height of 1m using a 5kg steel hammer. The force value at the moment of impact is measured by the highly sensitive force sensor to determine the impact absorption performance of the safety helmet. After replacing the impact hammer head, the penetration resistance test can be conducted.

Main features: The impact and wear resistance testing machine for safety helmets is equipped with LCD display, which is safe to use, reliable, and has high measurement accuracy.

Main technical parameters and their accuracy:

1. Weight of impact hammer: 5 kilograms

2. Weight of puncture resistant knife: 3 kilograms

3. The impact head is hemispherical: 96mm

4. Aluminum head mold: one for size 2 and one for size 5 respectively

5. Impact method: guided descent

6. Impact height: 1m, 2m, 2.5m (optional)

7. Force measurement range: 0-60000 N

8. Force sensor: precision piezoelectric type

9. Display method: LED LCD displays at noon, automatically maintains maximum force value, and prints test data

10. Frequency response range: 5--1000Hz

11. Lifting device: Electric lifting with upper and lower limit positions

12. Penetration resistance impact hammer weight: 3+0.050kg

13. Penetration resistance impact hammer cone angle: 60 °

14. Penetration resistance impact hammer tip radius: r=0.5 mm

Main configuration sheet

One computer

A set of computer control software

One color inkjet printer

One test host

Aluminum head mold: one for size 2 and one for size 5 respectively

Force sensor: precision piezoelectric type

Lifting device: Electric lifting with upper and lower limit positions
