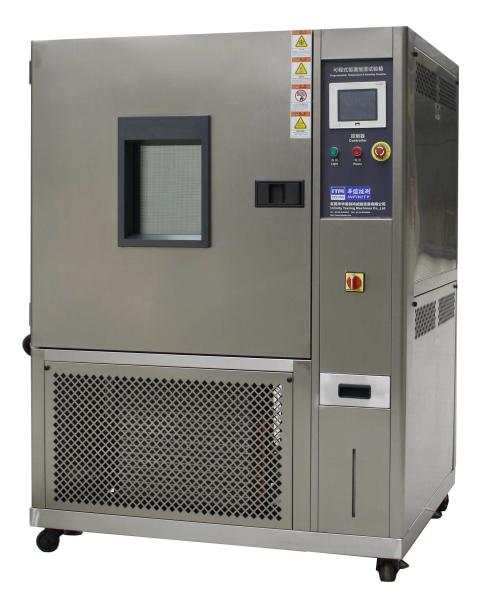

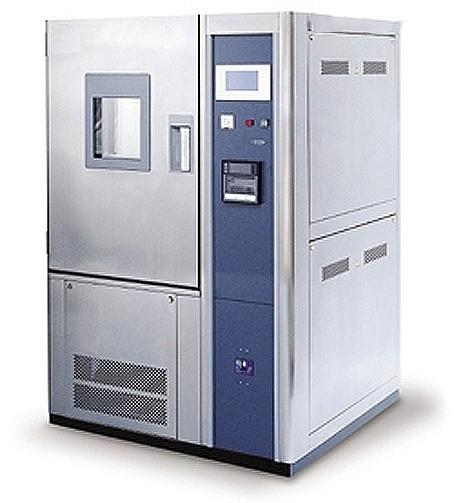

100L Programmable Constant Temperature And Humidity Test Chamber 600W CF8467
100L Programmable Constant Temperature And Humidity Test Chamber 600W CF8467
100L Programmable Constant Temperature And Humidity Test Chamber 600W CF8467
100L Programmable Constant Temperature And Humidity Test Chamber 600W CF8467
100L Programmable Constant Temperature And Humidity Test Chamber 600W CF8467
100L Programmable Constant Temperature And Humidity Test Chamber 600W CF8467
100L Programmable Constant Temperature And Humidity Test Chamber 600W CF8467
100L Programmable Constant Temperature And Humidity Test Chamber 600W CF8467
Specifications
Price :
US$2000-$30000
Place of Origin :
China
Brand Name :
CHENGFENG
Certification :
ISO,CE
MOQ :
1 Set
Packaging Details :
Wooden cases
Delivery Time :
10 Work Days
Payment Terms :
T/T,Cash,L/C,Western Union,MoneyGram
Supply Ability :
5 units per month
power :
600W
Voltage :
220V
Temperature fluctuations :
±0.5℃
Material :
Stainless steel
Temperature resolution :
0.01℃
Product volume :
100L
Power supply voltage :
AC220V ±10%, 50Hz
Temperature range :
-40 ℃ to+150 ℃
External dimensions :
780 * H1600 * D1450mm
Equipment weight :
350KG
Temperature uniformity :
≤2.0℃
Temperature deviation :
±2.0℃
Description
100L Programmable Constant Temperature And Humidity Test Chamber 600W CF8467
100L Programmable Constant Temperature And Humidity Test Chamber 600W CF8467
1. Unique selling point: 12 years of professional research and development, only solving problems for customers. 2. Professional team: A technical research and development team with 12 years of experience, leading in professional knowledge and practical skills. 3. Quality assurance: The company strictly controls quality standards, meets customer standard requirements, and exceeds customer expectations. 4. Innovation ability: Develop products that meet customer needs, and years of experience make product development forward-looking and leading. 5. Competitive advantages: reliable quality, flexible and applicable equipment performance, reasonable equipment prices, high delivery speed, and guaranteed customer after-sales service. 6. Provide customized solutions for customers: fully understand customer needs, provide personalized solutions, and completely solve customer problems. 7. Reliability and credibility: The company operates steadily for a long time, winning the long-term trust of customers and solving their concerns.
100L Programmable Constant Temperature And Humidity Test Chamber 600W CF8467
100L Programmable Constant Temperature And Humidity Test Chamber 600W CF8467
Specification
Ignition method
High voltage electronic ignition
Material
Mirror stainless steel
Steam nozzle
Ф 0.9 ± 0.03mm
Standard power
500W adjustable
Standards
GB/T2423.1-2008 (IEC68-2-1)
Humidity deviation
±3.0%RH
Pressure relief balance
One over-temperature temperature gauge
Cold condenser
Finned air-cooled condenser
Steam generator
Finned laminated evaporator

Temperature measurement
70.00 ℃, 200.00 ℃
Humidity measurement
1.0% - 100% RH
Controller
7-inch color touch screen
Product application:
This equipment is used to expose the product to a closed and constant temperature (such as high temperature, low temperature)/temperature and humidity (such as constant damp heat, alternating damp heat) environment, and verify the parameter changes or other physical property changes of the product after a period of environmental stress test. It is applicable to "environmental simulation" experiments for research and development and quality control in scientific research fields such as
electrical engineering, electronics, electrical appliances, LED, optoelectronics, semiconductors, new energy, automobiles, components, medical devices, aerospace materials, etc.
Standards:
Test A of GB/T2423.1-2008 (IEC68-2-1) : Low-temperature Test Method
Test B of GB/T2423.2-2008 (IEC68-2-2) : High-temperature Test Method
GB/T2423.3-2006 (IEC68-2-78) Test Ca: Constant Damp Heat Test
GB/T2423.4-2008 (IEC68-2-30) Test Db: Alternating Wet Heat Test
Air conditioning channel:
1.Working principle
That is, the central control system amplifies the temperature and humidity signals collected from the box, converts them analog-to-digital, corrects them, and then compares them with the set values (target values) of temperature and humidity. The deviation signal is obtained through PID operation and outputs a regulation signal to automatically control the output of the heater/humidifier/compressor, achieving a dynamic balance in the loss of cold and hot air in the test chamber. The heating, cooling and constant temperature and humidity control of the studio are now being carried out.
2.Air supply mode
The air passage is designed on the rear side of the box interior. The stainless steel centrifugal fan is installed on the upper rear side of the box interior. The air is forced to supply air from the top and return air from the bottom through the guide louver at
the outlet of the fan volute for forced air circulation.
Customer Photos
100L Programmable Constant Temperature And Humidity Test Chamber 600W CF8467
Packing & Delivery
100L Programmable Constant Temperature And Humidity Test Chamber 600W CF8467
FAQ
Q:Are you factory or trading company?
A:We are factory in Dongguan City, Guangdong Province,China.Near Shenzhen or Guangzhou.

Q:What kind of certificate you have?
A:ISO9001 Certification, CE Certification.

Q:What is the lead time of the product?
A: Generally 7-15 days after getting the deposit.

Q:How about the payment term?
A: T/T, by cash, western union, or L/C.

Q:How about the warranty term?
A:1 year warranty,The engineer can teach the machine on the spot.
