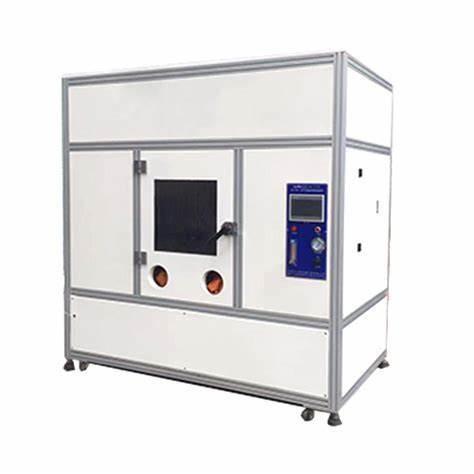

Vertical Horizontal Combustion Test Chamber With UL1581 Standard
Vertical Horizontal Combustion Test Chamber With UL1581 Standard
Vertical Horizontal Combustion Test Chamber With UL1581 Standard
Vertical Horizontal Combustion Test Chamber With UL1581 Standard
Vertical Horizontal Combustion Test Chamber With UL1581 Standard
Vertical Horizontal Combustion Test Chamber With UL1581 Standard
Specifications
Price :
US$2000-$30000
Place of Origin :
China
Brand Name :
CHENGFENG
Certification :
ISO,CE
MOQ :
1 Set
Packaging Details :
Wooden cases
Delivery Time :
10 Work Days
Payment Terms :
T/T,Cash,L/C,Western Union,MoneyGram
Supply Ability :
5 units per month
warranty :
1 Year
model number :
CF8382
Application :
of wire and cable industry
Effective space :
2.4m (length) * 1m (width) * 1 .8m (height)
Dimensions :
2.4m (length) * 1m (width) * 2.5m (height)
Periphery :
3.0mm stainless steel edging
Air inlet :
4 in total
Stop ignition setting :
0-99.99 seconds arbitrary setting
Combustion count :
0-999999 times arbitrarily set
Trachea :
high-pressure trachea
Description

Combustion Testing Machine, Vertical and Horizontal Combustion Test Chamber, Produced in Strict Accordance with UL1581 Standard

Vertical Horizontal Combustion Test Chamber With UL1581 Standard
Vertical Horizontal Combustion Test Chamber With UL1581 Standard
Vertical Horizontal Combustion Test Chamber With UL1581 Standard
Specification
Standards:
It is produced in strict accordance with UL1581 sect 1080.1~1080.14 standard, and has been approved by Guangzhou Meihua UL company, and meets the VW-1 (V-ertical-specimen) Flame Test combustion test standard. It is applicable to the VW-1 of UL1581, UL13, UL444 and UL1655 and the FT-1 and FT-2 test standards of CSA. It is economical and widely used by a large number of wire and cable industry.
Test Method:
Adjust the flame height, put the top of the flame under the specimen, burn for 15 seconds, extinguish for 15 seconds, repeat 5
times to check the specimen incineration, burn, extinguish time and the number of repetitions, and can be operated automatically.
Parameter Details:
The entire test was carried out in a sealed laboratory with a volume of 4.32 cubic meters.
Combustion chamber:
1. Effective space: 2.4m (length) * 1m (width) * 1 .8m (height)
2. Dimensions: 2.4m (length) * 1m (width) * 2.5m (height)
3. Material:
Exterior: square steel frame structure, thickened 1.5mm steel plate electrostatic baking dark green paint;
Interior: Electrostatic baked black lacquer.
4. Observation window:
two left and right sliding windows; The viewing window is tempered glass;
The surrounding is edged with SUS304 stainless steel;
Size: 730mm (height) * 420mm (width).
5. Operation window: 4 in total
Inner space size: ф150mm;
Periphery: 3.0mm stainless steel edging;
Sealed with long-arm leather gloves with a length of 600mm;
Total peripheral dimensions: ф220mm.
6. Exhaust system:
two spiral exhaust fans;
The sealing push-pull plate is 2.0mm stainless steel;
Both sides are provided with sliding grooves;
One set of remote control operation device: a. two sets of steel rope type b. two sets of pulleys
7. Air inlet: 4 in total
Size: ф160mm;
The sealing push-pull plate is a 2.0mm stainless steel plate;
There are sliding grooves on both sides.
8. Bottom Fixing Stand:
Size: 2.4m (length) * 1m (width) * 0.7m (height);
Using 60mm*60mm*4mm angle iron, electrostatic baking dark green paint;
Foot pulleys: six, including 4 pulleys with locks.
9. Lighting equipment: adopt an anti-fog and smoke-proof round lamp
Control part
1. Burning indication 1pcs
2. Combustion setting: 0-99.99 seconds arbitrary setting
3. 1 stop ignition indicator
4. Stop ignition setting: 0-99.99 seconds arbitrary setting
5. Combustion count: 0-999999 times arbitrarily set
6. It has the functions of automatic combustion, combustion, stop ignition and counting
7. It has vertical/horizontal conversion function
8. It has automatic ignition function
9. It has manual/automatic conversion function
10. The ignition is a high-pressure ignition method
11. The test part is connected with the control, using aviation plug, and the contact is very close
Test part:
1. Nozzle:
1. The angle is 20 degrees
2. 1 internal flame regulating valve
3. 1 external flame regulating valve
4. 1 internal flame contact point marking ruler
5. 1 low flag ruler
6. 1 test length ruler
7. 1 flame gauge
8. Test fixing frame: a. Material: steel plate after fine processing and paint b. Color: pure black
9. The test box is made of SUS304 stainless steel after fine machining
10. The bottom of the test frame: a. two pieces of 2.0mm steel plate b. Size: 700mm (length) × 450mm (width) c. Color: black paint
for electrostatic baking
11. Vertical and horizontal tests are designed independently
12. The test box is additionally extended with a long arm push rod
13. 3 horizontal burning signs
Air source control:
1. Gas: Methane is recommended (provided by the user)
2. Flowmeter: 1 (American Dwyer VA20430 type)
3. U-tube pressure gauge: 1 (Dwyer 1230-36 type)
4. 1 gas tee joint
5. Trachea: high-pressure trachea
Vertical Horizontal Combustion Test Chamber With UL1581 Standard
Dongguan Chengfeng Testing Equipment Co., Ltd is Located in Dongguan City, Guangdong Province, China, we are a high tech enterprise which is specialized in development and manufacturing, The most professional OEM manufacturer in the country,we mainly produce Fire Testing Equipment, Construction Materials Testing Equipment, Plastic Testing Equipment, Wire Testing Equipment, Environmental Test Chamber, Tensile Testing Machine, and others CHENGFENG's testing equipment is widely used in various fields: scientific institutions, colleges, inspection institutions, auto parts, electronics, electronics, LEDs, photoelectricity, mobile, plastic rubber, telecommunications, chemical industry, aerospace, building materials and products, wire and cable, textile and fabric, etc .
All CHENGFENG testing equipment is designed according to international test standards, such as ISO, ASTM, DIN, EN, GB, BS, JIS, UL, TAPPI, AATCC, IEC, VDE, CSA, CEN, and so on
Customer Photos
Vertical Horizontal Combustion Test Chamber With UL1581 Standard
1. Unique selling point: 12 years of professional research and development, only solving problems for customers.
2. Professional team: A technical research and development team with 12 years of experience, leading in professional knowledge and practical skills.
3. Quality assurance: The company strictly controls quality standards, meets customer standard requirements, and exceeds customer expectations.
4. Innovation ability: Develop products that meet customer needs, and years of experience make product development forward-looking and leading.
5. Competitive advantages: reliable quality, flexible and applicable equipment performance, reasonable equipment prices, high delivery speed, and guaranteed customer after-sales service.
6. Provide customized solutions for customers: fully understand customer needs, provide personalized solutions, and completely solve customer problems.
7. Reliability and credibility: The company operates steadily for a long time, winning the long-term trust of customers and solving their concerns.
Packing & Delivery
Vertical Horizontal Combustion Test Chamber With UL1581 Standard
FAQ
Q:Are you factory or trading company?
A:We are factory in Dongguan City, Guangdong Province,China.Near Shenzhen or Guangzhou.

Q:What kind of certificate you have?
A:ISO9001 Certification, CE Certification.

Q:What is the lead time of the product?
A: Generally 7-15 days after getting the deposit.

Q:How about the payment term?
A: T/T, by cash, western union, or L/C.

Q:How about the warranty term?
A:1 year warranty,The engineer can teach the machine on the spot.
