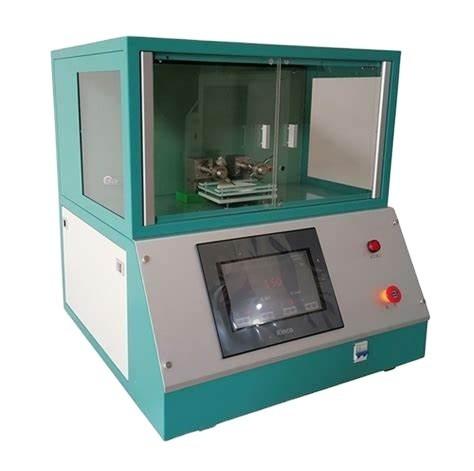

CF8413 Arc Resistance Testing Machine GB/T1411-2002 GB1411 IPC650
CF8413 Arc Resistance Testing Machine GB/T1411-2002 GB1411 IPC650
Specifications
Price :
US$2000-$30000
Place of Origin :
China
Brand Name :
CHENGFENG
Certification :
ISO,CE
MOQ :
1 Set
Packaging Details :
Wooden cases
Delivery Time :
10 Work Days
Payment Terms :
T/T,Cash,L/C,Western Union,MoneyGram
Supply Ability :
5 units per month
warranty :
1 YEAR
customized support :
OEM, ODM, OBM, Software reengineering
place of origin :
Guangdong, China
brand name :
DAXIAN
model number :
DX8341
power :
Electronic
Tungsten steel electrode :
56mm * 7mm * 30mm
Current control accuracy: :
± 10%
Test voltage continuously adjustable :
0-20 KV
Arc on/off time error :
<5ms
Test voltage control error :
≤ 1%
Test current :
10MA-20MA-30MA-40MA optional
Test method :
intermittent arc, continuous arc
Electrical capacity :
1.5 KVA
Output voltage :
AC 0-20 KV;
. Input voltage :
AC 220 V
Description

CF8413 Arc Resistance Testing Machine GB/T1411-2002 GB1411, IPC650

CF8413 Arc Resistance Testing Machine GB/T1411-2002 GB1411 IPC650

Scope of application: The assessment of arc resistance performance of electrical insulation materials such as plastics, resin adhesives, and insulating paints used in industries such as motors, appliances, and household appliances is mainly applicable to the testing of arc resistance performance of solid insulation materials such as plastics, films, resins, mica, ceramics, glass, insulating oil, insulating paint, cardboard, and other media.

Features: The arc resistance testing machine adopts computer control, and the test curve can be observed online during the test process; Automatically store test conditions and test results data, and can access, display, and print them

Experimental principle: Used to test the arc resistance of solid insulation materials; The material to be tested will be exposed to a high voltage, gradually increasing small current environment until a stable conductive channel is formed on the surface of the material. This time is the arc resistance time of the material.

Mainly applicable to: GB/T1411-2002 Test of resistance to high voltage and low current arc discharge of dry solid insulation materials.

Compliance with standards: This tester is designed and manufactured in accordance with GB1411, IPC650, IEC 61621, ASTMD495, and complies with testing methods such as JEC 149 and UL 746A.
