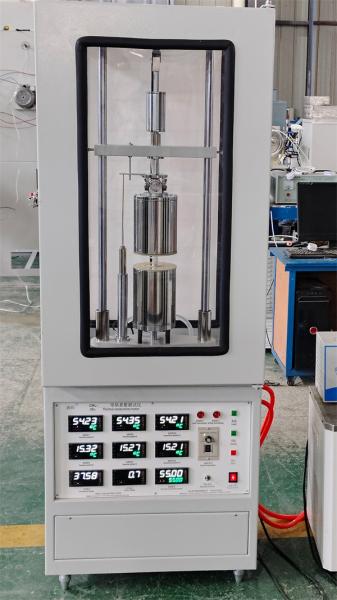

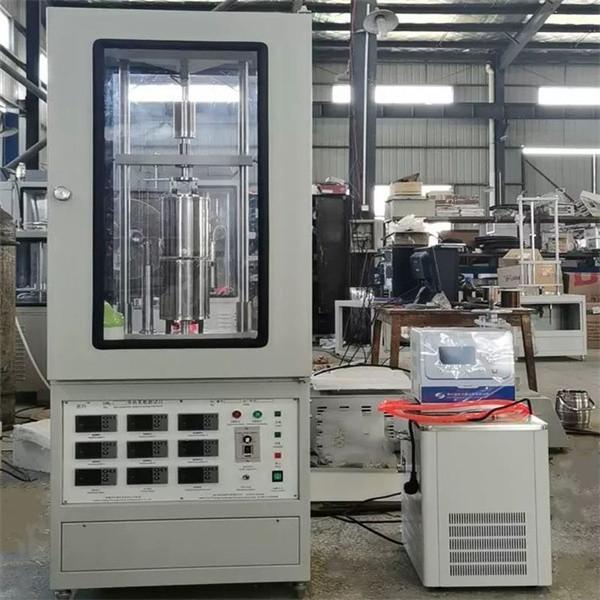

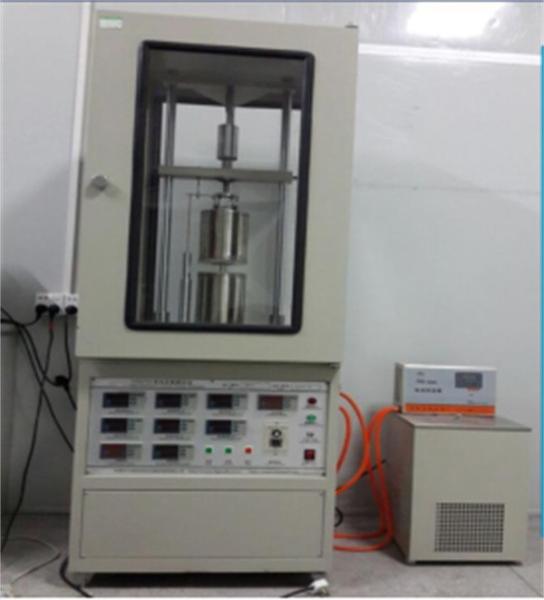

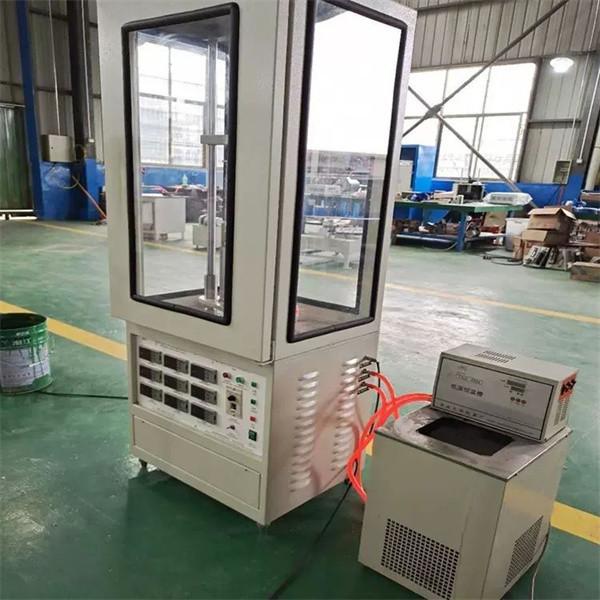

Thermal Conductivity Tester Heat Flow Method

Scope of application:

Mainly tests the thermal resistance of thin thermal conductors, solid electrical insulation materials, thermal conductive silicone grease, resins, rubber, ceramics, aluminum substrates and other materials, as well as the contact thermal resistance at solid interfaces and the thermal conductivity of materials. The detection material is a solid sheet, and with a surrounding frame, it can detect powder and paste materials. Widely used in material thermal conductivity analysis and testing in universities, research institutions, quality inspection departments, and production plants.

Standards:

MIL-I-49456A (Insulation Sheet, Thermal Conductive Resin, Thermal Conductive Fiberglass Reinforcement); ASTM D5470-12 (Test Standard for Heat Transfer Properties of Thin Thermal Conductive Solid Electrical Insulation Materials), etc.

Main parameters:

1. Sample size: Φ 30mm (or a square sample with a diagonal of 30mm);

2. Sample thickness: 0.02-20mm

3. Hot pole temperature control range: room temperature -99.99 ℃

4. Cold pole temperature control range: 0-99.0 ℃

5. Thermal conductivity test range: 0.05-45 W/m * k

6. Thermal resistance test range: 0.1~0.000005m2 * K/W.

7. Pressure measurement range: 0-1000N

8. Displacement measurement range: 0-30.00mm

9. Test accuracy: better than 3%

10. Experimental method: a, Thermal resistance test of samples under different pressures. b, Material thermal conductivity testing. c, Contact thermal resistance test.

11. Computer fully automated testing and implementation of data printing and output.

12. Voltage: 220V, power less than 1KW.

Working conditions:

Environmental temperature: 10 ° C to 35 ° C

Relative humidity: ≤ 80% RH.

Packaging & Shipping:

FAQ:

A:We are factory in Dongguan City, Guangdong Province,China.Near Shenzhen or Guangzhou.Q:Are you factory or trading company?

Q:What kind of certificate you have?

A:CE Certification.

Q:What is the lead time of the product?

A: Generally 7-15 days after getting the deposit.

Q:How about the payment term?

A: T/T, by cash, western union, or L/C.

Q:How about the warranty term?

A:1 year warranty,The engineer can teach the machine on the spot.
