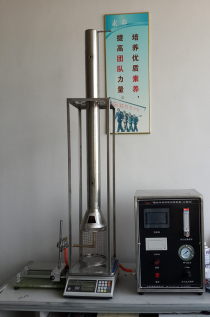

Flame-retardant Wood Combustion Test Device - Fire tube method
Flame-retardant Wood Combustion Test Device - Fire tube method
Specifications
Brand Name :
CHENGFENG
Model Number :
CF8378
Certification :
ISO,CE
Place of Origin :
China
MOQ :
1 Set
Price :
US$2000-$30000
Payment Terms :
T/T,Cash,L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
5 units per month
Delivery Time :
10 Work Days
Packaging Details :
Wooden cases
Ambient temperature :
-5℃ to 30℃
Environmental humidity :
≤70% Working voltage: AC 220V ±10V
Microcomputer control :
Automatic ignition and timing
Real-time temperature display :
Data printing
Gas source :
Natural gas, liquefied petroleum gas, purity 95% (provided by the user)
Specimen size (mm) :
1016±1×19±1×10±1
Temperature error :
180±10 ° C
Timing accuracy :
0.1 seconds
The approximate external dimensions are :
680mm×320mm×1500mm
Equipment weight :
25kg
Description

Scope of application

It is mainly applicable to the inspection of the combustion quality loss rate and flame burning time of interior decoration wood boards and wood products (d≤20mm) that have undergone flame-retardant impregnation treatment under specified combustion conditions.

Compliant with standards

It was developed in accordance with the technical parameters stipulated in GA/T42.2-92.

Main parameters
Ambient temperature: -5℃ to 30℃
Environmental humidity: ≤70% Working voltage: AC 220V ±10V
Microcomputer control Automatic ignition and timing;
Real-time temperature display; Data printing.
Gas source: Natural gas, liquefied petroleum gas, purity 95% (provided by the user);
Timing accuracy: 0.1 seconds;
Temperature error: 180±10 ° C
The approximate external dimensions are: 680mm×320mm×1500mm.
Specimen size (mm) : 1016±1×19±1×10±1. Quantity: 3 pieces. When the specimen length is less than the requirement, two or more short specimens can be connected by iron wire or iron nails, with a total length of 1016mm±1 m
Equipment weight: 25 Kg
