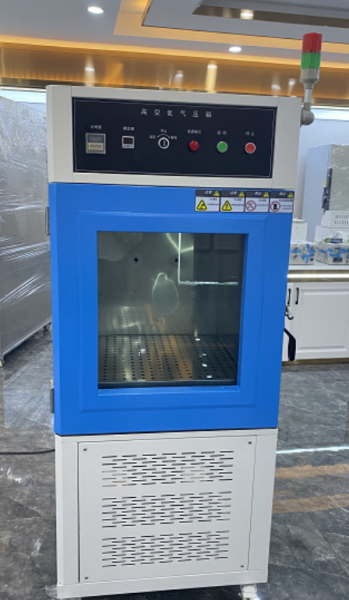

Simulated High-Altitude And Low-Pressure Test Chamber Is Designed In Accordance With The Requirements Of UL, EN, IEC And Other Standard Tests
Simulated High-Altitude And Low-Pressure Test Chamber Is Designed In Accordance With The Requirements Of UL, EN, IEC And Other Standard Tests
Specifications
Brand Name :
CHENGFENG
Model Number :
CF9033
Certification :
ISO,CE
Place of Origin :
China
MOQ :
1 Set
Price :
US$2000-$30000
Payment Terms :
T/T, Cash.L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
5 units per month
Delivery Time :
10 Work Days
Packaging Details :
Wooden cases
Inner box material: :
SUS201# stainless steel, thickness 3mm
Outer box material: :
A3 cold-rolled steel plate with baked paint, thickness 1.5mm
Pressure range: :
0.5 to -90 kpa (automatically controlled by set parameters)
Inner box dimensions: :
W500xH500xD500mm
Material of the storage partition: :
Stainless steel
Pressure fluctuation: :
≤5%
Power supply for equipment: :
AC220V, 50HZ, 1.2KW
Description

Product Overview

This test box is designed in accordance with the requirements of UL, EN, IEC and other standard tests. It can reach the low-pressure storage state of samples in a short time, automatically control the test cycle, monitor the pressure changes inside the box throughout the process, and realize the automatic termination of the test. Simulated batteries and battery packs should be stored for 6 hours under conditions of pressure equal to or lower than 11.6kPa and ambient temperature of (20±5) ℃. If the batteries show no leakage, no exhaust, no disintegration, no rupture and no fire, and the open-circuit voltage of each test battery or battery pack after the test is not less than 90% of its voltage before the simulation test, they are considered qualified.

Technical parameters

1. Inner box material: SUS201# stainless steel, thickness 3mm

2. Outer box material: A3 cold-rolled steel plate with baked paint, thickness 1.5mm

3. Pressure range: 0.5 to -90 kpa (automatically controlled by set parameters)

4. Inner box dimensions: W500xH500xD500mm

5. Outer box dimensions: W750xH1500xD750

6. Material of the storage partition: Stainless steel

7. Vacuum degree display: Controlled by a digital vacuum gauge, it accurately shows the vacuum degree and is easy to set
8. Timer: LED digital display, freely set within 0-9999 hours (H/M/S seconds can be switched)
9. Pressure fluctuation: ≤5% 10. Power supply for equipment: AC220V, 50HZ, 1.2KW

10. When in use, the internal temperature of the laboratory must be controlled to reach (20℃+5℃) to meet the temperature requirements inside the test chamber.
