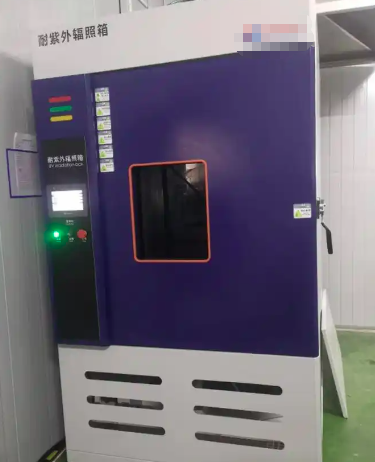

DX8315A UV Aging Test Chamber

The DX8315A UV Aging Test Chamber is specially designed for conducting UV aging tests on laminated glass in full compliance with the EN ISO 12543-4-2011 international standard. This high-performance testing equipment simulates prolonged ultraviolet exposure to evaluate the durability and weathering resistance of laminated glass products used in architectural and automotive applications.

Key Features

• Standards Compliance: Fully conforms to EN ISO 12543-4-2011 for laminated glass UV aging evaluation
• High-Intensity UV Source: Equipped with 16 OSRAM Ultra Vitalux 300W UV lamps delivering 900W/m2 ± 100W/m2 total radiation intensity on the specimen surface
• Precise Temperature Control: Maintains 45°C ± 5°C on the sample surface with PID intelligent temperature regulation
• Large Capacity: Spacious 1100mm x 1100mm x 1000mm work chamber accommodates up to 9 specimens (300mm x 300mm each)
• Long-Duration Testing: Supports continuous operation up to 2000 hours with precise timer control
• Optimal Distance: Specimen-to-light-source distance exceeds 500mm for uniform irradiation
• Low Noise Operation: Operating noise ≤ 75dB, suitable for laboratory environments
• Robust Cooling System: 2.5HP compressor with 4 circulation fans (≤ 25W each) ensures stable temperature conditions
• Industrial Power: 9KW installation power, AC380V/50Hz three-phase five-wire power supply
• Durable Construction: SUS304 stainless steel interior with cold-rolled steel exterior and electrostatic powder coating

Technical Specifications

Applications

Ideal for quality control laboratories, research institutions, and manufacturing facilities involved in laminated glass production for architectural glazing, automotive windshields, and safety glass applications. The DX8315A ensures your laminated glass products meet the rigorous UV durability requirements of international standards.
