Specifications
Brand Name :
CN Sports
Model Number :
CN-S05
Certification :
IAAF
Place of Origin :
China
MOQ :
1000sqms
Price :
US $10-15/ Square Meter
Payment Terms :
L/C, T/T
Supply Ability :
100000 Tons/ Year
Delivery Time :
in 7 working days
Packaging Details :
Pack in barrel /pallet
Thickness: :
13mm
Shock Absorption Rate: :
>35%
Friction Factor: :
0.56
Antibacterial Properties: :
90%
Tdi No More Than(G/Kg): :
2
Application :
playground,sports center,school,stadium
Voc No More Than(G/L): :
60
Product Name: :
Sandwich PU Running Track , International IAAF Standard Rubber Running Track
Description

Sandwich PU Running Track , International IAAF Standard Rubber Running Track

Product Description


Excellent performance

It's a design based on human kinetics and physical characteristics flooring system, with hard top layer combined with soft rebound cushion lower layer structure. It's suitable to lay on concrete or asphalt substrates. The cushion layer is formed by single component modified polyurethane and top up with two-component modified acrylic resilience layer

No.

Test project

Standard
requirements

CN-S05F

CN-S05T

CN-S05H

CN-S05Z

Judge

1

Shock absorption rate,%

30-50

38.9

39.2

39.3

40.1

Qualified

2

Vertical deformation,mm

0.6-2.5

1.74

2.02

2.40

2.4

Qualified

3

Anti-slide value,BPN20℃≥

47

57

57

56

57

Qualified

4

Tensile strength,Mpa ≥

0.5/0.4 permeable type

0.8

0.4

0.62

0.51

Qualified

5

Tensile elongation,% ≥

40

76.7

46

54.3

52.8

Qualified

6

Flame retardant level

I

I

I

I

I

Qualified

7

Thickness,mm

13

13.1

13.0

13.1

13.0

Qualified

No.

Test project

Standard
requirements

CN-S05F

CN-S05T

CN-S05H

CN-S05Z

Judge

1

Benzene,g/kg ≤

0.05

nought

nought

nought

nought

Qualified

2

BTX,g/kg ≤

0.05

nought

nought

nought

nought

Qualified

3

Toluene diisocyanate,% ≤

0.2

nought

nought

nought

nought

Qualified

4

Soluble heavy metal,mg/kg Pb ≤

90

nought

nought

nought

nought

Qualified

5

Soluble heavy metal,mg/kg Cd ≤

10

2.4

2.0

1.9

2.8

Qualified

6

Soluble heavy metal,mg/kg Cr ≤

10

3.2

3.1

3.4

3.4

Qualified

7

Soluble heavy metal,mg/kg Hg ≤

2

nought

nought

nought

nought

Qualified

Advantages

1. Color EPDM surface, making it highly resistant to ultraviolet rays, no fade, strong wear,which are proved
2. The EPDM granules don't drop, mix the EPDM with polyurethane binder first,and then construct by mechanical spraying.
3. Excellent weather resistance, not aging.
4. Stable Elasticity all year around, so in winter is not hard and in summer it is not soft.
5. Strong Power for rotating and shock-absorbing,emphasizing on comfort and safety for athletes, and helps them improve the performance.
6. Stressed the the overall performance of truck, suitable for each game and long-term training.
7. The Marking line is not easy to peel off, bright color, do not fade, wear-resistance.
8. Flatness reach the IAAF standard, good water filters,there is no need to stop the game in light rain day.and the game can immediately begin after heavy rain,no ponding.
9. Professional production, process is simple and relatively short,beautiful color, clean and easy to maintain.


FAQ
Q1: Are you manufacturer or trader?
We have two major production bases,one in Nanjing and the other in JiangMen,and the laying area of our materials is more than ten million square meters per year.

Q2: What is the advantage of your factory? Why should I choose you?
Our products are odorless and non-toxic;
We have two main production bases and can make every kinds of SPU venues, running track,artificial grass,sports flooring construction and colloidal particles;

Q3: What kind of certificate you have?
We have certificate of RoHS,ISSS,CE,ITF2,ITF5,IFFF, ISO9001 and ISO14001,SGS, ASG,etc and can export our products all over the world.

Q4: What is guarantee time of your products?
5 years

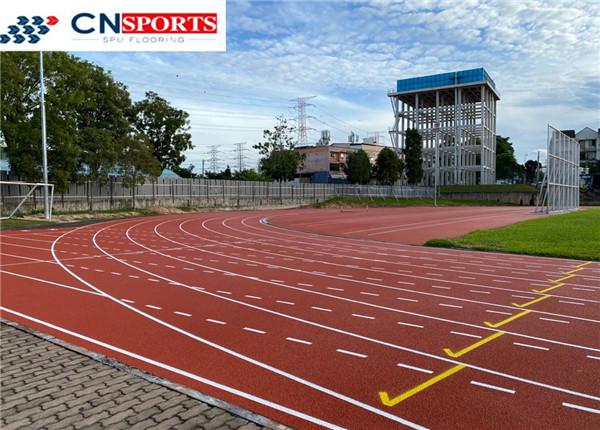

Project Case
