8mm Outdoor Tennis Court Flooring Silicon PU Painting
8mm Outdoor Tennis Court Flooring Silicon PU Painting
8mm Outdoor Tennis Court Flooring Silicon PU Painting
8mm Outdoor Tennis Court Flooring Silicon PU Painting
8mm Outdoor Tennis Court Flooring Silicon PU Painting
8mm Outdoor Tennis Court Flooring Silicon PU Painting
Specifications
Brand Name :
CN Sports
Model Number :
CN-S01
Certification :
IAAF / ITF/RoHS/iSSS/ISO140019001/ISO14001
Place of Origin :
China
MOQ :
/
Price :
US $10-35/ Square Meter
Payment Terms :
L/C, T/T
Supply Ability :
100000 Tons/ Year
Delivery Time :
Within 15 work days after your deposit
Packaging Details :
Pack in barrel /pallet
Game: :
Basketball Court
Thickness: :
8mm
Material :
Silicon Polyurethane
Friction Factor: :
0.56
Feature： :
Waterproof, Anti-Slip
Function： :
Waterproof, Soundproof, Anti-Static, Thermal Insulation
Durable Years :
Over 15 Years
Product Name: :
Silicon PU Painting SPU Coating Sports Field Flooring Tennis Court Floor
Description

Silicon PU Painting SPU Coating Sports Field Flooring Tennis Court Floor

Product Description

Excellent Performance

Hard Top Soft Down
The purpose of building sports courts is to ensure a professional,safe,healthy sports condition-the characteristics of hardness will bring the professional sporting feeling; the cushion effectively increasing the shock absorption and reduce the incidence of injuries to ankles,joints and ligaments.At the same time,it should reduce abrasion caused by failing and accident.

Standard Of Sports Performance

Serial number test project technical requirement test result
1 The springback value,% ≥ 20 30
2 Sliding friction coefficient 0.4 ≤ u ≤ 0.7 0.53
3 Compression recovery rate ≥ 90 97
4 Hardness(HA),20℃ 35-50 47
5 Tensile elongation,% ≥ 90 172
6 The tensile strength,Mpa ≥ 0.5 1.5
7 Flame retardant level I I
8 Vertical deformation,mm 0.6-2.5 1.2

SPU Runway flooring Performance Data

Inspection project technical requirement result of inspection determine
thickness ≥13 13 reach the standard
shock absorption,% 35-50 35.8 reach the standard
vertical deformation ,mm 0.6-2.5 1.48 reach the standard
Anti-slide value(BPN 20ºC) ≥47 56 reach the standard
Tensile strength,MPA ≥0.5 1.12 reach the standard
Elongation at break,% ≥40 138.6 reach the standard
Fire resistance,level 1(Burn spot diameter≤50mm) 1(Burn spot diameter≤38mm) reach the standard


Health and Environmental Properties Data

Inspection project technical requirement result of inspection determine
Benzene(mg/kg) ≤50 Did not check out reach the standard
BTX(mg/kg) ≤50 Did not check out reach the standard
Toluene diisocyanate(mg/kg) ≤200 Did not check out reach the standard
Soluble heavy metal lead ≤90 1.8 reach the standard
cadmium ≤10 1.3 reach the standard
chromium ≤10 9.0 reach the standard
mercury ≤2 <1 reach the standard

8mm Outdoor Tennis Court Flooring Silicon PU Painting

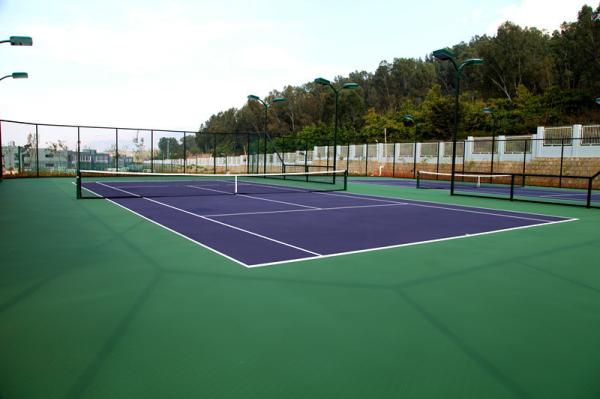

Project Case

8mm Outdoor Tennis Court Flooring Silicon PU Painting

Company Panorama

8mm Outdoor Tennis Court Flooring Silicon PU Painting
