Specifications
Brand Name :
CNSPORTS
Model Number :
CN-S06
Certification :
RoHS,ISSS,CE,ITF2,ITF5,IAAF, ISO9001 and ISO14001,SGS, ASG
Place of Origin :
CHINA
MOQ :
/
Price :
US $8-20/ Square Meter
Payment Terms :
L/C, T/T
Supply Ability :
150000 tons Per Year
Delivery Time :
Within 15 work days after your deposit
Packaging Details :
Pack in barrel /pallet
Material :
EPDM granules
Hardness :
47
The springback value :
26mm
The tensile strength :
1.74mpa
Tensile elongation :
103.6%
Benzene :
No check out
Souble heavy metal :
No check out
Description

Product Description

EPDM rubber, the main characteristics of EPDM is the superior oxidation resistance, ozone resistant and anti erosion ability. Due to the polyolefin family of EPDM rubber, It has excellent curing characteristics. In all the rubber, EPDM has the lowest proportion.

Main material and construction technology:

EPDM colloidal particles and single component glue mixing and paving

Standard Sizes of EPDM granule:
0.5 - 1.5 mm, 1.0 - 2.0 mm, 1.0 - 2.5 mm, 1.0 - 4.0 mm, 1.0 - 3.5 mm
0.5 - 2.0 mm (mainly for Infill)
0.5 - 2.5 mm (mainly for Infill)
Special sizes and colours are also available to meet customer specifications

Special applications
Golf Walkways and Driving Ranges
Swimming pools (Inside and Surrounding)
Ship Deckings
Commercial Flooring
Sports Stadia (Club Colours can be matched)

Physical properties data

Serial number Test project Standard requirements Test results Judge
1 Compession recovery rate,% 90 98.5 Qualified
2 The springback value,mm 20 26 Qualified
3 Hardness 30-50 47 Qualified
4 The tensile strength,mpa≥ 0.5 1.74 Qualified
5 Tensile elongation,%≥ 90 103.6 Qualified
6 Flame retardant level I I Qualified

The harmful and toxic substances limits standard of the products

Serial number Test project Standard requirements Test results Judge
1 Benzene,g/kg≤ 0.05 Nought Qualified
2 Btx,g/kg≤ 0.05 Nought Qualified
3 Toluene diisocyanate,%≤ 0.2 Nought Qualified
4 Soluble heavy metal,mg/kg Pb≤ 90 Nought Qualified
Cd≤ 10 2.7 Qualified
Cr≤ 10 3.5 Qualified
Hg≤ 2 Nought Qualified

FAQ

1. What are the options base foundation of running track.?

The ground is based on asphalt or concrete.

2. Why we have to buy products from you?

we are factory of more than 10years experiences in producing running track materials, products are of high quality and competitive price. And we have professional sales team for export market and also excellent technical team, can provide best service and support to your project, help you to promote your business with good job.
3. Can we get installation support ?
We can provide installation documents such as installation process and technical files. If client need, we can also send installation engineers to client’s side for installation guidance and teach your team per request.

4. How much do you charge for sample?
Samples for free, clients only need to bear shipping freight.

Pictures for reference

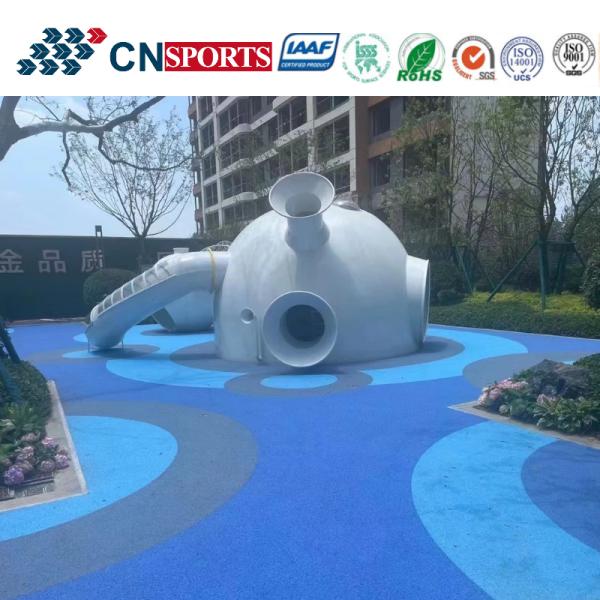

Colourful EPDM Rubber Flooring Constructed By PU Binder And Rubber Granules

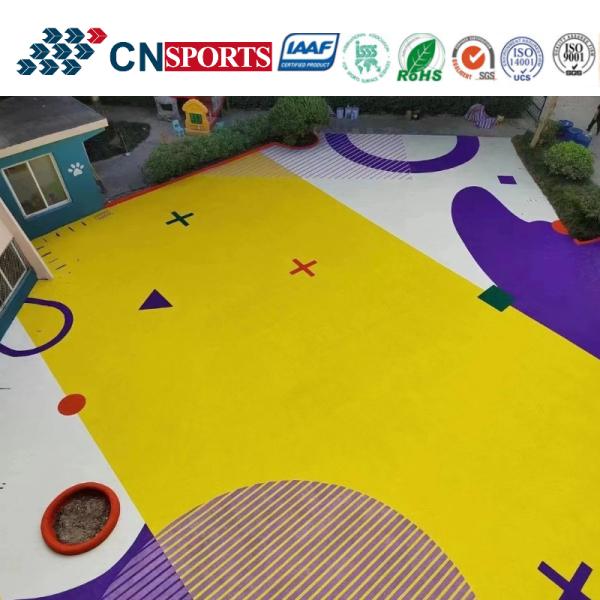

Colourful EPDM Rubber Flooring Constructed By PU Binder And Rubber Granules
