Optional colors
Main material and construction technology:
EPDM colloidal particles and single component glue mixing and paving
Product features
Non-toxic and harmless,meet the environment protection requirements.
Comfortable elasticity,prevent people from gtting hurt when they exercise.
High resilient floor effectively reduces noise caused by shoes and ground collision to avoid interference of walking.
Standard Sizes of EPDM granule:
0.5 - 1.5 mm, 1.0 - 2.0 mm, 1.0 - 2.5 mm, 1.0 - 4.0 mm, 1.0 - 3.5 mm
0.5 - 2.0 mm (mainly for Infill)
0.5 - 2.5 mm (mainly for Infill)
Special sizes and colours are also available to meet customer specifications
Application:
The epdm granules are widely used in running tracks, playground, backyard, sports court, swimming pools, balcanies, multi use games area, Infill for artificial turf, amusement park, kindergarden, shool, etc
Physical properties data
Serial number | Test project | Standard requirements | Test results | Judge |
1 | Compession recovery rate,% | 90 | 98.5 | Qualified |
2 | The springback value,mm | 20 | 26 | Qualified |
3 | Hardness | 30-50 | 47 | Qualified |
4 | The tensile strength,mpa≥ | 0.5 | 1.74 | Qualified |
5 | Tensile elongation,%≥ | 90 | 103.6 | Qualified |
6 | Flame retardant level | I | I | Qualified |
The harmful and toxic substances limits standard of the products
Serial number | Test project | Standard requirements | Test results | Judge | |
1 | Benzene,g/kg≤ | 0.05 | Nought | Qualified | |
2 | Btx,g/kg≤ | 0.05 | Nought | Qualified | |
3 | Toluene diisocyanate,%≤ | 0.2 | Nought | Qualified | |
4 | Soluble heavy metal,mg/kg | Pb≤ | 90 | Nought | Qualified |
Cd≤ | 10 | 2.7 | Qualified | ||
Cr≤ | 10 | 3.5 | Qualified | ||
Hg≤ | 2 | Nought | Qualified |
FAQ
1. What are the options base foundation of running track.?
The ground is based on asphalt or concrete.
2. Why we have to buy products from you?
we are factory of more than 10years experiences in producing running track materials, products are of high quality and competitive price. And we have professional sales team for export market and also excellent technical team, can provide best service and support to your project, help you to promote your business with good job.
3. Can we get installation support ?
We can provide installation documents such as installation process and technical files. If client need, we can also send installation engineers to client’s side for installation guidance and teach your team per request.
4. How much do you charge for sample?
Samples for free, clients only need to bear shipping freight.

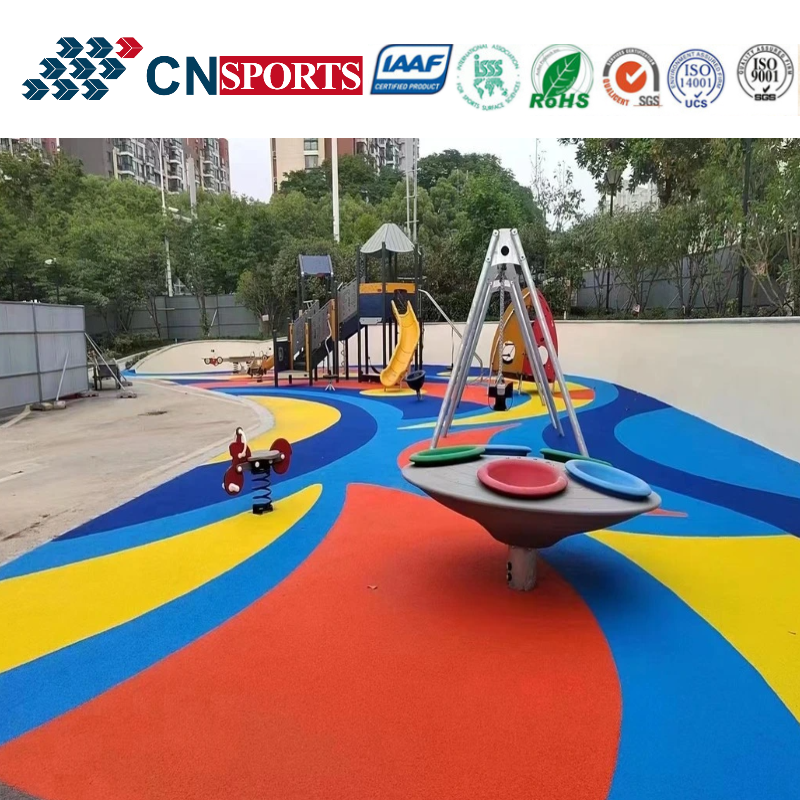

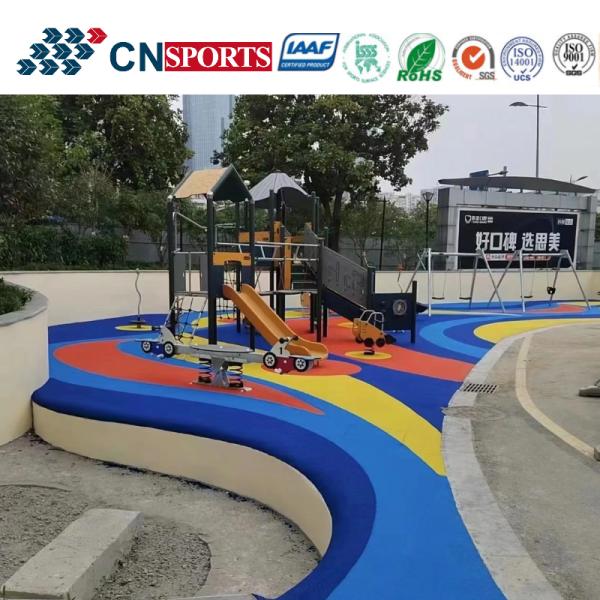

Pictures for reference
,
