YCC Air Seal Piston Seal Ring Pneumatic Cylinder PGY SC Pneumatic Cylinder Seals
YCC Air Seal Piston Seal Ring Pneumatic Cylinder PGY SC Pneumatic Cylinder Seals
YCC Air Seal Piston Seal Ring Pneumatic Cylinder PGY SC Pneumatic Cylinder Seals
YCC Air Seal Piston Seal Ring Pneumatic Cylinder PGY SC Pneumatic Cylinder Seals
Specifications
Brand Name :
DZK
Model Number :
PGY
Certification :
ROHS
Place of Origin :
CHIAN
MOQ :
100PCS
Price :
negotiate
Payment Terms :
L/C,T/T
Supply Ability :
1000000PCS/MONTH
Delivery Time :
7-10 days
Packaging Details :
100pcs/bag
Product Name :
YCC/PGY Gas-Sealed Piston Seal Ring
Material :
NBR
Color :
Black
Speed Rating :
≤ 1.0 m/s
Work pressure :
≤16 Bar
Temperature Range :
-20°C to +100°C
Product Usage :
Seal ring for through holes used in pneumatic cylinders to enable reciprocating motion
Working medium :
Contains lubricated air, as well as dry air and oil-free air (after initial lubrication of the assembly)
Description
YCC Air Seal Piston Seal Ring | PGY Series for Pneumatic Cylinders
Product Overview

The YCC PGY Series Piston Seal Ring is a precision-engineered sealing solution specifically designed for pneumatic cylinder applications. Utilizing advanced polyurethane compound and optimized sealing geometry, this seal delivers zero-leakage performance, minimal friction, and extended service life in demanding pneumatic systems.

Core Features and Advantages
  • Zero Air Leakage — Advanced lip design ensures perfect sealing, minimizing energy loss to the maximum extent.
  • Long Service Life — Excellent wear resistance performance.
  • Easy Installation — Symmetrical design allows for convenient installation without considering direction.
  • Universal Compatibility — Suitable for all SC standard cylinders.
Technical Specifications
Parameter Standard Specification
Material NBR
Temperature Range -20°C to +100°C
Speed Rating ≤ 1.0 m/s
Work pressure ≤16 Bar

YCC Air Seal Piston Seal Ring Pneumatic Cylinder PGY SC Pneumatic Cylinder Seals

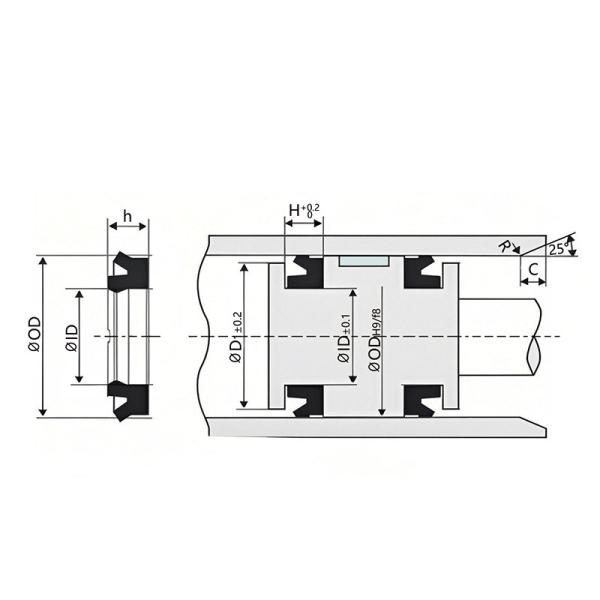

Installation

This type of YCC pneumatic piston seal can be easily mounted onto the piston and installed into the groove. To avoid damaging the seal lip during installation, the sharp edges on both the piston and the cylinder should be removed. In the absence of lubrication, it is crucial to have a complete lubricant film inside the cylinder barrel, which should be ensured prior to assembly to guarantee the service life of the seal.

Why Choose YCC PGY Seals?
Exceptional Engineering Design
  • Optimized Lip Profile: Computer-optimized design ensures consistent sealing performance across all pressure ranges.
  • Material Science: Utilization of NBR material provides excellent wear resistance while maintaining elasticity.
  • Precision Manufacturing: CNC machining guarantees dimensional accuracy and batch consistency.
Quality Assurance
  • 100% pressure testing before shipment
  • Dimensional verification with optical measuring equipment
  • Performance testing in simulated operating conditions
Technical Support
  • Free application analysis
  • Custom design services
  • Installation guidance and documentation
  • On-site technical support available

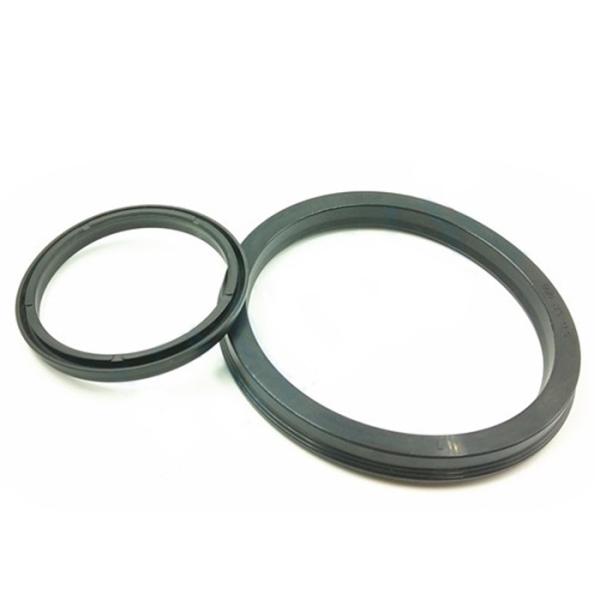

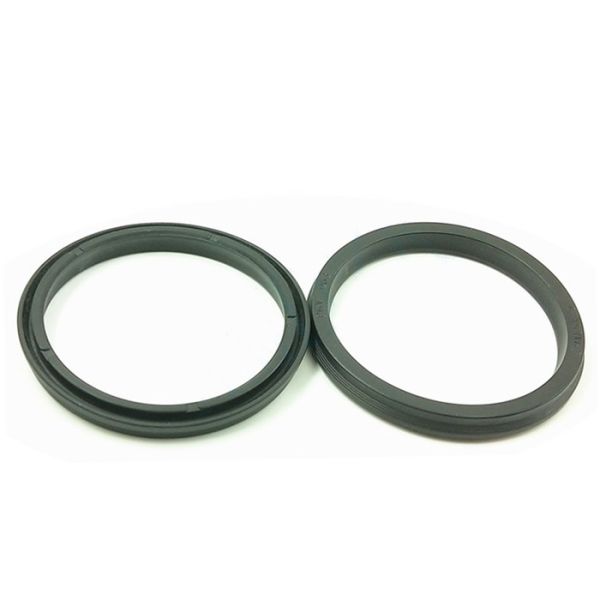

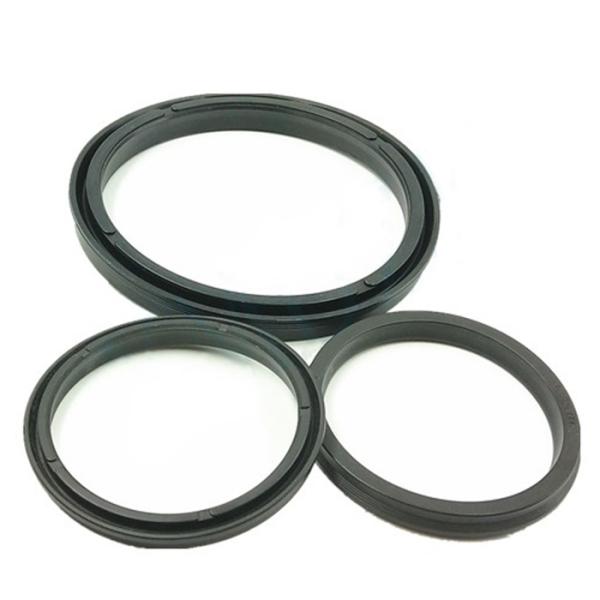

Product Real-shot

YCC Air Seal Piston Seal Ring Pneumatic Cylinder PGY SC Pneumatic Cylinder Seals

YCC Air Seal Piston Seal Ring Pneumatic Cylinder PGY SC Pneumatic Cylinder Seals

YCC Air Seal Piston Seal Ring Pneumatic Cylinder PGY SC Pneumatic Cylinder Seals
