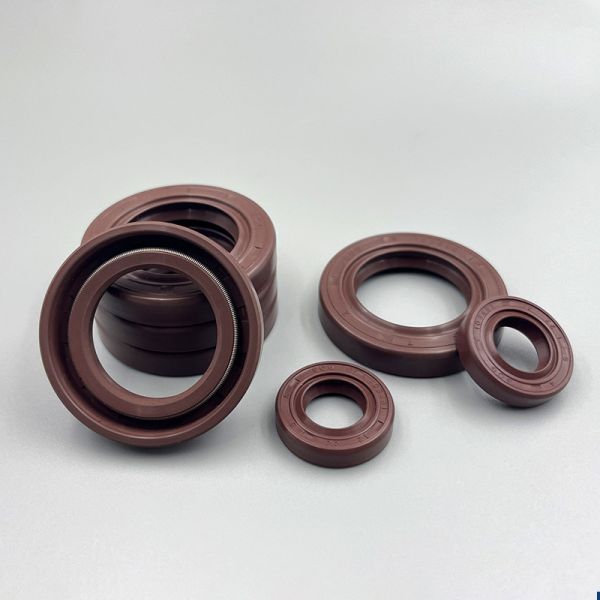

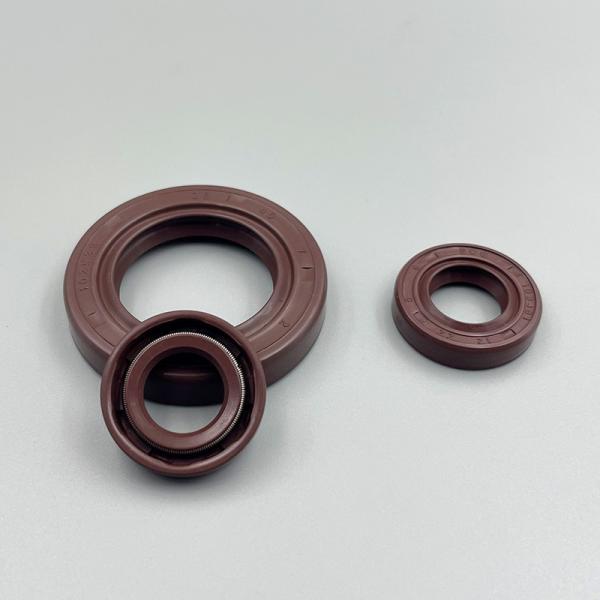

Custom TC Skeleton Oil Seals | Fluororubber FKM Water-Resistant & High-Temperature Oil Seal Gaskets
Custom TC Skeleton Oil Seals | Fluororubber FKM Water-Resistant & High-Temperature Oil Seal Gaskets
Custom TC Skeleton Oil Seals | Fluororubber FKM Water-Resistant & High-Temperature Oil Seal Gaskets
Custom TC Skeleton Oil Seals | Fluororubber FKM Water-Resistant & High-Temperature Oil Seal Gaskets
Specifications
Temperature :
-25°C to +240°C
Materials :
FKM
pressure :
＜0.05Mpa
characteristics :
wear-resistant, corrosion-resistant, heat-resistant, oil-resistant, aging-resistant
medium :
mineral oil/synthetic oil/water
range :
cars, home appliances, ships, aviation, petrochemicals, machinery, etc.
Product name :
Tc Skeleton Oil Seals
Brand Name :
DZK
Model Number :
Tc Skeleton Oil Seals
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
100PCS
Price :
negotiate
Payment Terms :
L/C,T/T
Supply Ability :
1000000PCS/MONTH
Delivery Time :
7-10 days
Packaging Details :
100pcs/bag
color :
brown
Description
Custom TC Skeleton Oil Seals | Fluororubber FKM Water-Resistant & High-Temperature Oil Seal Gaskets
TC Skeleton Oil Seal | Heavy-Duty Metal Reinforced Shaft Seal
Double-Lip Design • Extreme Environment Protection • OEM Interchangeable
Custom TC Skeleton Oil Seals | Fluororubber FKM Water-Resistant & High-Temperature Oil Seal Gaskets Custom TC Skeleton Oil Seals | Fluororubber FKM Water-Resistant & High-Temperature Oil Seal Gaskets Custom TC Skeleton Oil Seals | Fluororubber FKM Water-Resistant & High-Temperature Oil Seal Gaskets
Product Overview
Fluorosilicone TC skeleton oil seals are composed of fluorosilicone rubber, metal skeletons, and spiral tension springs. The fluorosilicone rubber material provides excellent high-temperature resistance, corrosion resistance, and ozone aging resistance, allowing stable operation in environments ranging from -25°C to 240°C. They are suitable for rotary and reciprocating movements, effectively preventing lubricant leakage and blocking dust and impurities. They are widely used in automotive and industrial machinery fields.
Key Features & Benefits
  • Metal-Reinforced Structure: Embedded steel skeleton prevents deformation under high pressure and load
  • Double-Lip Design: Primary lip retains oil; secondary lip blocks dust, dirt, and moisture
  • Wide Material Compatibility: NBR, FKM, ACM, and SILICONE options for oils, fuels, and chemicals
  • High-Temperature Resistance: Operates from -25°C to +240°C
  • OEM Interchangeable: Direct replacement for common TC-type seals in industrial and automotive systems
Technical Specifications
Parameter Standard Range
Materials FKM
Temperature -25°C to +240°C
Color Brown
Medium Mineral oil/synthetic oil/water
Custom TC Skeleton Oil Seals | Fluororubber FKM Water-Resistant & High-Temperature Oil Seal Gaskets
Applications
  • Automotive Systems: Wheel hubs, transmissions, engines
  • Industrial Gearboxes: Heavy machinery, conveyor systems
  • Agriculture Equipment: Tractors, combines, harvesters
  • Construction Machinery: Excavators, bulldozers, cranes
  • Pumps & Compressors: Rotary shaft sealing under pressure
Function & Features

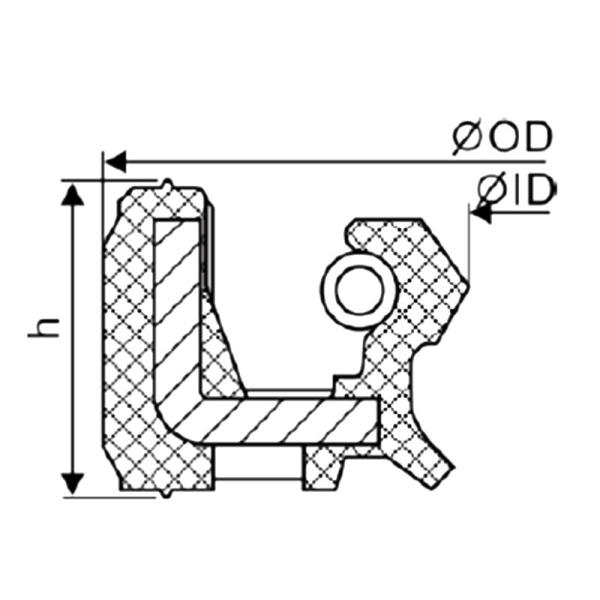

Fluorosilicone TC skeleton oil seal is an industrial sealing component that utilizes the excellent weather resistance of fluorosilicone material and a dual structure of TC type (main sealing lip + dustproof lip) to achieve dynamic sealing between the rotating shaft and the fixed housing. It effectively prevents internal lubricants from leaking, blocks external impurities from entering, and can withstand high temperatures and strong corrosion in harsh operating conditions.
