XK-560 Rubber Mixing Mill Machine 90Kw Open Mill Rubber Mixing
XK-560 Rubber Mixing Mill Machine 90Kw Open Mill Rubber Mixing
XK-560 Rubber Mixing Mill Machine 90Kw Open Mill Rubber Mixing
XK-560 Rubber Mixing Mill Machine 90Kw Open Mill Rubber Mixing
XK-560 Rubber Mixing Mill Machine 90Kw Open Mill Rubber Mixing
XK-560 Rubber Mixing Mill Machine 90Kw Open Mill Rubber Mixing
XK-560 Rubber Mixing Mill Machine 90Kw Open Mill Rubber Mixing
XK-560 Rubber Mixing Mill Machine 90Kw Open Mill Rubber Mixing
XK-560 Rubber Mixing Mill Machine 90Kw Open Mill Rubber Mixing
XK-560 Rubber Mixing Mill Machine 90Kw Open Mill Rubber Mixing
XK-560 Rubber Mixing Mill Machine 90Kw Open Mill Rubber Mixing
XK-560 Rubber Mixing Mill Machine 90Kw Open Mill Rubber Mixing
XK-560 Rubber Mixing Mill Machine 90Kw Open Mill Rubber Mixing
XK-560 Rubber Mixing Mill Machine 90Kw Open Mill Rubber Mixing
XK-560 Rubber Mixing Mill Machine 90Kw Open Mill Rubber Mixing
XK-560 Rubber Mixing Mill Machine 90Kw Open Mill Rubber Mixing
Specifications
Place of Origin :
Shandong, China
Brand Name :
HUALONG
Certification :
ISO,9001
Packaging Details :
standard packing
Supply Ability :
10 Set/Sets per Month
Price :
$25,000.00/sets >=1 sets
Model Number :
XK-560
MOQ :
1 set
Delivery Time :
30 sets per month
Diameter of Roll(mm) :
560 mm
Length of Roll(mm) :
1500 mm
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Condition :
New
Warranty :
2 years
Key Selling Points :
Long Service Life
Applicable Industries :
Rubber plastic industry
Machine type :
Rubber mixing mill machine
Roller hardness :
Chilled cast iron hardness HS 72
Description

Factory Direct Sales Rubber Mixing Mill Machine Open Mixing Mill Machine For Rubber Processing

Equipment application and operation requirements
1. Main application: mixing mill is mainly used for rubber compound warming, mixing &sheeting, as well as raw rubber plasticating, mixing &sheeting.
2. Operation requirements

A. running environment: altitude＜1000m,
temperature: 5℃-40℃, max. relative humidity 95%
B. Power supply: AC380V, 50Hz, 3-phase
C. Cooling water pressure: 2-0.4Mpa
Cooling water temperature: ﹤25℃±3℃
Type
XK-160
XK-230
XK-250
XK-300
XK- 360
Working diameter of rolls (mm)
160
230
250
300
360
Working Length of rolls (mm)
320
600
620
750
900
Front roll surface speed (m/min)
8.95
10.21
14.1
15.1
16.25
Friction ratio
1:1.35
1:1.19
1:1.17
1:1.25
1:1.25
Max. nip (mm)
4.5
7
8
10
10
Capacity per batch (kg)
1-2
6-10
8-15
15-20
20-25
Motor power (KW)
5.5
15
18.5
22
30
Size (L*W*H) (mm)
1380*850*1320
2800*1200*1120
3400*1500*1500
2450*1500*1550
3780*1850*1750
Type
XK-400
XK-450
XK-560
XK-550B
XK-660
Working diameter of rolls (mm)
400
450
560/510
550
660
Working Length of rolls (mm)
1000
1200
1530
1500
2130
Front roll surface speed (m/min)
18.65
24.26
27.72
27.94
28.6
Friction ratio
1:1.27
1:1.27
1:1.2
1:1.22
1:1.24
Max. nip (mm)
10
15
15
15
15
Capacity per batch (kg)
18-35
25-50
35-50
50-60
165
Motor power (KW)
37
55
90
110
245
Size (L*W*H) (mm)
4350*1850*1785
5200*2380*1840
5845*2284*1978
5878*2475*2045
7455*3662*2080

XK-560 Rubber Mixing Mill Machine 90Kw Open Mill Rubber Mixing
XK-560 Rubber Mixing Mill Machine 90Kw Open Mill Rubber Mixing
XK-560 Rubber Mixing Mill Machine 90Kw Open Mill Rubber Mixing
Safe emergency stop device
▲two emergency stop buttons
▲ overhead emergency stop rope
▲ kick emergency stop switch
Non-operating side
▲ two emergency stop buttons
▲ overhead safety pull cord
▲ Kick emergency stop switc
XK-560 Rubber Mixing Mill Machine 90Kw Open Mill Rubber Mixing

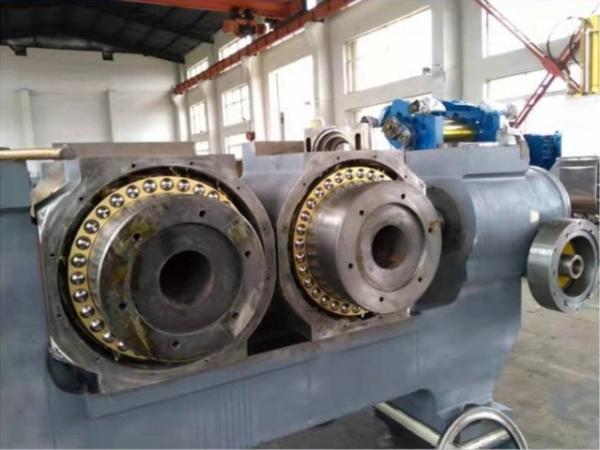

Plus one plate of plane thrust bearing,each mill has 12 plates of bearing,saving energy by 10-15% and reducing grease usage by 20-25%

XK-560 Rubber Mixing Mill Machine 90Kw Open Mill Rubber Mixing
Open mixing mill machine the speed ratio gear made of 42CrMo alloy steel after forging and heat treatment
XK-560 Rubber Mixing Mill Machine 90Kw Open Mill Rubber Mixing
Rubber mixing mill machine frame with tempering treatment
XK-560 Rubber Mixing Mill Machine 90Kw Open Mill Rubber Mixing
Rubber mixing mill bearing seat with tempering heat treatment
XK-560 Rubber Mixing Mill Machine 90Kw Open Mill Rubber Mixing

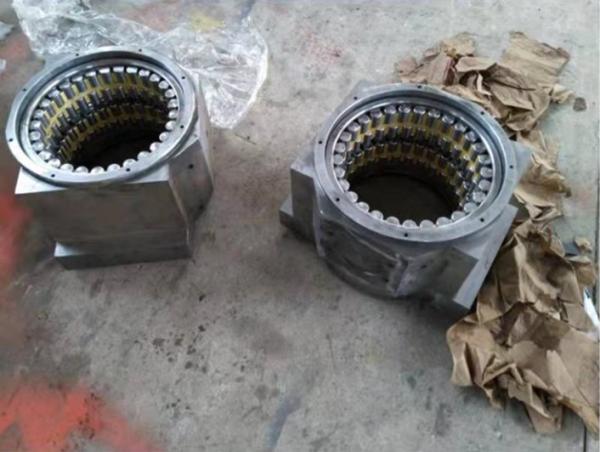

Each bearing has two disc double row cylindrical roller bearings
XK-560 Rubber Mixing Mill Machine 90Kw Open Mill Rubber Mixing
XK-560 Rubber Mixing Mill Machine 90Kw Open Mill Rubber Mixing

Market advantage

More than 30 years history of manufacturing experience. 6-8 years foreign sales experience staff, more efficiency and professional.

Technical advantages

Service timely, promise to give solution within 12 hours, guarantee customer trouble free.
For rubber machine, we mainly produce rubber kneader series, rubber mixing mill series, rubber extruder and strainer series, rubber powder line, rubber reclaim sheet line, rubber tube line, rubber mat line, tire making line and so on, we can make more than 200 series rubber machines, including environment protect machines, we also can make rubber machine according to customers requirement. Till now, HANGSEN have exported to more than forty counties, including USA, Greece, Spain, Poland, France, Italy, Algeria, Egypt, India, Russia, Argentina, Vietnam, Brazil, Indonesia, Thailand and so on. Our company uses exquisite and professional technology to serve all customers and is widely praised and appreciated by customers. We provide customers with high-quality and timely service.
XK-560 Rubber Mixing Mill Machine 90Kw Open Mill Rubber Mixing
