1000kg/H 3000kg/H Waste Tire Recycling Machine Full Auto Tyre Recycling Line
1000kg/H 3000kg/H Waste Tire Recycling Machine Full Auto Tyre Recycling Line
1000kg/H 3000kg/H Waste Tire Recycling Machine Full Auto Tyre Recycling Line
1000kg/H 3000kg/H Waste Tire Recycling Machine Full Auto Tyre Recycling Line
1000kg/H 3000kg/H Waste Tire Recycling Machine Full Auto Tyre Recycling Line
1000kg/H 3000kg/H Waste Tire Recycling Machine Full Auto Tyre Recycling Line
1000kg/H 3000kg/H Waste Tire Recycling Machine Full Auto Tyre Recycling Line
1000kg/H 3000kg/H Waste Tire Recycling Machine Full Auto Tyre Recycling Line
1000kg/H 3000kg/H Waste Tire Recycling Machine Full Auto Tyre Recycling Line
1000kg/H 3000kg/H Waste Tire Recycling Machine Full Auto Tyre Recycling Line
1000kg/H 3000kg/H Waste Tire Recycling Machine Full Auto Tyre Recycling Line
1000kg/H 3000kg/H Waste Tire Recycling Machine Full Auto Tyre Recycling Line
Specifications
Place of Origin :
Shandong, China
Brand Name :
HUALONG
Model Number :
LP-800,LP-900, LP-1200
Certification :
CE ISO
Packaging Details :
standard packing
Supply Ability :
10 Set/Sets per Month
Price :
$50,000.00/sets >=1 sets
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
2 years
Core Components :
PLC, Engine, Bearing, Gearbox, Motor
Tire Machine Type :
Tire Recycling Machine
Voltage :
220v/380v/440v/460v
Dimension(L*W*H) :
6430*2600*3120mm
Year :
2022
Warranty :
1 Year
Key Selling Points :
High Productivity
Weight (KG) :
18000 kg
Power (kW) :
55kw*2
Applicable Industries :
waste rubber recycling plant, tyre recycling line
Showroom Location :
Sri Lanka, South Africa, Uzbekistan, Malaysia, Australia, Egypt, Turkey, Brazil, Indonesia, Pakistan, India, Russia, Thailand
Product Name :
Waste rubber recycling line
workshop required :
300-500m2
Advantage :
Automatic
Shredder model :
LP-800,LP1200,LP1400
Adapt tire :
nylon tire , steel tire , truck tire
Labor required: :
2-4 worker
End product: :
rubber powder / fiber / steel
After warrantyservice :
Video technical support, Online support, Spare parts,
Capacity :
1000kg/h-3000kg/h
Port :
Qingdao
Description

High Quality Full Automatic Waste Tire Recycling Machine Equipment Production Line For Sale

Features

1) Iron/steel removing ratio>99.5%, fiber removing ratio>98%.
2) Adopt automatic control system for whole line, reduce labor cost.
3) No sewage and waste gas discharge, environment protection.
4) Available capacity range of our tyre recycling lines at present: 400~3000kg/h.
5) Available finial rubber powder size: 20~120mesh.

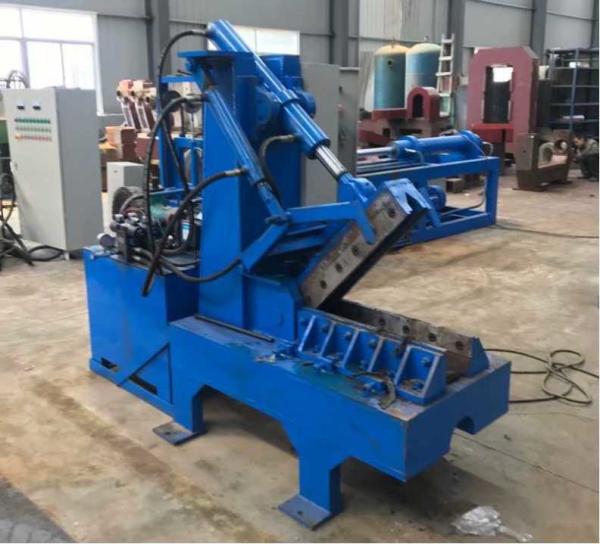

Tire wire draw machine
1000kg/H 3000kg/H Waste Tire Recycling Machine Full Auto Tyre Recycling Line
Model
1200Y
Motor Power (kw)
7.5
Capacity (tires/h)
80-100
Overall Dimensions (L×W×H)
4700×900×1700
Weight (T)
2.8
Tire Cutter
1000kg/H 3000kg/H Waste Tire Recycling Machine Full Auto Tyre Recycling Line
Type
1200
Motor (kw)
5.5
Fitted size of the tire (mm)
≤1200
Overall Dimension (mm)
2200×800×1500
Weight (T)
1.2

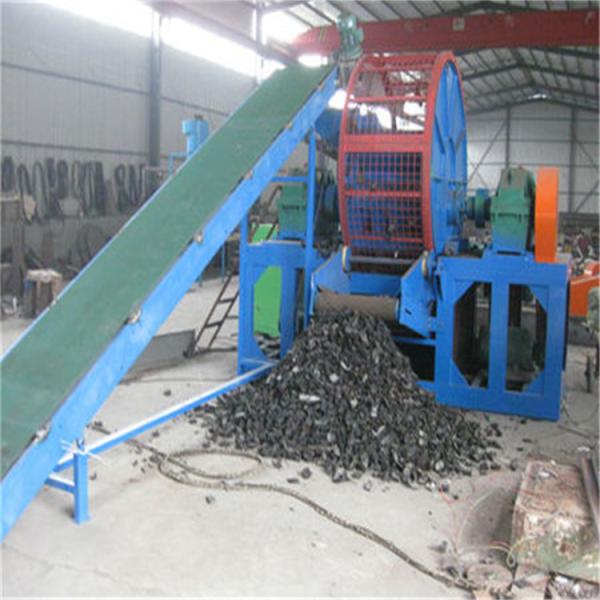

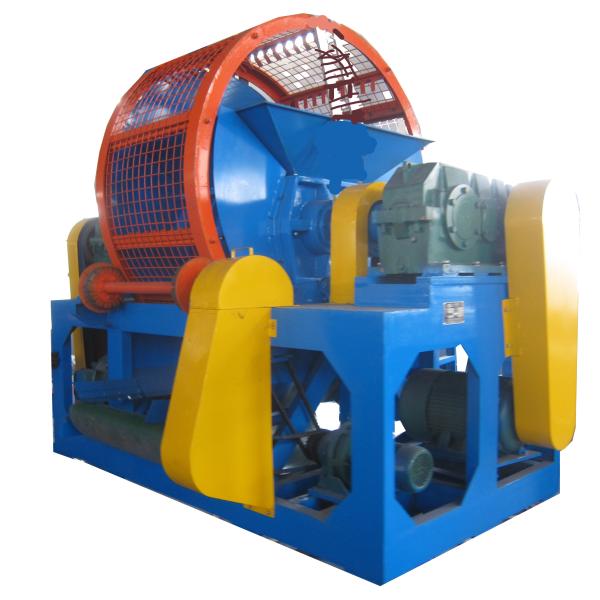

Tire Shredder
1000kg/H 3000kg/H Waste Tire Recycling Machine Full Auto Tyre Recycling Line
RUBBER SHREDDER BLADE
1000kg/H 3000kg/H Waste Tire Recycling Machine Full Auto Tyre Recycling Line
All tools are CNC machined,25X50 is the effective length of the box,This bearing seat is cast steel or forged, rough machining is completed on welding, machining in a single box, and then the entire box is assembled for the final finishing product.
Type
LP-400
LP-800
LP-1200
Quantity of cutter head
10
16
25
Dimension of cutter head (diameter*thickness)mm
300*45
460*60
480*50
Size of charge-in(mm)
400
800
1200
Size of charge-out(mm)
45
50-60
50-60
Handling Capacity (t/h)
700
1500
3000
Motor Power (kw)
35
37*2
55*2
Dimension(m)
2.1×0.9×1.9
4.2×2.1×2.3
6.43×2.6×3.12
Weight (T)
3
8
18
1000kg/H 3000kg/H Waste Tire Recycling Machine Full Auto Tyre Recycling Line
Type
XKP-560
XKP-610
Front roll diameter(mm)
510
560
Rear roll diameter(mm)
560(Groove roller)
610
Working length of rolls(mm)
800
1000
Front roll surface speed(m/min)
25.56
26
Friction ratio
1:1.3
1:1.30
Max. nip(mm)
15
15
Motor power
90
160
Overall dimension:L*W*H(mm)
5064*2284*1978
6000*2300*2100
1000kg/H 3000kg/H Waste Tire Recycling Machine Full Auto Tyre Recycling Line

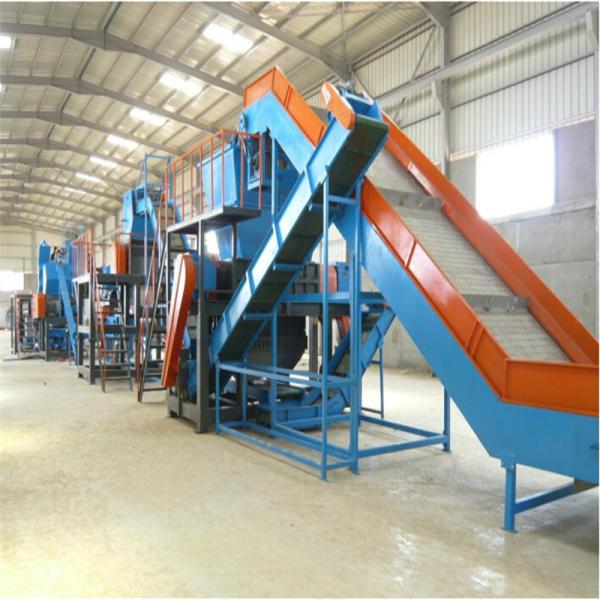

Vibrating screen(big)
Conveyor belt(magetic separation) (big)
Vibrating screen(small)
Conveyor belt(magetic separation) (small)
Main cnveyor belt(big)
1000kg/H 3000kg/H Waste Tire Recycling Machine Full Auto Tyre Recycling Line
Parameter
1100*8
Impeller number
8
Impeller diameter
1100mm
Speed of main shaft
377(or 676)/min
Power
5.5kw
Speed of feeder
29/min
Feeder power
0.4kw
Overall size(mm)
F1600*3400
Fine powder machine rubber grinder machine
1000kg/H 3000kg/H Waste Tire Recycling Machine Full Auto Tyre Recycling Line
Parameter
Rubber Grinder Machine
Size of feed-in materials(mesh)
≥5
Size of discharged materials(mesh)
30-40
40-60
60-120
Capacity(kg/h)
140-180
120-150
100
Power(kw)
37
Dimesion(mm)
2100
1700
1650
Weight(kg)
2200
1000kg/H 3000kg/H Waste Tire Recycling Machine Full Auto Tyre Recycling Line
QINGDAO HANGSEN Group was established in 1967,have employee more than five hundreds,
manufacturing for rubber machine and laminating machine.
As a rubber machinery manufacturer ,Hangsen has land for more than 50000 square meters, with a total assets of more than USD 100million, more than 500 employees, and 60 mechanical engineers,
The company is one of the largest private enterprises engaging in professional produce rubber machine .
We 8 meters gantry type milling machine,
TK6913B CNC boring and milling machine
TPX6213 floor boring
TPX6113 milling and boring machine
Vertical machining center
CY-K630 CNC lathe
2.5 Meters vertical lathe and other large advanced processing equipment
We mainly produce following machinery.
Radial tire equipment
XK-660 Rubber open mixing mill
42 to 65.5 inch double mold vulcanizing machine
75-105 inch single mold vulcanizing machine
Internal mixer series, Rubber mixing mill series, Extrusion and filter series
Tyre tube, flap, inner tube plate vulcanizing machine
Waste tire recycling line
Rubber reclaim sheet line and so on,
We can also design and manufacture for various non-standard rubber machinery and equipment according to the customers requirement.
Our company always follows the market concept of “Market demand first , Customer first.
Till now,Hangsen Group has exported to more than 40 countries,enjoy a good reputation in the world market.
