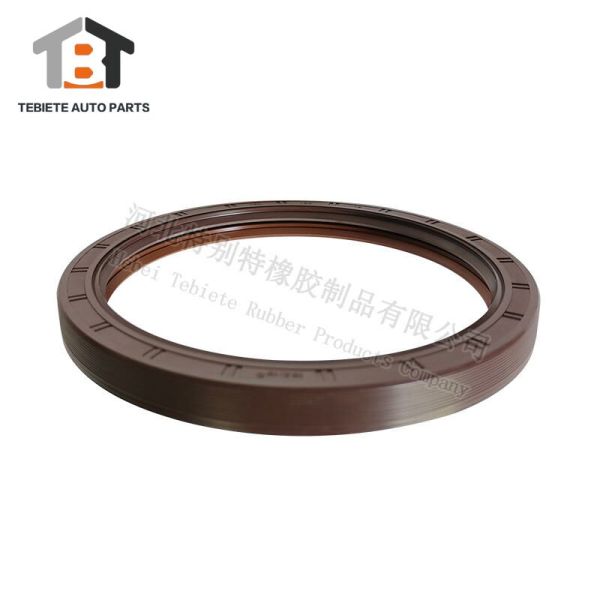

Construction Machinery Rear Axle Oil Seal 150*180*16 OEM 12018035b /149702 For Rear Wheel
Construction Machinery Rear Axle Oil Seal 150*180*16 OEM 12018035b /149702 For Rear Wheel
Construction Machinery Rear Axle Oil Seal 150*180*16 OEM 12018035b /149702 For Rear Wheel
Construction Machinery Rear Axle Oil Seal 150*180*16 OEM 12018035b /149702 For Rear Wheel
Construction Machinery Rear Axle Oil Seal 150*180*16 OEM 12018035b /149702 For Rear Wheel
Construction Machinery Rear Axle Oil Seal 150*180*16 OEM 12018035b /149702 For Rear Wheel
Specifications
Brand Name :
TBT or custom
Model Number :
12018035b /149702
Certification :
IATF 16949: 2016 , ISO 9001:2008
Place of Origin :
China
MOQ :
20 pcs
Price :
US Dollars $2.4-$5/pcs
Payment Terms :
T/T
Supply Ability :
10000 pcs/ day
Delivery Time :
10-30 days
Packaging Details :
Plastic Bag+Carton Box; 200-400pcs/ Outer Carton
Material :
NBR/FKM
Color :
Brown /Customize
Hardness :
30-90 Shore
Package :
plastic bag+catton
Application :
Truck/Machine/Trailer
Size :
150*180*16mm
Feature :
double spring rubber seal
Description

Product Details:

Product name axle oil seal
Material NBR/FKM/MVQ/HNBR/EPDM
color black red blue brown or customes request
Size 150*180*16mm
OEM 12018035b 149702
Hardness 20-90shore A or as your requirements
Certificate IATF16949:2016 ISO9001:2008 Environmental qualification certification
Application Oil Prevention Sealing;Water Prevention Sealing;Corrosion Prevention Sealing;Gas Prevention Sealing;Leak Prevention Sealing
Port of loading Tianjin/ Qingdao/Ningbo/Shanghai
Term of payment PayPal, Western Union, Money Gram, T/T in advance, L/C at sight, etc.
Packing Neutral packing or meeting customer's need

Material Feather:

NBR Excellent resistant to oil, Low temperature resistant,widely used in industrial area
EPDM Excellent resistance to weather and ozone, good resistance to heat, low temperature and chemical
NR High elasticity, good chemical strength
CR Generally good resistance to ozone, aging ,and chemical, good mechanical properties over a wide temperature range
SBR Shock resistance,performance well in adhesion and sealing
SILICONE Widest operating temperature range, performance stably in high and low temperature,widely use in food sealing area
VT/FKM Excellent resistance to high temperature and a broad range of chemical, permeability and compression set are excellent
HNBR Thermal stability and oxidation resistance
IIR Low permeability rate and good electrical properties

the requirements of the oil seal on the assembly shaft:

1. The surface roughness of the shaft is in accordance with the provisions of GB1801. The shaft surface in contact with the oil seal should be

ground to a surface roughness Ra0.2 ～ 0.63um and Rmax = 0.8 ~ 2.5um.

2. The diameter tolerance of the shaft shall not exceed h11 according to GB1801.

3. The chamfer width is according to GB13871-92.

4. Surface hardness: The material of the shaft is preferably carbon steel and alloy steel. The recommended hardness is HRC45 or higher. When

the medium is dirty and has contaminated impurities from the outside or the linear speed of the shaft is ≥12m / s, the surface hardness of the

shaft It should be HRC50 ～ 60, and the depth of quenching layer should be ≥0.3mm.

5. The shaft is chamfered at 30 degrees (maximum). There should be no burrs, sharp corners, and spiral processing marks on the chamfer. The

roughness of the chamfered surface Ra ≦ 3.2um. The heat-treated carbonized layer must be polished and removed.

Construction Machinery Rear Axle Oil Seal 150*180*16 OEM 12018035b /149702 For Rear WheelConstruction Machinery Rear Axle Oil Seal 150*180*16 OEM 12018035b /149702 For Rear WheelConstruction Machinery Rear Axle Oil Seal 150*180*16 OEM 12018035b /149702 For Rear Wheel
