Specifications
Brand Name :
SFC
Model Number :
XK-450
Place of Origin :
China
MOQ :
1 unit
Price :
USD10000-30000 Per Unit
Payment Terms :
T/T
Supply Ability :
50 sets per month
Delivery Time :
40 days
Packaging Details :
Export standard packaging.
Certification :
CE、ISO9001、SGS
Description
XK-400 Rubber Mixing Mill For Smooth And Consistent Rubber Mixing Process
Product Overview

This advanced rubber mixing mill comprises several precision components including the Base, Rack, Gland, Rollers, Bearings, Transmission device, Lubrication device, Decelerator, Roller temperature adjustment device, Emergency shutdown device, and brake rigging.

Compatible Materials

Designed for processing a wide range of rubber materials including:

  • Food-grade silicone rubber
  • Industrial silicone rubber
  • Solid silicone rubber
  • Natural rubber
  • Nitrile rubber (MBR)
  • Styrene-butadiene rubber (SBR)
  • Reclaimed rubber
  • Butyl rubber
  • Ethylene propylene diene monomer rubber (EPDM)
  • Neoprene
  • General-purpose rubber
  • Polyurethane rubber (PUR)
  • Acrylate rubber (ACM)
  • Cis-butadiene rubber (BR)
  • Polysulfide rubber
  • Silicone rubber
  • Fluororubber
  • Chlorosulfonated polyethylene rubber

The open mill equipment can be used in conjunction with rubber and silicone vulcanizing machine equipment to vulcanize various rubber and silicone products.

XK-400 Model Rubber Mixing Mill with 1000mm Working Length and 37KW Motor Power for Efficient Rubber Processing XK-400 Model Rubber Mixing Mill with 1000mm Working Length and 37KW Motor Power for Efficient Rubber Processing XK-400 Model Rubber Mixing Mill with 1000mm Working Length and 37KW Motor Power for Efficient Rubber Processing XK-400 Model Rubber Mixing Mill with 1000mm Working Length and 37KW Motor Power for Efficient Rubber Processing XK-400 Model Rubber Mixing Mill with 1000mm Working Length and 37KW Motor Power for Efficient Rubber Processing XK-400 Model Rubber Mixing Mill with 1000mm Working Length and 37KW Motor Power for Efficient Rubber Processing XK-400 Model Rubber Mixing Mill with 1000mm Working Length and 37KW Motor Power for Efficient Rubber Processing XK-400 Model Rubber Mixing Mill with 1000mm Working Length and 37KW Motor Power for Efficient Rubber Processing XK-400 Model Rubber Mixing Mill with 1000mm Working Length and 37KW Motor Power for Efficient Rubber Processing XK-400 Model Rubber Mixing Mill with 1000mm Working Length and 37KW Motor Power for Efficient Rubber Processing XK-400 Model Rubber Mixing Mill with 1000mm Working Length and 37KW Motor Power for Efficient Rubber Processing XK-400 Model Rubber Mixing Mill with 1000mm Working Length and 37KW Motor Power for Efficient Rubber Processing
Technical Structure

The main working components consist of two hollow or drilled rollers rotating inwards in opposite directions. The front roller (operator side) can be moved horizontally back and forth manually or electrically to adjust the roller gap, while the rear roller remains fixed. Both rollers are typically the same size but rotate at different speeds, creating strong shearing action for effective plasticizing or mixing.

Rollers are manufactured from LTG-H safety chilled cast iron with surface hardness of HS 68-75, featuring smooth ground surfaces. The hollow rollers allow for steam or cooling water circulation to precisely adjust temperature according to processing requirements.

Technical Specifications
Mode XK-160 XK-230 XK-250 XK-300 XK-360 XK-400 XK-450 XK-560 XK-550B XK-660
Working Diameter of Rolls (mm) 160 230 250 300 360 400 450 560/510 550 660
Working Length of Rolls (mm) 320 615 620 750 900 1000 1200 1530 1500 2130
Front Roll Surface Speed (m/min) 8.95 10.21 14.1 15.1 16.25 18.65 24.26 27.72 27.94 28.6
Friction Ratio 1:1.35 1:1.19 1:1.17 1:1.25 1:1.25 1:1.27 1:1.27 1:1.2 1:1.22 1:1.24
Max. nip (mm) 4.5 7 8 10 10 10 15 15 15 15
Capacity per Batch (kg) 1-2 6-10 8~15 15~20 20~25 18-35 25-50 35~50 50~60 165
Motor Power (KW) 5.5 15 18.5 22 30 37 55 90 110 245
Dimensions: (L × W × H)(mm) 1380×860×1320 2400×1000×1400 3400×1500×1500 3400×1500×1550 3780×1850×1750 4350×1850×1785 5200×2380×1840 5845×2284×1978 5870×2475×2045 7465×3662×2080
Key Advantages
High-Efficiency Mixing Performance
  • Dual rollers rotating at different speeds (1:1.09 to 1:1.35 ratio) generate strong shear forces for thorough mixing
  • Large working diameters (160mm - 710mm) and widths (320mm - 2200mm) accommodate batch sizes from 1kg to 300kg
Precise Temperature Control

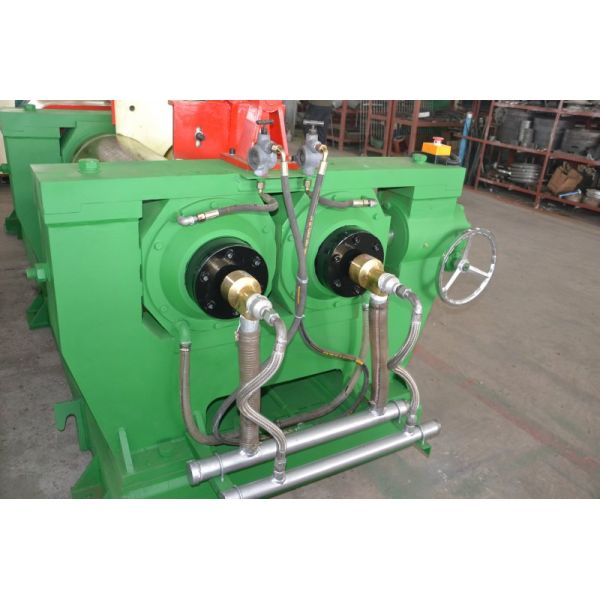

  • Hollow rollers enable steam or cooling water circulation for precise temperature regulation (30°C - 200°C)
Durable Construction
  • Alloy chilled cast iron rollers with surface hardness HS 68-75 for wear and corrosion resistance
  • One-piece base and reinforced frame provide stability during high-load operations
Enhanced Safety Features
  • Three-layer safety protection system
  • Automatic overload shutdown system prevents motor burnout
  • Breakable safety shear pins protect rollers from excessive pressure
  • Emergency braking device with response time under 0.5 seconds
Wide Material Compatibility
  • Processes over 20 types of rubber materials including food-grade silicone, fluororubber, and EPDM
  • Suitable for automotive, medical, footwear, and various industrial applications
User-Friendly Operation
  • Manual or electric roll gap adjustment (up to 15mm) for different material thicknesses
  • Ergonomic design with centralized control panels for intuitive operation
XK-400 Model Rubber Mixing Mill with 1000mm Working Length and 37KW Motor Power for Efficient Rubber Processing XK-400 Model Rubber Mixing Mill with 1000mm Working Length and 37KW Motor Power for Efficient Rubber Processing
Company Profile

Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd, located at Kangting Road No. 1, Huangdao New District, Qingdao City, is a specialized high-tech enterprise in rubber machinery production. The company holds ISO9001:2015 quality management system certification, European Union CE certification, and Switzerland SGS certification.

Industry Coverage
  • Tire manufacturing
  • Rubber conveyor belt production
  • Various rubber products
  • Tire refurbished manufacturing
  • Waste tire recycling
Main Equipment Portfolio
  • Rubber Kneader
  • Rubber Mixing Machine
  • Rubber Vulcanizing Press
  • Batch Off Cooler
  • Rubber Calender
  • Waste Tire Crusher
  • Rubber Extruder
  • Rubber Strainer

Our products are exported to over 50 countries and regions including Britain, Switzerland, USA, Germany, Brazil, Singapore, Malaysia, India, Russia, Ukraine, Uzbekistan, and Kazakhstan, earning consistent praise and long-term cooperation from domestic and international customers.

Quality Commitment
  • Every component undergoes strict quality inspection before storage
  • All products undergo overload trial running before shipment
  • Plate Vulcanizing Press tested for 24 hours under 1.25 times rated working pressure
  • Rubber Mixing Mill tested with 1.1 times rated mixing capacity for 20 minutes
  • Comprehensive free technical support for all products
  • 3-year warranty for main parts, 1-year warranty for wearing parts
  • Immediate remote support with on-site engineer dispatch if required
XK-400 Model Rubber Mixing Mill with 1000mm Working Length and 37KW Motor Power for Efficient Rubber Processing
Our Services
  • Custom machine design with engineering drawings for customer confirmation
  • Production progress photos provided for customer tracking
  • Complete documentation including packing list, commercial invoice, and bill of lading
  • Free technical documentation: foundation DWG, installation drawings, user guides, maintenance manuals, and part drawings
  • Overseas engineer services and operator training
Frequently Asked Questions
What does your factory do regarding quality control?

We implement comprehensive quality control throughout production. Every machine undergoes full assembly and rigorous testing before shipment.

What's the machine quality guarantee?

Quality guarantee period is one year. We use world-renowned brand components to ensure optimal machine performance.

Are you able to give installation and commissioning overseas? How long will it take?

Yes, we provide overseas service and technical support (customer covers installation costs). Small machines typically require 2-3 days, while large production lines take approximately 30 days.

How can I trust you to deliver the right machine as I ordered?

We strictly adhere to confirmed order specifications. Our company culture prioritizes innovation, quality, integrity, and efficiency. We maintain successful partnerships with world-renowned rubber production manufacturers and can arrange factory visits for verification.

How can we visit your facility?

We are located in Qingdao City, Shandong province, China. The nearest airport is Qingdao Jiaodong Airport. We provide airport pickup services for visiting clients.
