Specifications
Brand Name :
SFC
Certification :
CE, ISO
Place of Origin :
Qingdao, China
MOQ :
1 set
Price :
US$1,700.00-3,000.00
Payment Terms :
T/T,L/C
Supply Ability :
150 set/year
Delivery Time :
25-35 days
Description
Rubber Sheet Cutting Machine / Rubber Cutter
Basic Information
Model No.: XQL-125
Control Type: PLC
Automatic Grade: Semi-Automatic
Power Source: Electric
Type: Rubber Cutting Machine
Cutting Width: 760mm
Rated Cutting Force: 125kN
Cutting Stroke: 680mm
Time Taken by The Stroke: 14-16s
Type of General Rubber Machinery: Rubber Cutter
Type of Tire Machinery: Rubber Regeneration Machinery
Certification: CE, ISO
Transport Package: in Bulk
Specification: national standard
Trademark: SFC
Origin: China
HS Code: 8477800000
Production Capacity: 50 sets/Month
Product Overview
The Rubber Sheet Cutting Machine is designed for cutting natural rubber, synthetic rubber, and other plastic materials. It is particularly suitable for installation near rubber mixers to cut small pieces of rubber efficiently. The machine includes a working track for convenient rubber feeding.
PLC Control Rubber Cutting Machine with 125kn Cutting Force and CE Certified Bale Cutter

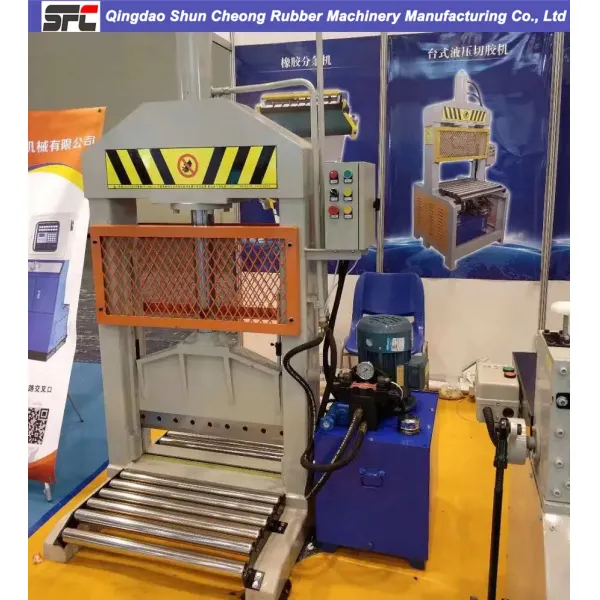

Machine Structure
This bale cutter primarily consists of a rubber knife, frame, cylinder, base, auxiliary table, hydraulic system, and electric system. The base features a lead casting under the rubber knife to protect the knife edge. Operation involves placing raw rubber under the knife and pressing the start button to initiate cutting. Two limit switches on the frame control the reversal valve for directional changes and provide cylinder protection.
Key Features
  • Low noise operation
  • Constant temperature maintenance
  • Automatic pressure maintaining and pressure supplement
  • Solid construction with rational design
  • High production efficiency with easy operation
  • Hydraulic system controlled cutting knife with reciprocating motion
  • CE standard and ISO9001 certified
Technical Specifications
Type XQL-80 XQL-120 XQL-125
Width (mm) 660 760 760
Stroke (mm) 680 680 780
Total Pressure of Oil Cylinder (KN) 80 (approx.) 120 (approx.) 125 (approx.)
Time Taken by the Stroke 14-16 13-16 14-16
Power (KW) 5.5 5.5 5.5
Overall Dimensions (LxWxH) (mm) 1800x600x2450 2300x1500x2530 2400x1500x2530
PLC Control Rubber Cutting Machine with 125kn Cutting Force and CE Certified Bale Cutter
