Rubber Sheet Cooler Machine, Films Cooler, Batch off Cooler XPG-900

Company Introduction:
1.20 years on batch off cooler manufacturing and exporting.
2. Delivery within 35 days.
3. Safety wood or plywood crates packing.
4. Full transportation insurance.
5. Sell to 126 countries on 6 continents.
6. One-stop rubber machinery solution in Qingdao Shun Cheong.

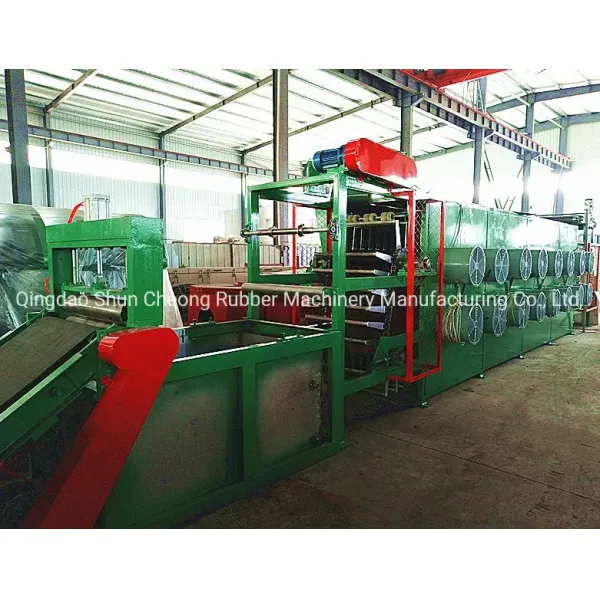

This batch-off cooler can cooling the rubber sheets from high temperature to room temperature, and applicable to any kinds of rubber materials.


Characteristic:
1. The rubber sheet cooling machine take off adopts steel conveying rollers, equipped with printer and slitter. The take-off and lifting device are driven by a common AC inverter motor. The conveying speed ID adjustable.

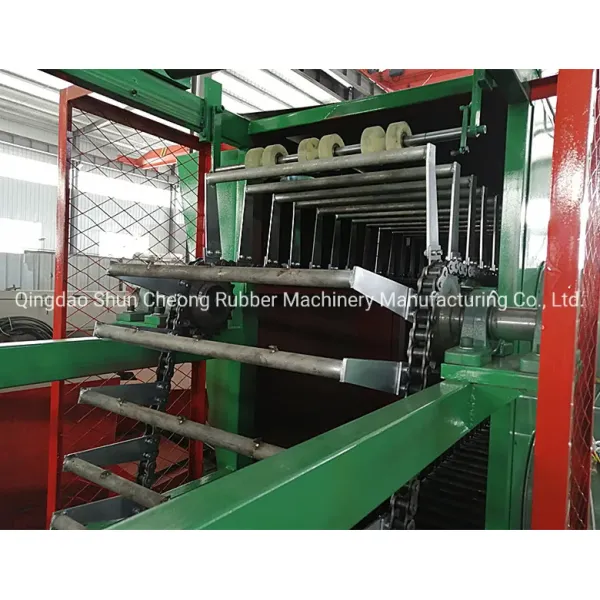

2. There are two types of hanging bar driving devices. For XPG(III)-900, when the piston bars of two side oil cylinders extend, they push the hanging bar. The one way bearing keeps the hanging bar standing when the oil cylinder cylinder piston bar retracts, therefore the hanging bar carry out intermittent movement. Other one is driven by one AC inverter motor. The speed of hanging bar is synchronous with the take-off and lifting device.
3. The sheet is uniformly coated with the lubricator by dipping without polluting the environment. Its cooling effect is better than the spraying.

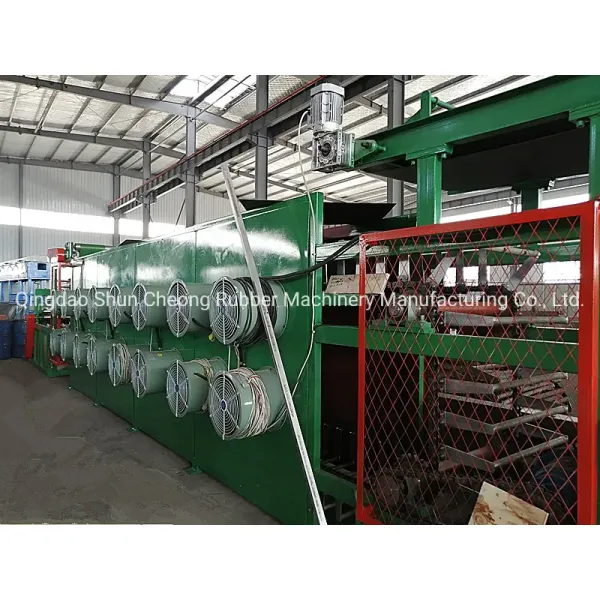

4. The hanging up area is fully closed, which adopts the blower to blow the sheet at a slant. So it improves the air flowing direction and cooling effect.
5. The robot in the take-off is advanced in China. The take-off can be controlled automatically.
6. The electric control system adopts a reliable and automatic PC.


NOTES:
1. The rubber batch-off cooler can be designed as a floorid construction or an over-head construction. The sheet can be output on the first floor or on the second floor or both the first and the second floor.
2. The rubber batch-off cooler is a conbined construction. Customer can add or reduce the middle support as required.
3. Customer can select the transverse strip cutter and the strip slitter according to the processing requirements.
