Description
Product Overview

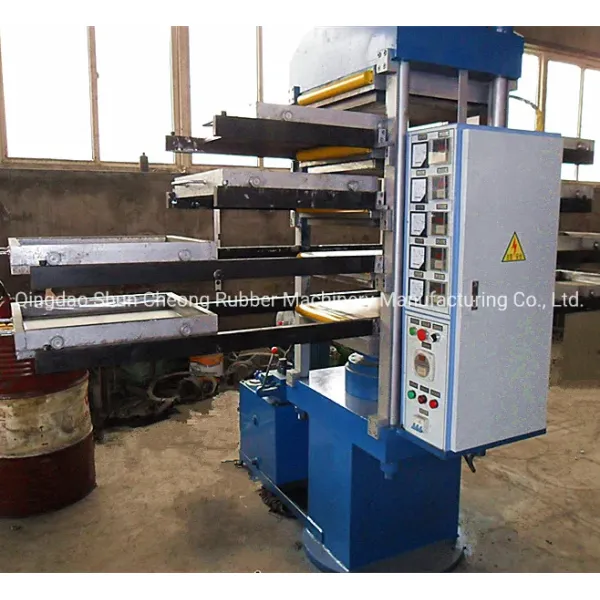

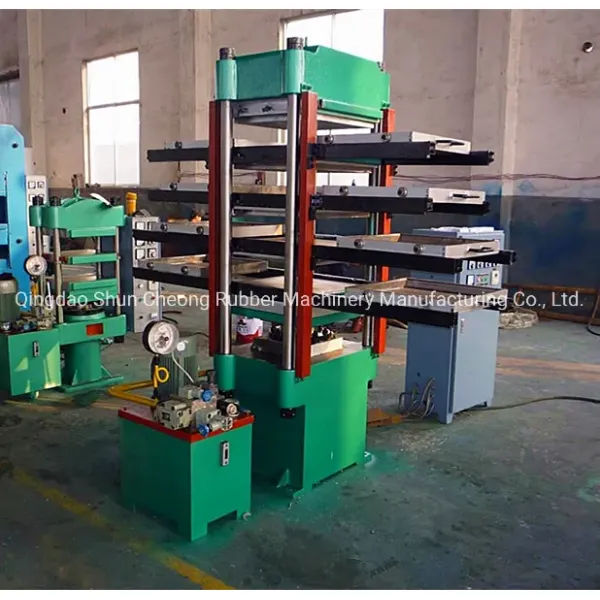

The XLB-D550X550X4 Rubber Tiles Vulcanizing Press is an automatic horizontal press designed for manufacturing rubber gym floor tiles and bricks. This CE and ISO certified machine features precise control and efficient production capabilities.
Technical Specifications
Model XLB-D550X550X4
Total Pressure 0.60 MN
Plate Size 550*550*45 mm
Daylight 150 mm
Daylight Number 4
Piston Stroke 400 mm
Overall Size 1650*600*1600 mm
Production Capacity 50 Sets/Year
Key Features
  • ISO 9001:2015, CE, and SGS certified
  • Oil-free operation prevents contamination
  • Enhances rubber heat resistance properties
  • Specialized for rubber bricks and tiles production
  • Customizable tonnage and size configurations
  • One-year comprehensive warranty
  • Manual push-out device for easy product removal
  • Compatible with molds from 20mm to 75mm thickness
  • Optional rubber mixer available
  • Compact footprint requires only 8m³ flooring area
Production Capacity
Standard configuration includes 4 working layers capable of producing 8 rubber floor pieces per hour. Working layers can be customized according to production requirements.
Machine Gallery
Rubber Tiles Vulcanizing Press for Gym Floor Tiles Rubber Tiles Vulcanizing Press for Gym Floor Tiles Rubber Tiles Vulcanizing Press for Gym Floor Tiles Rubber Tiles Vulcanizing Press for Gym Floor Tiles
Model Comparison
Model XLB-D/Q350X350X1(2) XLB-D/Q400X400X2(4) XLB-D/Q550X550X2(4) XLB-D/Q650X650X2(4) XLB-D/Q750X850X2(4)
Nominal Pressure (MN) 0.25 0.50 0.60/0.80 1.00 1.60
Plate Size (mm) 350*350 400*400 550*550 650*650 750*850
Working Layers 1(2) 2(4) 2(4) 2(4) 2(4)
Weight (kg) 800 1300 1500 3500 6500(7500)
Quality Assurance
  • All components undergo strict quality inspection before storage
  • Complete overload testing: 24-hour pressure testing at 1.25* rated working pressure
  • Comprehensive technical support included
  • 3-year warranty on main parts, 1-year on wearing parts
  • Rapid response service for quality issues
