1200mm Width Automatic Grade Rubber Belt Joint Machine with 16.5Kw Motor Power
1200mm Width Automatic Grade Rubber Belt Joint Machine with 16.5Kw Motor Power
1200mm Width Automatic Grade Rubber Belt Joint Machine with 16.5Kw Motor Power
1200mm Width Automatic Grade Rubber Belt Joint Machine with 16.5Kw Motor Power
1200mm Width Automatic Grade Rubber Belt Joint Machine with 16.5Kw Motor Power
1200mm Width Automatic Grade Rubber Belt Joint Machine with 16.5Kw Motor Power
Specifications
Brand Name :
SFC
Certification :
CE, ISO
Place of Origin :
Qingdao, China
MOQ :
1 set
Price :
US$5,000.00-10,000.00
Payment Terms :
T/T,L/C
Delivery Time :
25-35 days
Description

Basic Info.

Model NO.ZLJ-1200X830
CustomizedCustomized
Automatic GradeAutomatic
StructureHorizontal
Power Frequency (Hz)50Hz
Motor Power (Kw)16.5
Applied Belt Width (mm)1000
Weight<50 Tons
Power10~100kw
Voltage380V
Using LifeMore Than 15 Years
TypeGeneral Rubber Machinery
UsageMaterial Processing Machine
Type of Tire MachineryRubber Regeneration Machinery
Transport PackageNo Packing or as The Customer's Request
SpecificationAccording to The Customer's Requirements
TrademarkSFC
OriginQingdao, China
HS Code8477800000
Production Capacity50 Sets/Month

Product Description

Conveyor Belt Joint Vulcanizing Press, Rubber Vulcanizing Press, Vulcanizing Press

1200mm Width Automatic Grade Rubber Belt Joint Machine with 16.5Kw Motor Power

Press Introduction

1. Passed ISO9001: 2008, CE, SGS certificate.

2. Electrical heating and water press method.

3. Heating time ≤ 40min.

4. Splicing belt and make endless belt.

5. According to equipment: Fast water to cold and nature cooling.

6. With more than 40 years of history in the rubber machine industry.

Feature and Details about this belt jiont vulcanizing press:

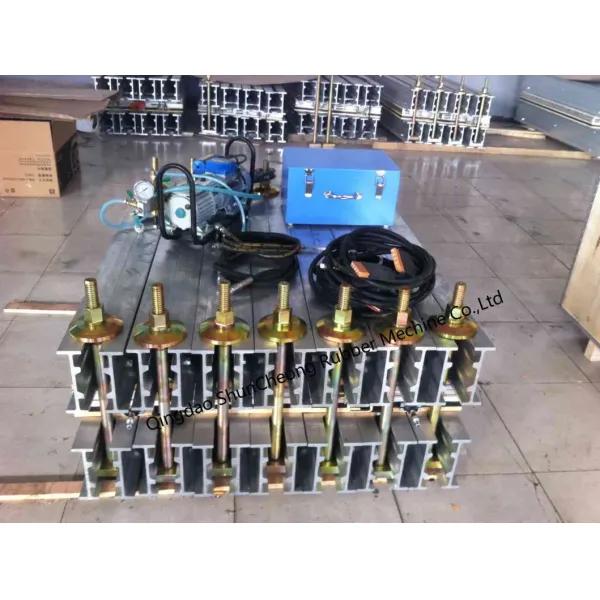

1. The rubber vulcanizing machine has light weight; About one person can move it. It consists of the following components: Rack / Pressure Bracket, fastening device, sizing block, screw, nut, gasket, high-pressure hose, hydraulic test pump, thermal baffle, on the heating plate, secondary cable, electric cabinet, cables, down the heating plate, Suppress water bag.

2. The material of main machine components made of aluminum alloy, light weight, easy installation and removal, easy to handle.

3. Suppress water bag(its function is increase pressure) technology has reached international advanced level, it has following characters:
(1)Light weight, it is the 1/4 weight of the ordinary.

(2)Large expansion amplitude.

(3)Uniform pressure and the pressure can reach 3.0MPa.

(4)No water leakage and long life.

4. The electric cabinet can automatic rise temperature, automatic control temperature and calculate time.

Compare Older and New Water Bladder

New Water Bladder is lighter and thinner than older ,it is easy to lift it by person

Model 		Applied Width(mm) motor power Dimension(LxWxH)(mm) Weight(KG)
ZLJ-800x830 800 11.2 1280x830x630 650
ZLJ-1000x830 1000 14.1 1480x830x630 700
ZLJ-1200x830 1200 16.5 1680x830x710 900
ZLJ-1400x830 1400 18.6 1930x830x760 1100
ZLJ-1600x830 1600 21.1 2140x830x800 1320
ZLJ-1800x830 1800 23.3 2300x830x850 1480
ZLJ-2000x830 2000 25.6 2600x830x950 1860

1200mm Width Automatic Grade Rubber Belt Joint Machine with 16.5Kw Motor Power
1200mm Width Automatic Grade Rubber Belt Joint Machine with 16.5Kw Motor Power
Packaging

Equipment painting completed before delivery, and then wrapped with stretch film, avoid rubbing the paint off the surface, wooden packaging can be customized, key parts, such as electronic control box, will be wrapped by shockproof packaging materials, and then packed in wooden cases.

1200mm Width Automatic Grade Rubber Belt Joint Machine with 16.5Kw Motor Power

FAQ

1. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production. Every machine will be fully assembled and carefully tested before shipment.

2. What's the machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.

3. Are you able to give installation and commissioning overseas?How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation. Small machine usually takes within 2~3 days. Big production line usually takes about 30 days.

4. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is innovation,quality,integrity and efficiency. Also we have had many good cooperation with world famous rubber production manufacturers.

If you come to our factory, we can show the user around us.

5. How can we go to your side?

We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao Jiaodong airport. We will pick up you at the airport.

Before leaving factory, this plate vulcanizing press needs to pass 24 hours' pressure test, pressure maintaining to test the bearing of the hydro-cylinder and piston stroke and guarantee no oil leakage and seeping to avoid unnecessary quality problems.

We can design and manufacture all kinds of non-standard plate vulcanizing press according to the customers' definite requirements.

1200mm Width Automatic Grade Rubber Belt Joint Machine with 16.5Kw Motor Power
1200mm Width Automatic Grade Rubber Belt Joint Machine with 16.5Kw Motor Power
