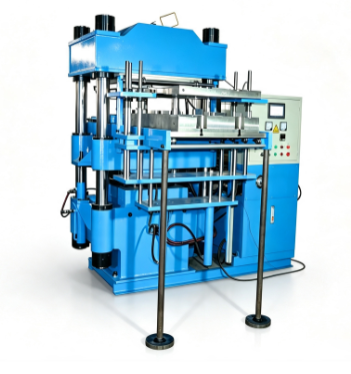

PLC Control 2RT/3RT Rubber Vulcanizing Press with 1.00 MN Total Pressure and Electric Heating for Silicone Products
PLC Control 2RT/3RT Rubber Vulcanizing Press with 1.00 MN Total Pressure and Electric Heating for Silicone Products
PLC Control 2RT/3RT Rubber Vulcanizing Press with 1.00 MN Total Pressure and Electric Heating for Silicone Products
PLC Control 2RT/3RT Rubber Vulcanizing Press with 1.00 MN Total Pressure and Electric Heating for Silicone Products
PLC Control 2RT/3RT Rubber Vulcanizing Press with 1.00 MN Total Pressure and Electric Heating for Silicone Products
PLC Control 2RT/3RT Rubber Vulcanizing Press with 1.00 MN Total Pressure and Electric Heating for Silicone Products
PLC Control 2RT/3RT Rubber Vulcanizing Press with 1.00 MN Total Pressure and Electric Heating for Silicone Products
PLC Control 2RT/3RT Rubber Vulcanizing Press with 1.00 MN Total Pressure and Electric Heating for Silicone Products
PLC Control 2RT/3RT Rubber Vulcanizing Press with 1.00 MN Total Pressure and Electric Heating for Silicone Products
PLC Control 2RT/3RT Rubber Vulcanizing Press with 1.00 MN Total Pressure and Electric Heating for Silicone Products
PLC Control 2RT/3RT Rubber Vulcanizing Press with 1.00 MN Total Pressure and Electric Heating for Silicone Products
PLC Control 2RT/3RT Rubber Vulcanizing Press with 1.00 MN Total Pressure and Electric Heating for Silicone Products
Specifications
Packaging Details :
No Packing or as The Customer's Request
Brand Name :
SFC
Certification :
CE, ISO
Place of Origin :
Qingdao, China
MOQ :
1 set
Price :
US$5,000.00-15,000.0
Payment Terms :
T/T,L/C
Supply Ability :
60set/Month
Delivery Time :
25-35 days
Model Number :
XLB-600X600
Description
2RT Rubber Hydraulic Vulcanizing Press Machine
Product Overview

Model XLB-600X600X1 Rubber Vulcanizing Press designed for silicone product manufacturing including phone cases, watch straps, and various silicone accessories.

Key Specifications
Model: XLB-600X600X1
Certifications: CE, ISO 9001:2015, SGS
Total Pressure: 1.00 MN
Main Motor Power: 2.2 Kw
Plate Unit Area Pressure: 2.77 MPa
Overall Dimensions: 1880*720*1680 mm
Heating Methods: Electricity, Oil, Steam
Production Capacity: 50 Sets/Year
Origin: China
Applications

This automatic hydraulic vulcanizing press is ideal for vulcanization of various silicone products including silicone bracelets, mobile phone cases, watch straps, and other silicone accessories.

Main Features
  • Frame structure with upward pressing form for efficient operation
  • Oil cylinder made of nodular cast iron for enhanced compressive strength and wear resistance
  • Oil-proof rubber seal rings for effective sealing during operation
  • Combined oil pump system with precise control valve operation
  • Tubular electric-heating components reduce air pollution and maintain workshop cleanliness
  • PLC control system for automated operation
  • Rational structure design with safe and reliable performance
Technical Parameters
Parameter Type XLB-240*240*1/4 XLB-350*350*1/4 XLB-400*400*1/4 XLB-500*500*1/4 XLB-600*600*1/4 XLB-700*700*1/4 XLB-750*850*1/4 XLB-900*900*2Q
Total Pressure (MN) 0.15 0.25 0.5 0.63 1.00 1.20 1.60 2.00
Plate Distance (mm) 125 125 125 125 125 125 200 300
Working Layer No. 1-4 1-4 1-4 1-4 1-4 1-4 1-4 2
Unit Area Pressure of Hot Plate (Mpa) 2.60 2.04 3.13 2.52 2.77 2.45 2.51 2.47
Plunger Stroke (mm) 250 250 250 250 250/400 250 400 400
Heating Mode Electricity Electricity Electricity/Stream Electricity/Stream Electricity/Stream Stream Electricity/Stream Stream
Motor Power (KW) 2.2 2.2 2.2 2.2 2.2 2.2 3 5.5
Size (L*W*H) (mm) 1200*350*1300 1400*480*1380 1600*500*1480 1750*600*1540 1880*720*1680 2000*850*1750 2250*1200*2200 1400*900*2400
Quality Assurance

All parts undergo strict quality inspection before storage. Products undergo overload trial running before shipment, including pressure testing for 24 hours under 1.25 times the rated working pressure.

PLC Control 2RT/3RT Rubber Vulcanizing Press with 1.00 MN Total Pressure and Electric Heating for Silicone Products

PLC Control 2RT/3RT Rubber Vulcanizing Press with 1.00 MN Total Pressure and Electric Heating for Silicone Products

PLC Control 2RT/3RT Rubber Vulcanizing Press with 1.00 MN Total Pressure and Electric Heating for Silicone Products

PLC Control 2RT/3RT Rubber Vulcanizing Press with 1.00 MN Total Pressure and Electric Heating for Silicone Products

Warranty & Support

3-year warranty for main parts, 1-year warranty for wearing parts. Comprehensive technical support with remote assistance and on-site service when needed.

PLC Control 2RT/3RT Rubber Vulcanizing Press with 1.00 MN Total Pressure and Electric Heating for Silicone ProductsPLC Control 2RT/3RT Rubber Vulcanizing Press with 1.00 MN Total Pressure and Electric Heating for Silicone Products
