Automatic Production Line Waste Tire Rubber Powder Manufacturing Machine
Automatic Production Line Waste Tire Rubber Powder Manufacturing Machine
Automatic Production Line Waste Tire Rubber Powder Manufacturing Machine
Automatic Production Line Waste Tire Rubber Powder Manufacturing Machine
Automatic Production Line Waste Tire Rubber Powder Manufacturing Machine
Automatic Production Line Waste Tire Rubber Powder Manufacturing Machine
Specifications
Brand Name :
SFC
Model Number :
XKP
Certification :
CE, ISO
Place of Origin :
Qingdao, China
MOQ :
1 set
Price :
US$30,000.00-70,000.00
Payment Terms :
T/T,L/C
Delivery Time :
25-35 days
Description
Innovative New Technology Waste Tire Rubber Powder Manufacturing Machine
Product Overview
Advanced automated production line for converting waste tires into high-quality rubber powder with output ranging from 20-60 mesh and capacity of 500-1000kg/h.
Technical Specifications
Model: XKP
Voltage: 380V
Weight: <50 Tons
Power: 10-100kW
Service Life: ≥15 Years
Capacity: 500-1000kg/H
Rubber Powder Size: 20-60 mesh
Production Type: Semi-Automatic/Automatic
Certifications: CE, ISO9001:2008, SGS
Origin: Qingdao, Shandong, China

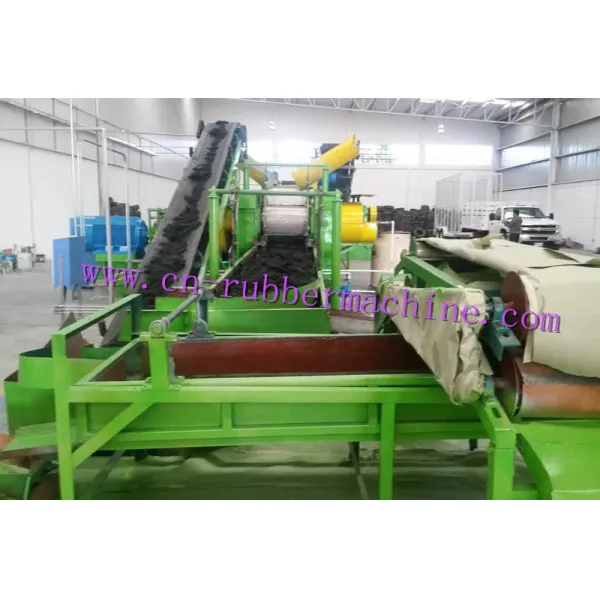

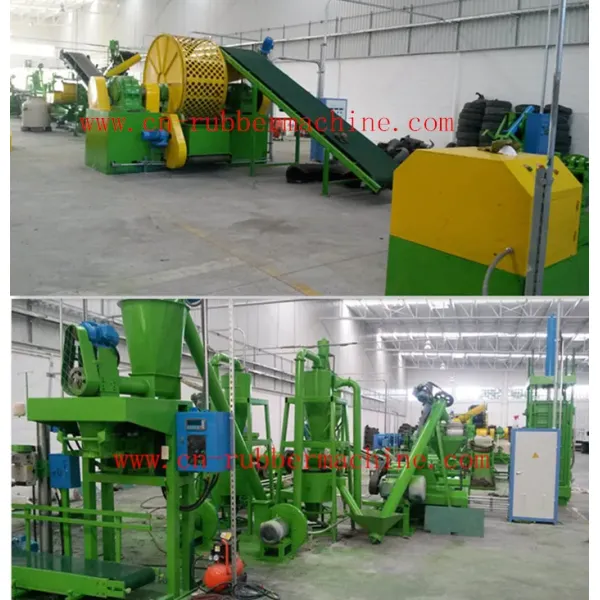

Automated Production Line Process
Waste Tires → Single Hook Debeader → Tire Cutter → Whole Tire Shredder → Rubber Crusher → Oscillating Screen, Conveyor Belt, Magnetic Plants → Fiber Separator → Fine Rubber Powder Pulverizer → Rubber Powder
Automatic Production Line Waste Tire Rubber Powder Manufacturing Machine Automatic Production Line Waste Tire Rubber Powder Manufacturing Machine
Rubber Crusher Features
  • Designed for crushing rubber and plastic materials
  • Rolls made of superior alloy chilled cast iron for enhanced durability
  • Hollow roll interior with spray-type temperature control for even surface temperature
  • Emergency pull-up equipment for operational safety
  • Convenient manual range adjustment with automatic crawl back swing function
  • Channel-bottom head design for easy transportation and maintenance

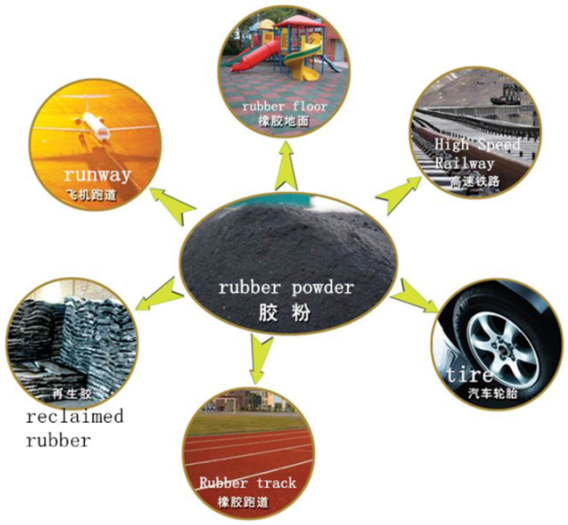

Rubber Powder Applications by Mesh Size
5-10 mesh: Runways, playgrounds, garden paths, sports surfaces, composite rubber floor tiles, artificial turf
10-20 mesh: Rubber floor tiles, plastic runways, sports courts, safety mats, gym mats
30 mesh: Insulation materials, waterproofing, shockproof applications, reclaimed rubber
40 mesh: Waterproof membranes, modified bitumen, carpet padding, various rubber products
60 mesh: Sleepers, rubber sheets, tire inner cushions, automotive applications
80 mesh: Modified asphalt, sealing strips, buffers, rubber components
100 mesh: Automotive tire materials, footwear, sports equipment
120 mesh: Plastic pipe insulation, automotive materials, chemical sealants
200 mesh: Building material coatings, automotive tires, rubber product manufacturing
Automatic Production Line Waste Tire Rubber Powder Manufacturing Machine
Technical Parameters
Type XKP-400 XKP-450 XKP-560
Front roll diameter (mm) 400 450 560
Rear roll diameter (mm) 400 (Groove roller) 450 (Groove roller) 510 (Groove roller)
Working length of rolls (mm) 600 650 800
Front roll surface speed (m/min) 17.32 23.2 25.56
Friction ratio 1:1.38 1:1.38 1:1.30
Max. nip (mm) 8 8 15
Motor power (kw) 45 55 75
Dimension (L*W*H) (mm) 3950*1800*1780 4770*1846*1835 5064*2284*1978
Automatic Production Line Waste Tire Rubber Powder Manufacturing Machine

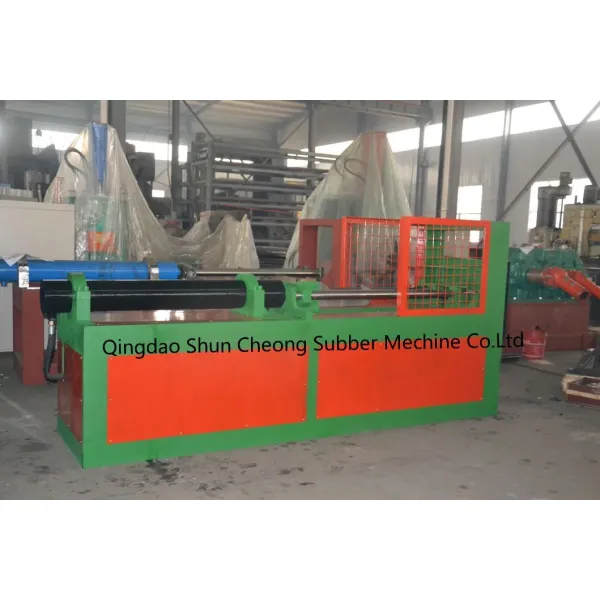

Single Hook Debeader LSJ-1200
Structural Features:
• Alloy welded cutter blade with hard wear-resistant surface
• Protective frame for enhanced safety during wire loop extraction
• Compact integrated motor and reducer design
• Minimal floor space requirement with convenient installation
Application: Pulling wire loops from waste tire beads
Automatic Production Line Waste Tire Rubber Powder Manufacturing Machine
